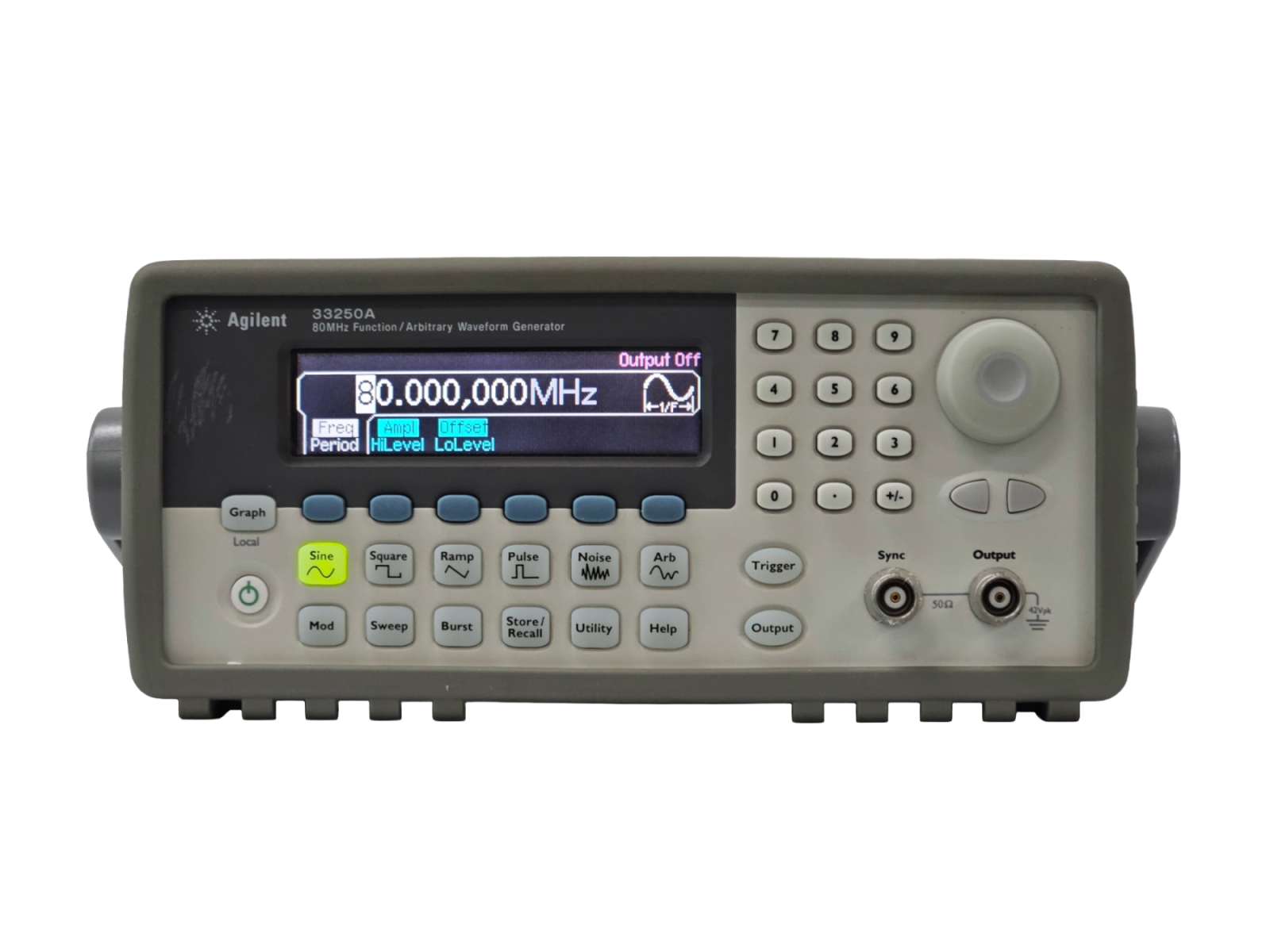

Agilent / Function Generator / 33250A
80MHz Function/Arbitrary Waveform Generator

80 MHz sine and square waveforms

Ramp, triangle, noise, DC and other waveforms

12-bit, 200 MSa/s, 64 Kpoint arbitrary waveforms

Pulse capability with variable edge

AM, FM, FSK modulation

GPIB & RS-232 interfaces

Output connector: BNC(f)

100-240 Vac, 50-60 Hz; 100-127 Vac, 50-400 Hz operation

Weight: 11 lb; Size: 104 mm (4.1 in)H x 255 mm (10.1 in)W x 374 mm (14.73 in)D
