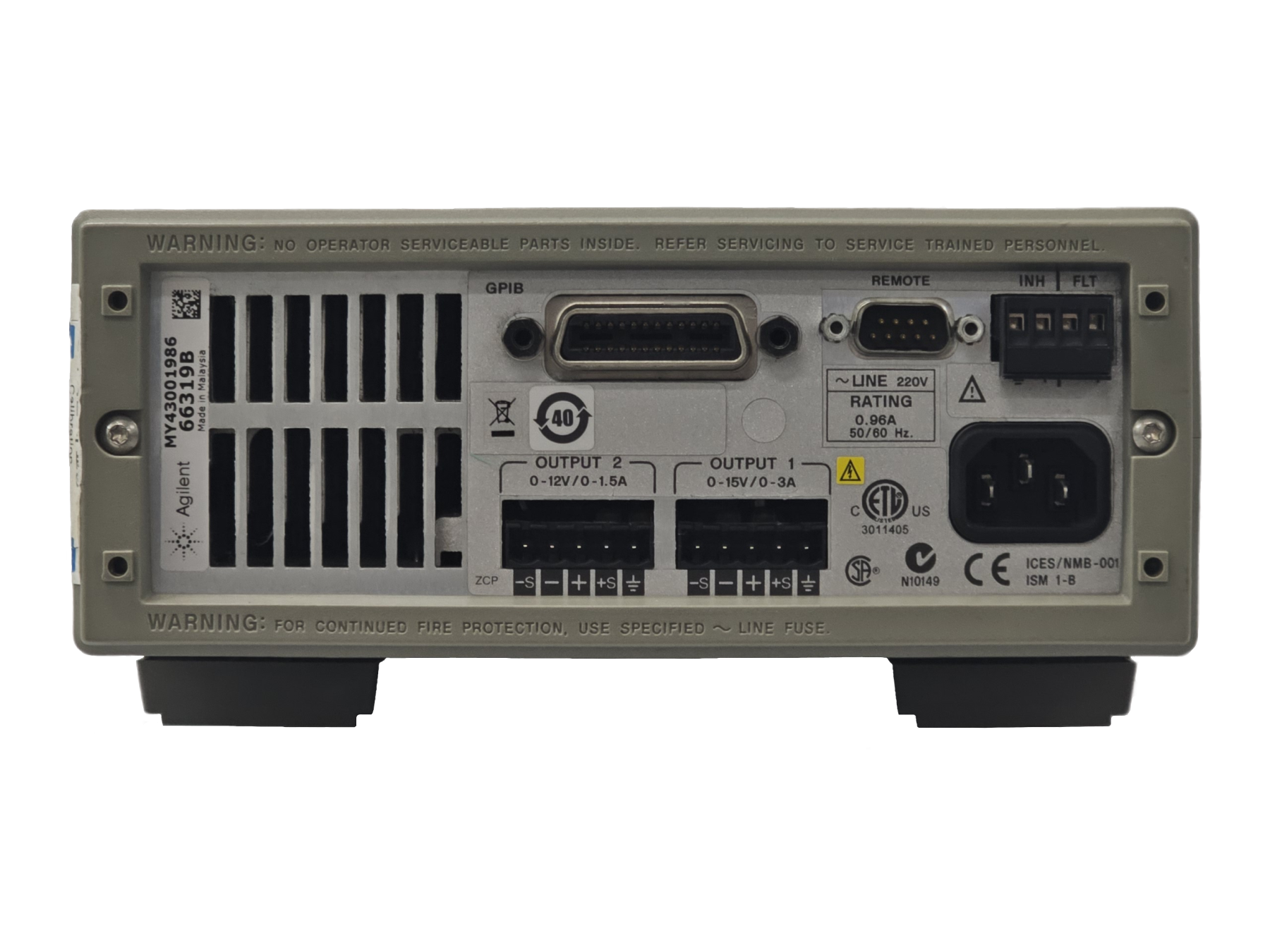

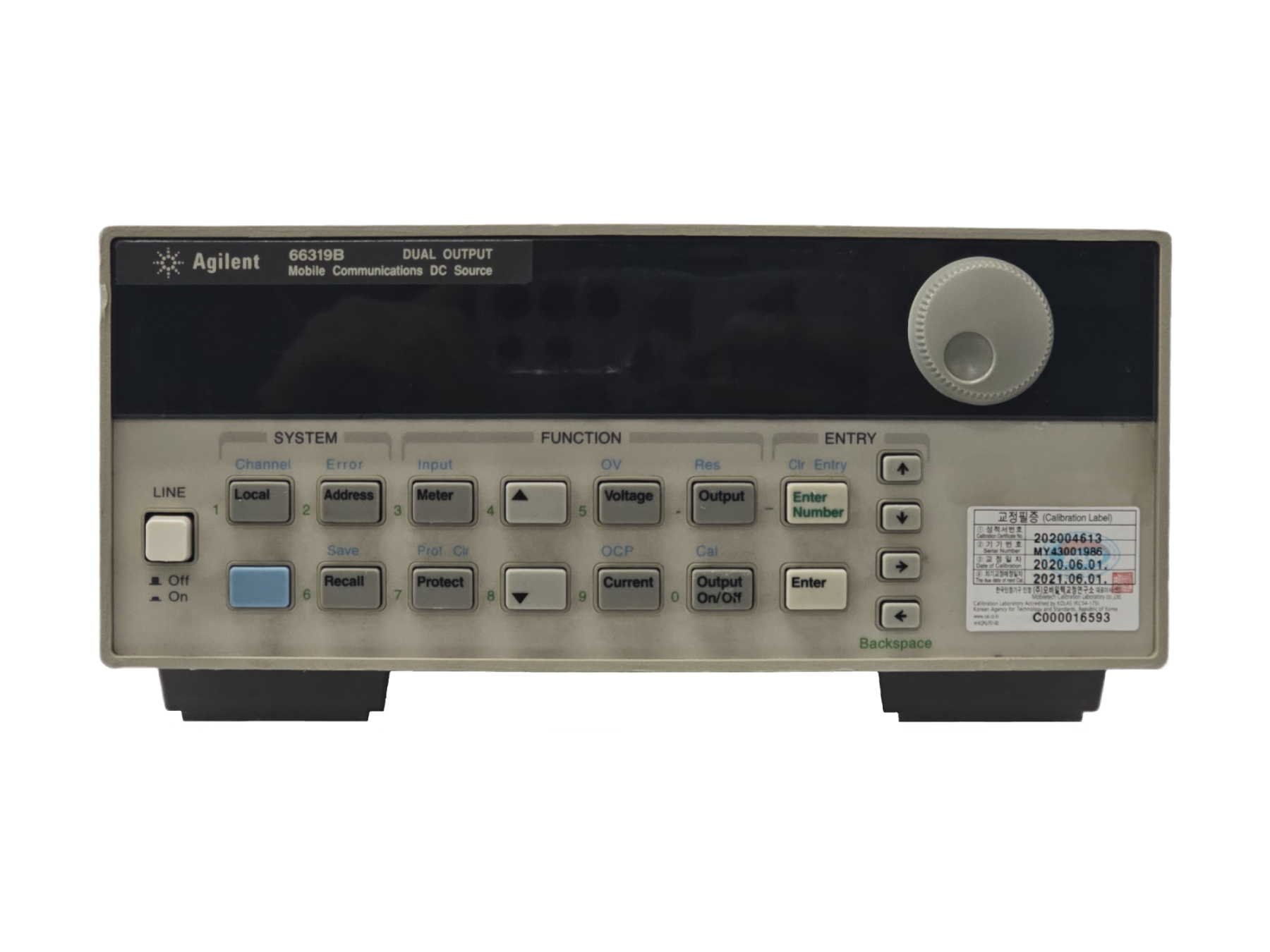

Agilent / Power Supply / 66319B

* Output Ratings
- Output 1 : 0 to 15 V , 0 to 3 A
- Output 2 : 0 to 12 V , 0 to 1.5A
- Peak Current for up to 7 ms : 5 A

* Programming Accuracy at 25°C ±5°C
- Voltage : 10 mV
- Current : (+) 1.33 mA

* DC Readback Accuracy
- Voltage : 0.03% + 5 mV
- Current (-3 A to + 5 A) : 0.2% + 0.5 mA
- Current (-1 A to + 1 A) : 0.1% + 0.2mA
- Current (-20 mA to + 20 mA) : 0.1% + 2.5 µA

* Transient Response
- 40 mV drop, <20 µs transient response time
