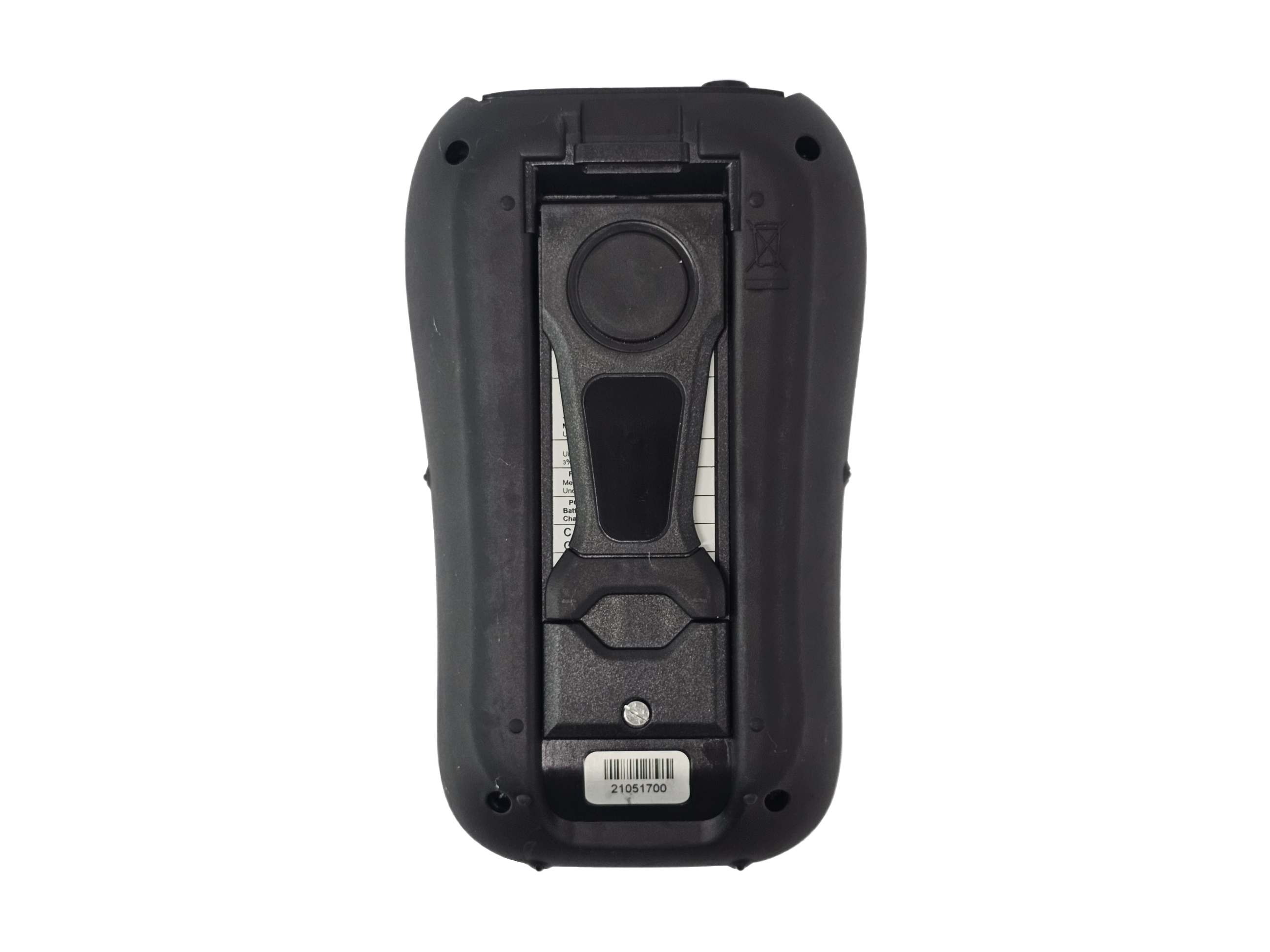

METREL MI-2883 Power Quality Analyzer

METREL / Power Quality Analyzer / MI-2883

Voltage: TRMS, peak, crest factor (3-channel); Current: TRMS, peak, crest factor (4-channel); Power (active, reactive, apparent); Power measurements fully compliant with IEEE 1459 (active, non active, fundamen­t al, harmonic, load unbalance) and classic (vector or arithmetic) method; VFD (Variable Frequency Drives); Unbalance, flicker measurement; Harmonic and interharmonic analysis up to 50th harmonics, THD measurement; Energy (active, reactive, generated, consumed); Capturing and recording of power supply events (shutdowns, interruptions, swell s, dips); Power quality analysis according to EN 50160; Recording up to 7 adjustable alarms; Temperature measurement; Power factor cos fi.
