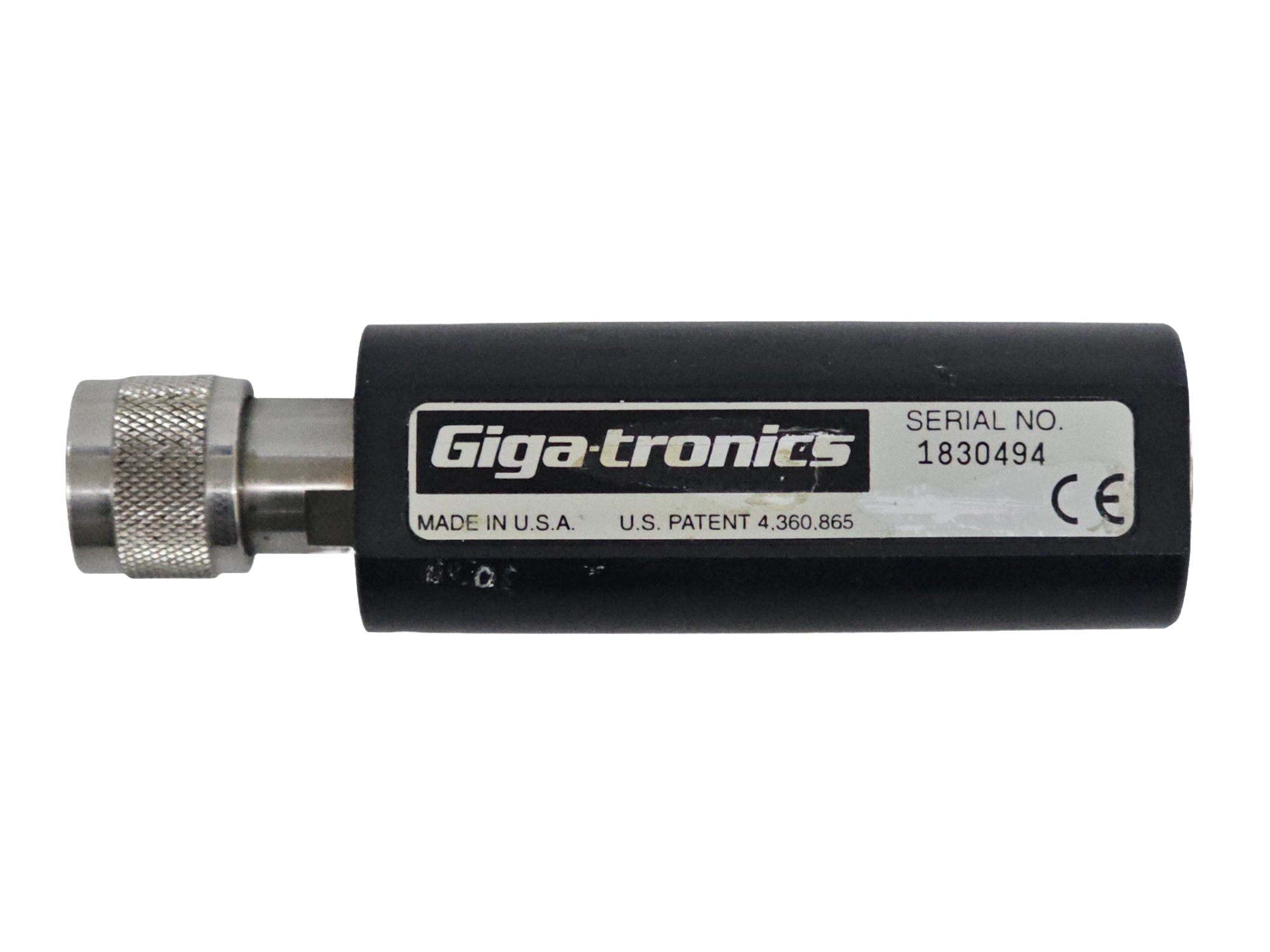

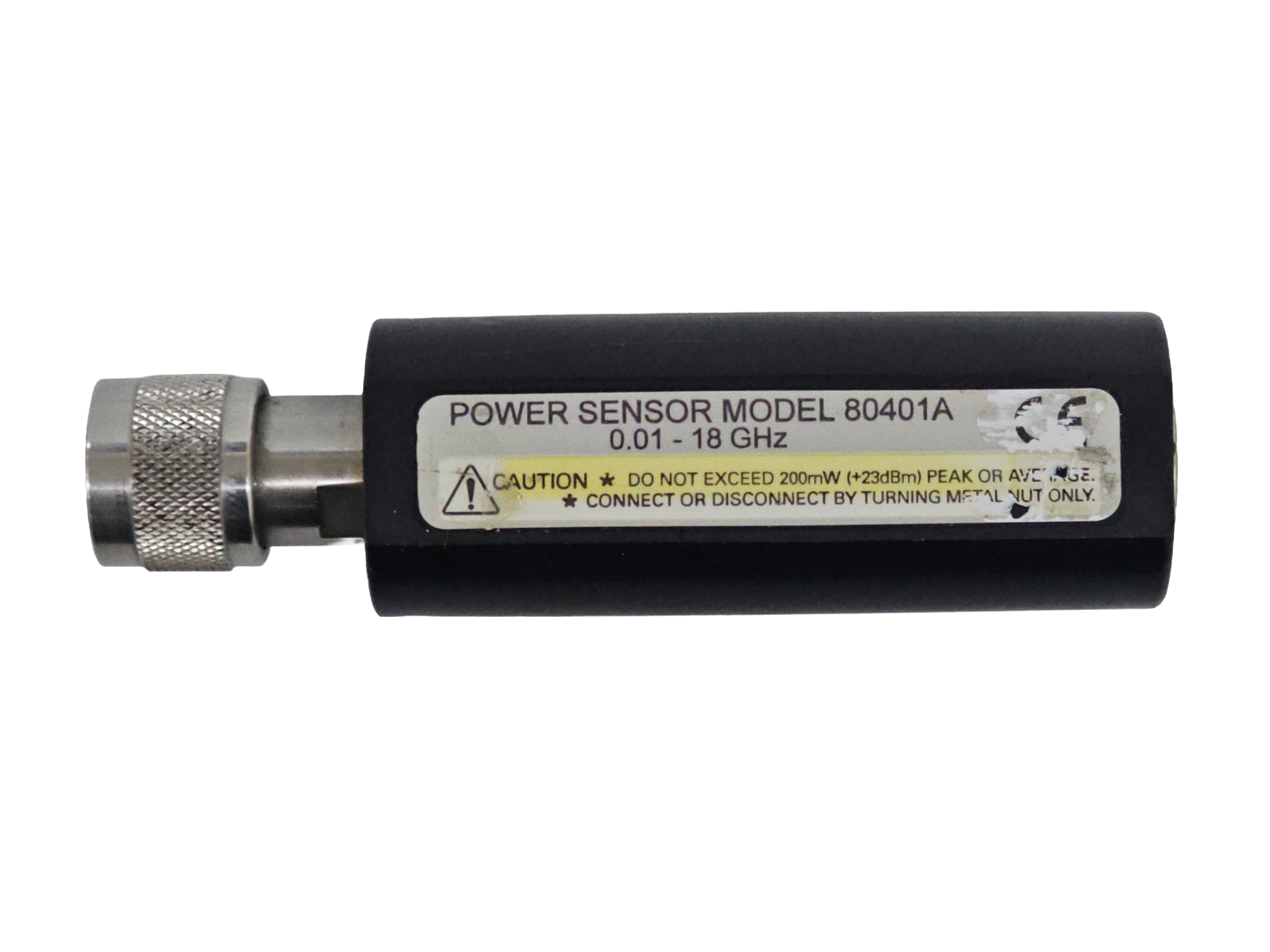

Gigatronics 80401A Power Sensor

Gigatronics / Power Sensor / 80401A

200 mW Modulation Power Sensors

Frequency Range/Power Range :  10 MHz to 18 GHz
–67 to +20 dBm

Maximum Power : +23 dBm (200 mW)

Power Linearity (Frequency > 8 GHz) :
–67 to –20 dBm: ±0.00 dB
–20 to +20 dBm: ±0.05 dB/10 dB

RF Connector : Type N(m) 50Ω

Length  :  114.5 mm   (4.5 in)
Diameter : 32 mm (1.25 in)
Weight :  0.18 kg (0.4 lb)

VSWR : 1.12: 0.01 - 2 GHz
1.22: 2 - 12.4 GHz
1.29: 12.4 - 18 GHz
