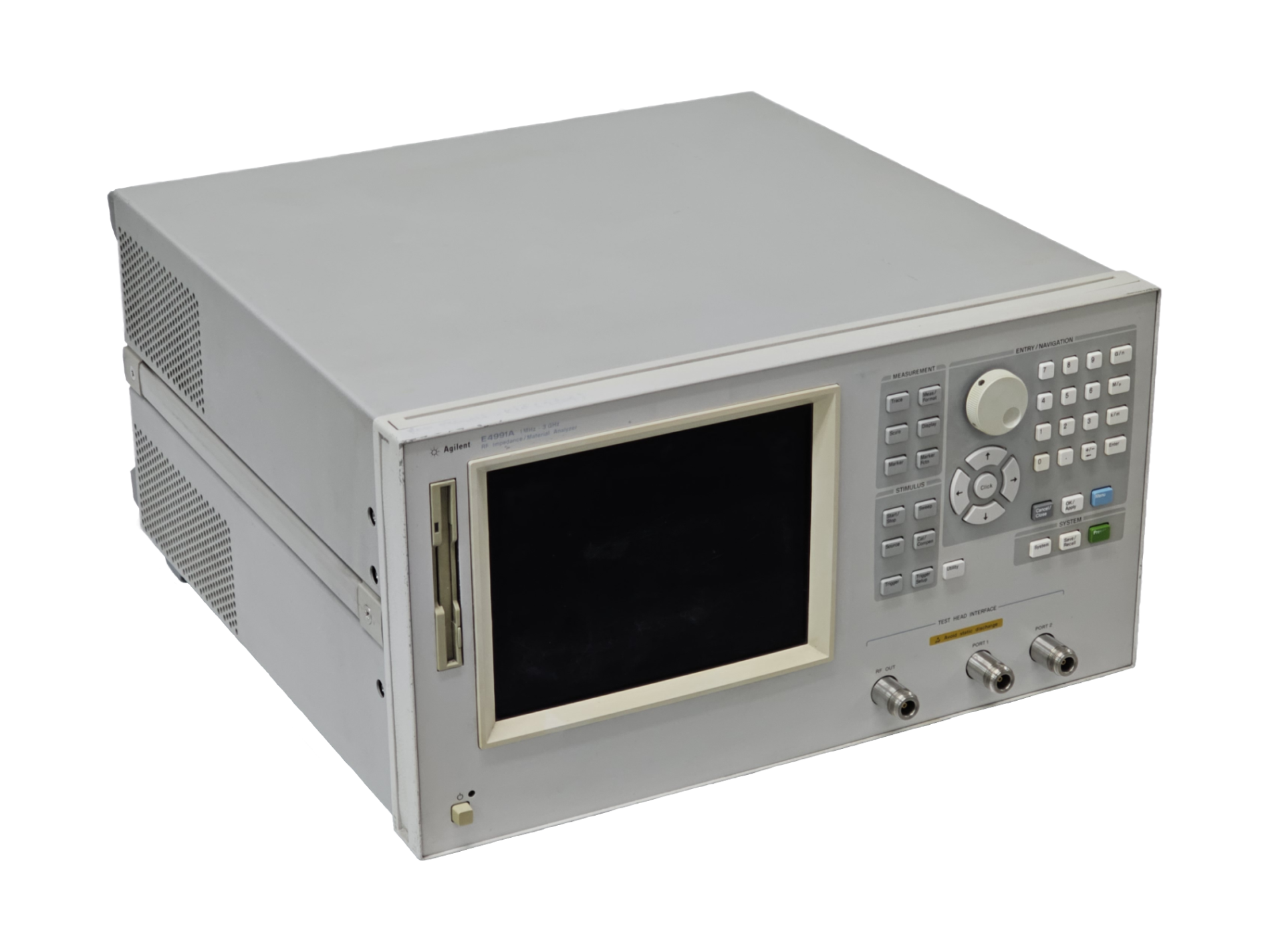

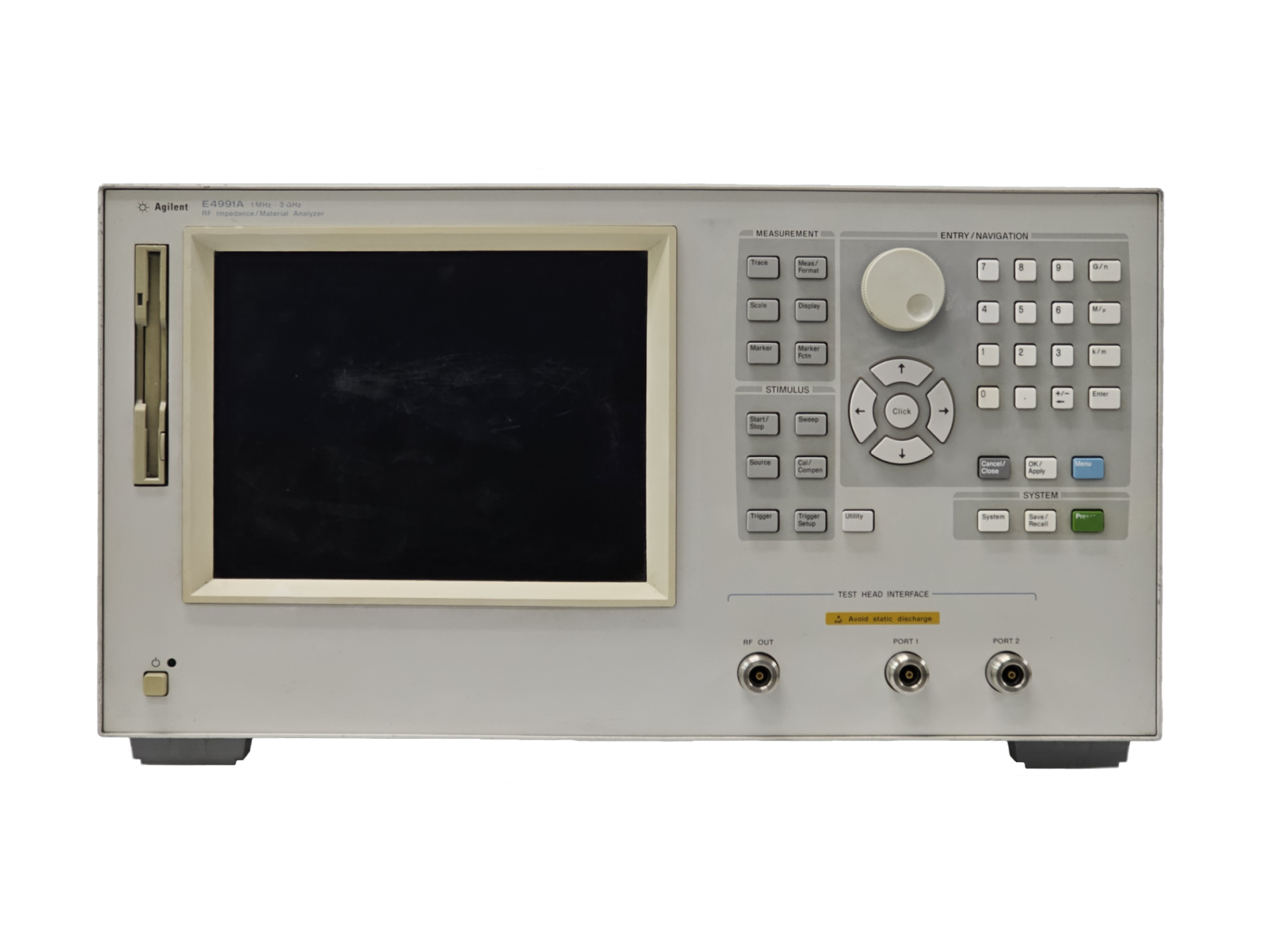

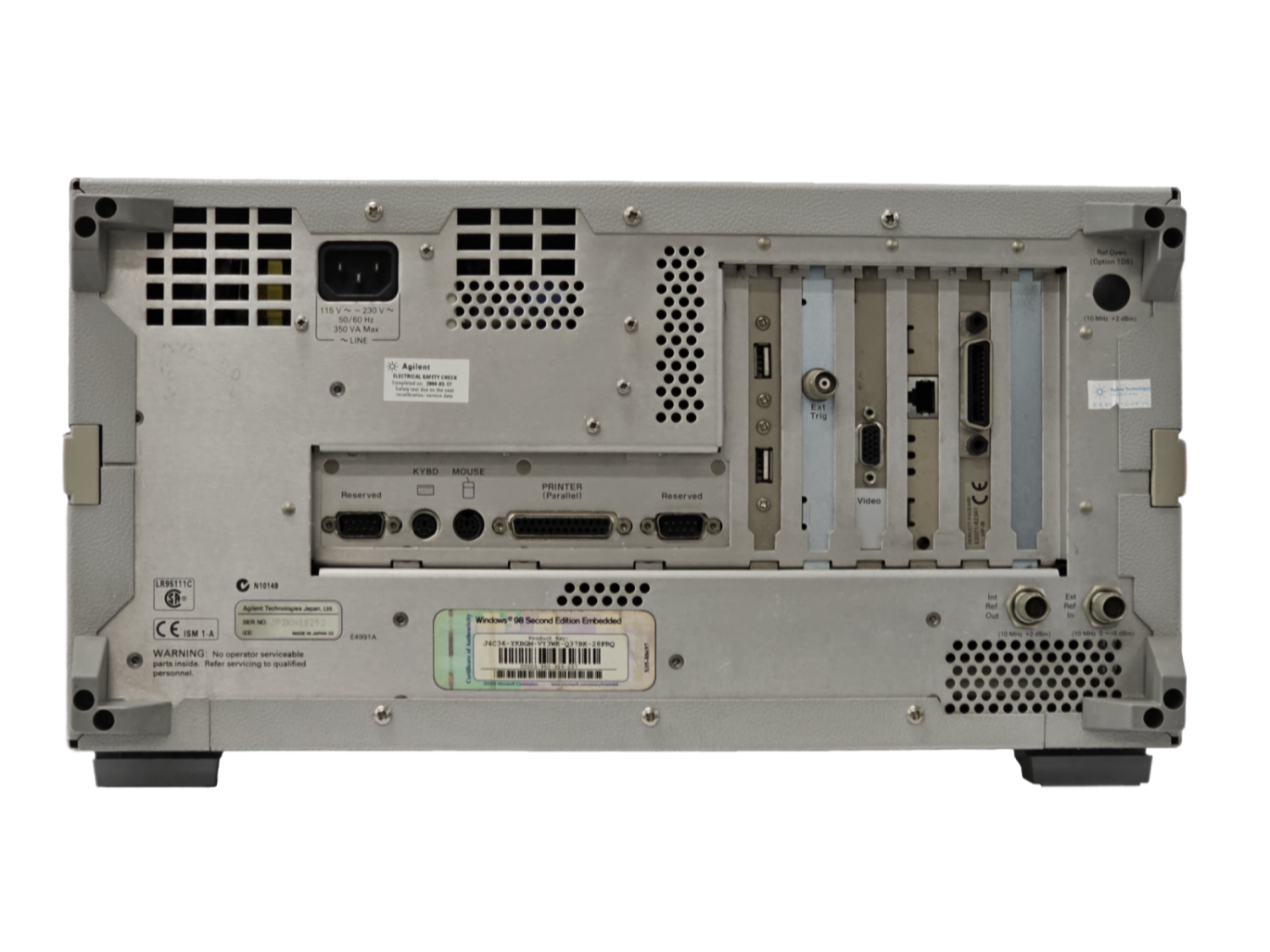

Agilent E4991A Impedance Analyzer

Agilent / Impedance Analyzer / E4991A

The E4991A RF impedance/material analyzer offers ultimate impedance measurement performance and powerful built in analysis function. It will provide innovations in R&D of components and circuit designers who evaluate components in the range of 3 GHz. The E4991A uses an RF-IV technique, as opposed to the reflection measurement technique, for more accurate impedance measurement over wide impedance range. Basic impedance accuracy is +/-0.8%. High Q accuracy enables low-loss component analysis. The internal synthesizer sweeps frequency from 1 MHz to 3 GHz with 1 mHz resolution.

Basic accuracy

• +/- 0.8 % basic accuracy

Sweep parameters

• Frequency: 1 MHz to 3 GHz
• Oscillator level: Up to 1 dBm/0.5 Vrms/10 mArms
• DC bias level (Option E4991A-001): +/- 40V or +/- 50 mA

More features

• Windows-styled user interface
• Built-in VBA programming function
• Data transfer through LAN interface
