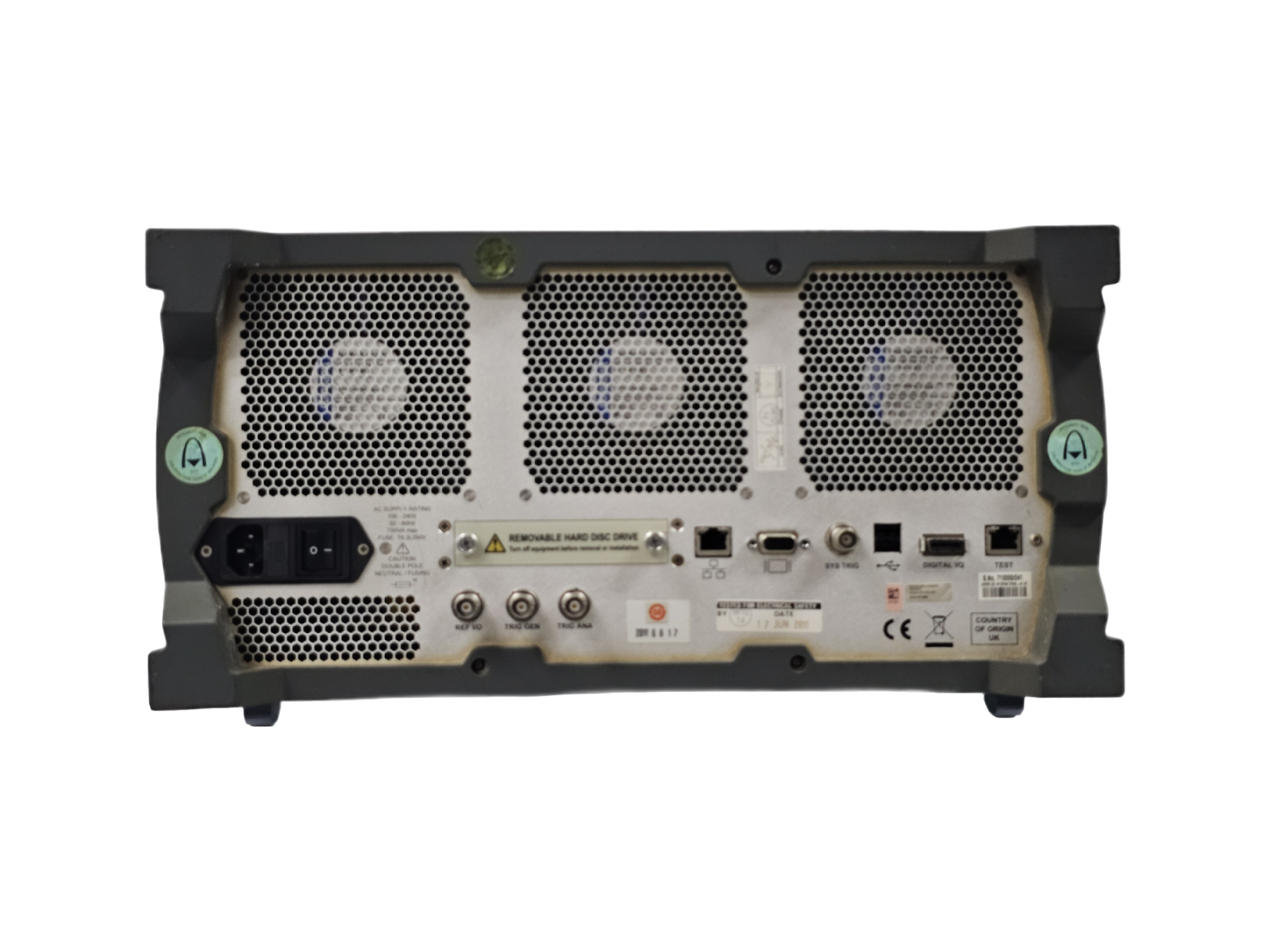

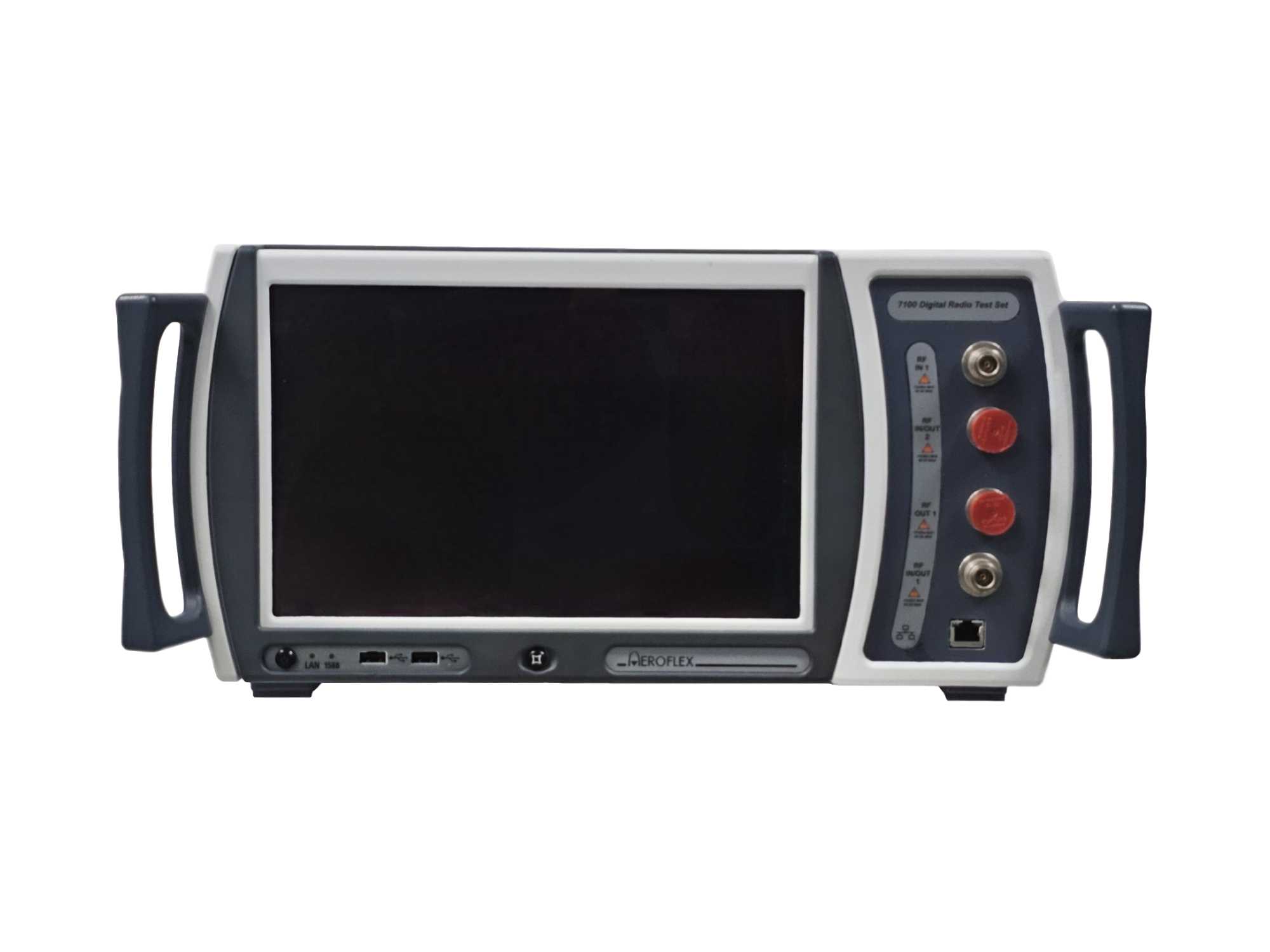

AEROFLEX / Digital Radio Test Set / 7100

Advanced R&D test tool for LTE UE

• LTE FDD and TDD signalling network emulation
• LTE-Advanced Carrier Aggregation, 2CC, 3CC
• Development and Call Box modes of operation
• Broad RF test coverage
   - Comprehensive suite of RF parametric measurements
   - Extensive preconfigured 36.521 RF Test Case coverage
• 6 GHz frequency range, covering all LTE spectrum allocations
• Integrated -3GPP Rel-8/Rel-11 LTE compliant physical layer and protocol stack included
• Real time protocol logging and analysis
• Data throughput test up to 450 Mbps
• Multi-RAT testing:
   - eHRPD, 1xRTT and TD-SCDMA
• Automatic network simulation
• Functional testing
• End-to-end IP packet data test
• Integrated Fading/AWGN option
• MIMO 2x2 and MIMO 4x2
• Automation support using remote APIs
• Integrated controller PC with Windows Embedded
• State of the art 12” touch-screen GUI
