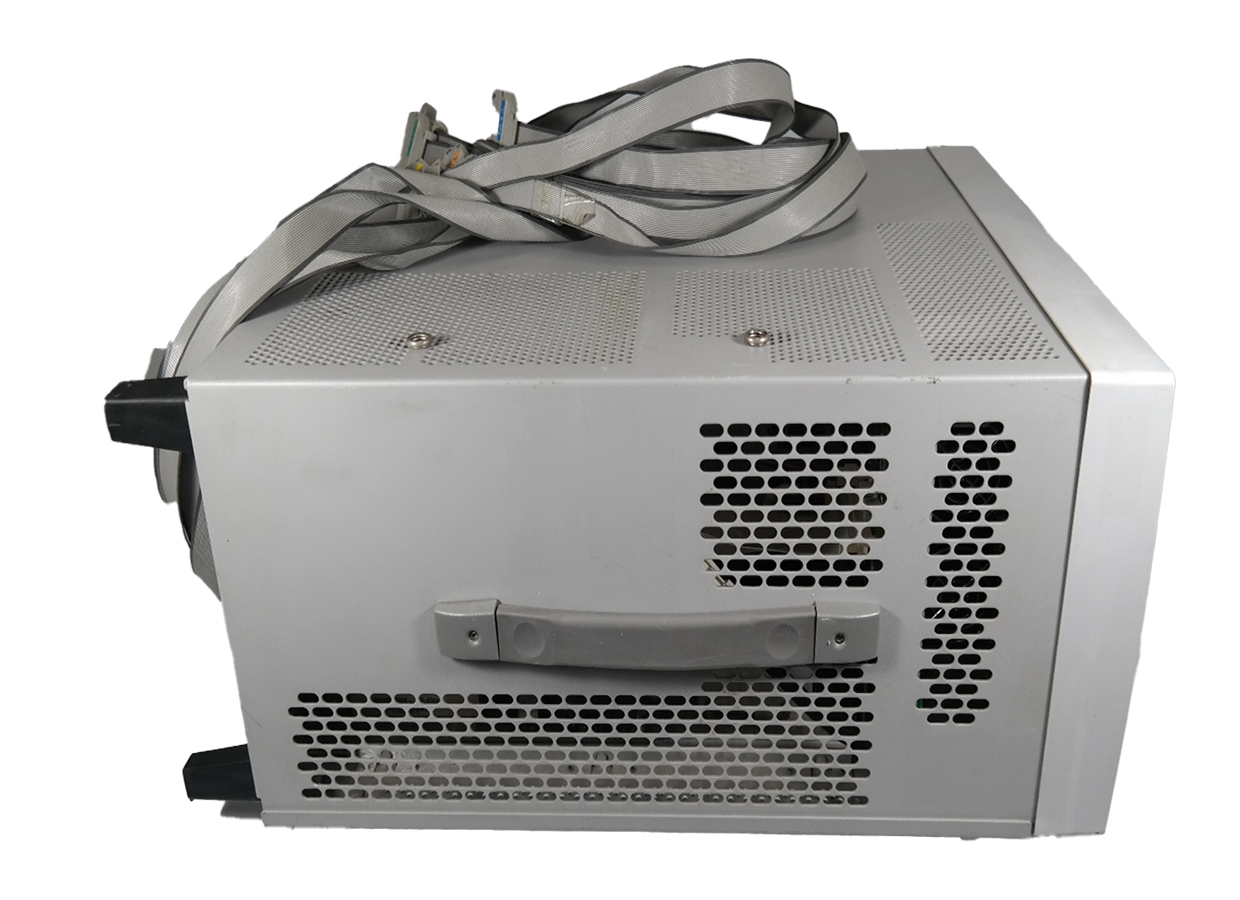

Agilent / Logic Analyzer / 16903A

Additional Features: 115/230 V, 48 to 66 Hz, 900 W max 3-slot modular system Mai nframe Supports timing/state analyzers and pattern generator PCI expansion slot s: 1 full profile, 1 low profile 12.1 inch color touch screen display, 800 x 600 resolution Intuitive user interface and familiarity of Windows XP Pro Data view s: waveform/chart, listing, packet viewer, source code, compare Dedicated hot ke ys, knobs, keyboard and mouse LAN: 10/100 BaseT (optional Gbit LAN) E5860A Gbit LAN Card I/O Ports: Two USB 1.1, parallel, serial, external video, calibration B NC, Clock in BNC Interface to other instruments: Trigger In/Out, Target control port View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display The Agilent 16903A logic analysis system provides high- performance, system-level debugging of digital designs. Expandability is the key to the system´s long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processi ng analysis tools.

OPTION
