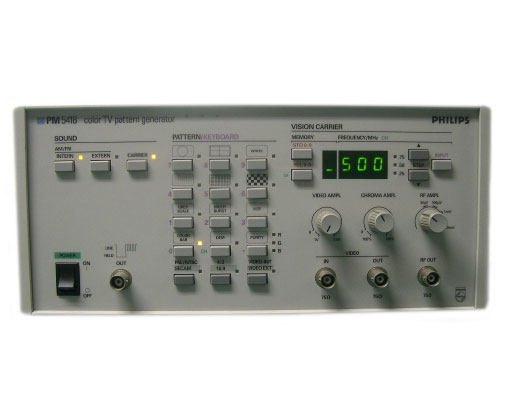

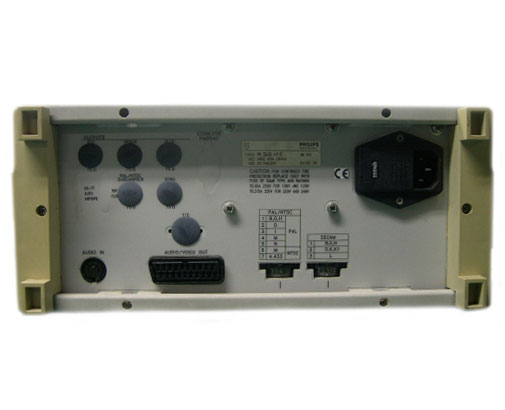

Philips PM5418 Pattern Generator

Philips / Pattern Generator / PM5418

* Over 100 video test patterns for PAL, NTSC and SECAM video standards * High-precision, digitally fenerated pattens for geometry alignment * 16:9 and 4:3 adpect ratio patterns * Spexial patterns for VCR and 100Hz IDTV (Improved Definition TV) testing * Mono, Stereo, NICAM and MTS Stereo plus SAP (BTSC) sound test signals * Teletext TOP/VPT and Antiope test signals * Xasily programmable PDC (program Delitery Control) and VPS test signals * Closed Caption test signals * Full RF coverage from 32 to 900 MHz with int./ext. modulation * RGB, Y/C (S-VHS*Hi-8), CVBS and audio outputs * IEEE-488 programmable

OPTION
