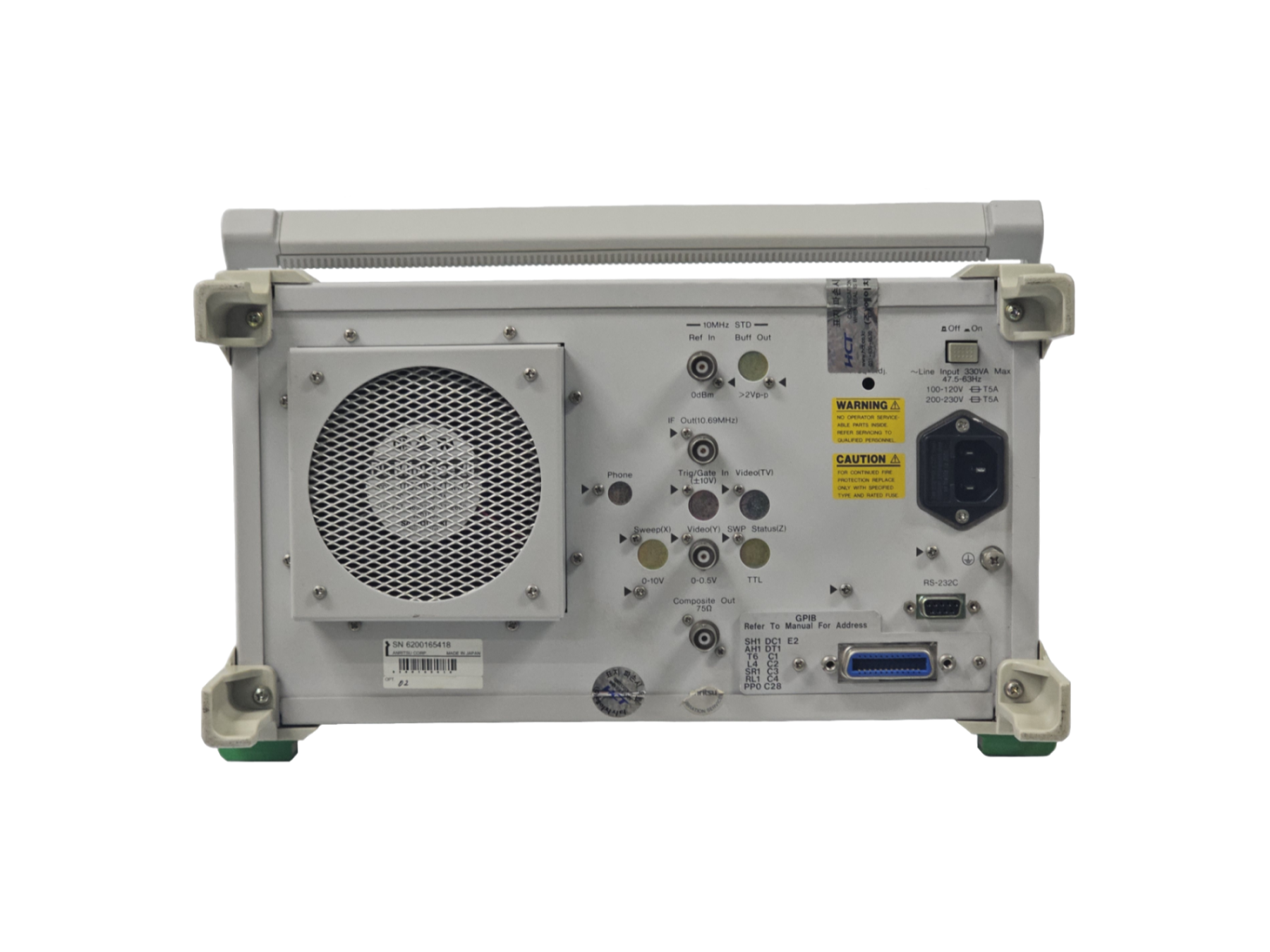

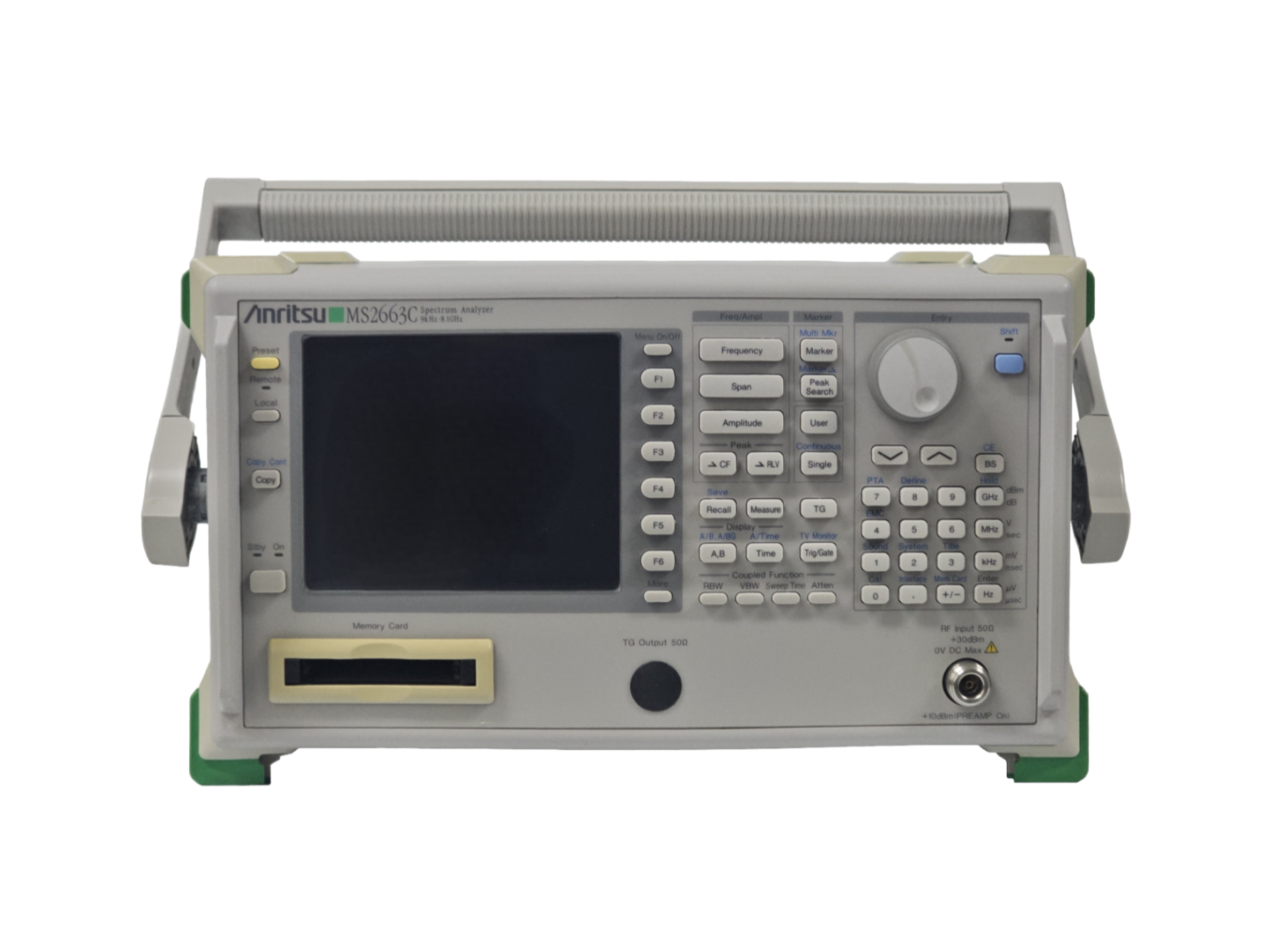

Anritsu / Spectrum Analyzer / MS2663C/02

SPECTRUM ANALYZER 9 kHz to 8.1 GHz High-stability reference oscillator (Option 01) Narrow resolution bandwidth (Option 02)



Frequency Range

9 kHz to 8.1 GHz (standard)

Rugged MIL-STD-28800 Class 3

Compact and Lightweight (15kg or less in standard configuration)

Portable for installation and maintenance

Frequency Counter with 1 Hz resolution

Superior RF performance specifications

Bright full-color screen visible in direct sunlight

Remote Control Capability using SpectRe software (included)

Enables near-real-time remote monitoring, control, and data collection.

Control measurement parameters on the fly and see results immediately.

?

?

Applications

?

CATV maintenance

Options allow the addition of 75 W impedance and a 75 W tracking generator

CDMA Cellular Measurements

Channel power, occupied frequency bandwidth, adjacent channel power

Time response for open-loop power control

Spurious measurements

PDC Measurements for base stations

Channel power, frequency, occupied frequency bandwidth, adjacent channel power

Spurious

GSM Measurement Software

Power, time response, adjacent channel power

Spurious

Intermodulation characteristics

CATV Measurement Software

Video power, C/N, frequency, cross modulation, CTB, modulation factor, hum

EMI Measurement Software

Radiated emission, conducted emission





OPTION
