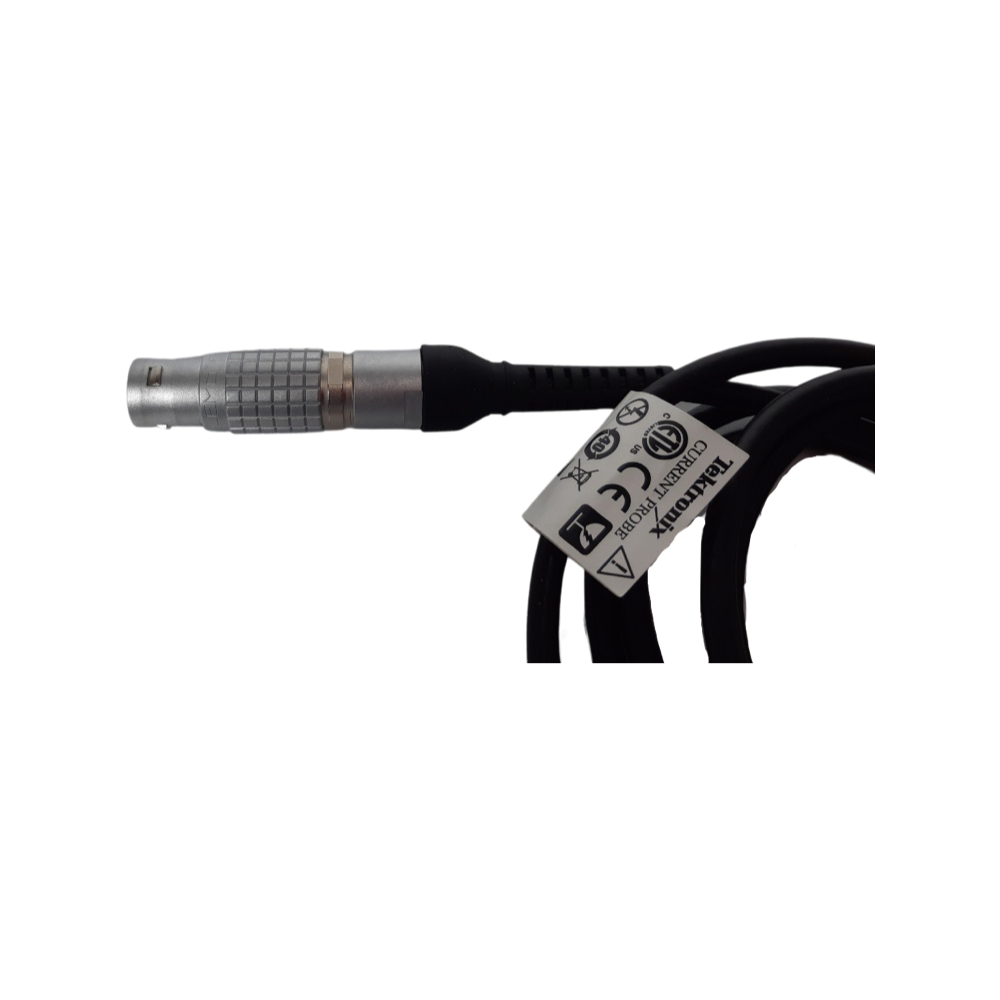

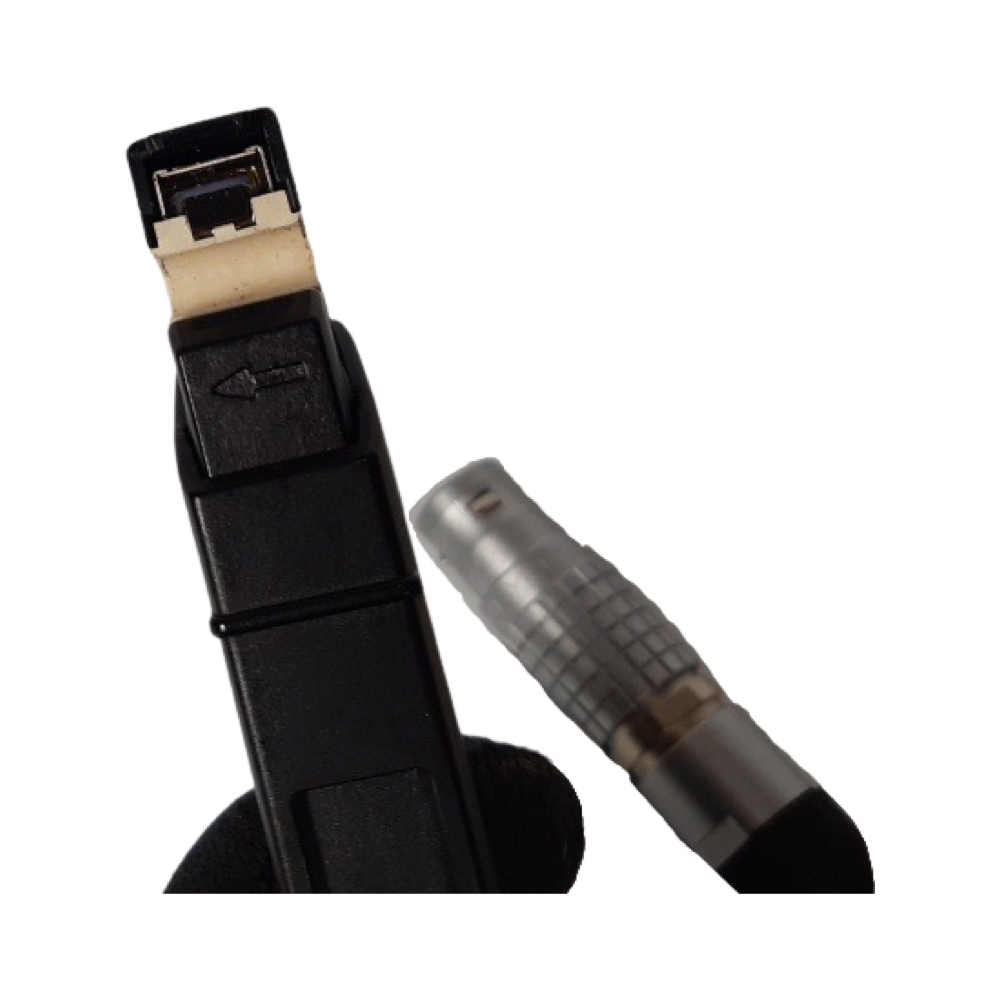

Tektronix TCP305A Current Probe

Tektronix / Current Probe / TCP305A

Meter Side Connector: BNC Plug Probe Side Connector: Current Clamp Current Range Max: 50A Current Range Min: 5mA, DC~50MHz



Requires TCPA300 amplifier

dc to 50 MHz

Current (DC continuous): 50 A

Lowest Measurable Current: 5 mA

Jaw Diameter: 5 mm

Automatic scaling and units - Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations

AC/DC input coupling

Low insertion impedance reduces device under test loading

Split-core construction allows easy circuit connection

Status indicators provide visual operating status and notification of potential error conditions - degauss, probe open, overload, not terminated into 50 Ω, noncompatible probe type

Cable length: 1.5 m

Shipping weight: 4 lb
