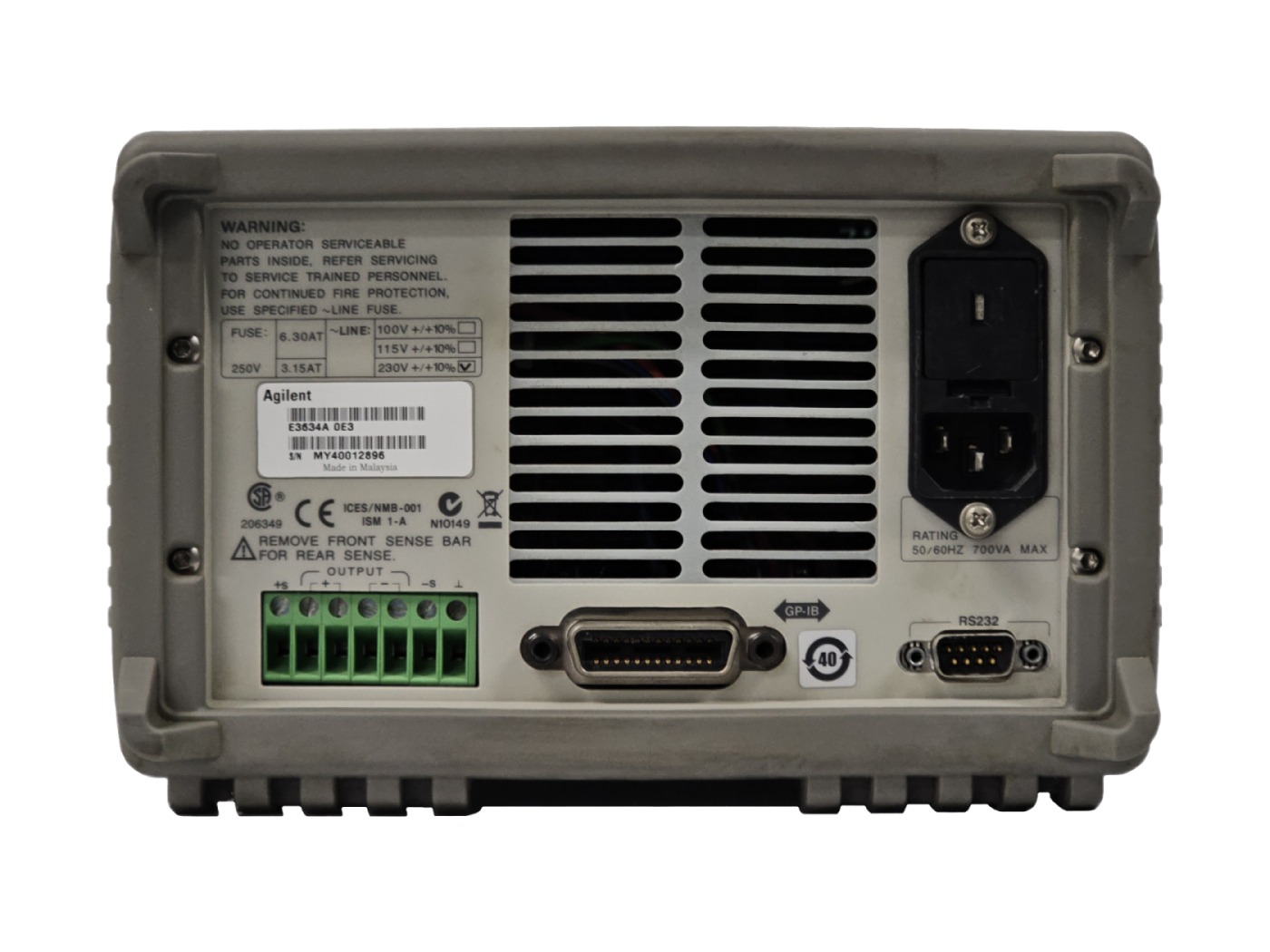

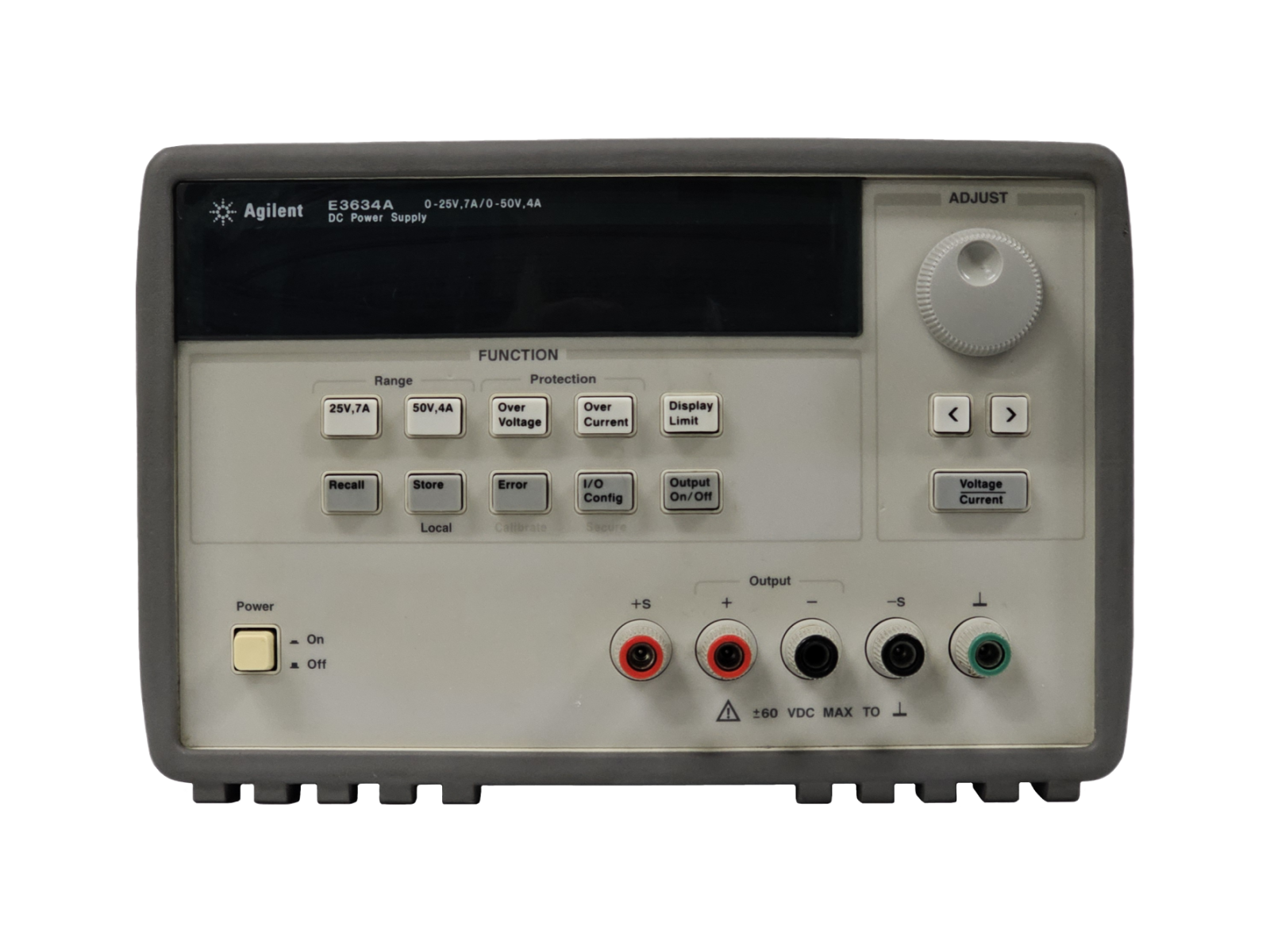

Agilent E3634A Power Supply

Agilent / Power Supply / E3634A

DC Power Supply, Selectable Output 0 to +25 Vdc @ 0 to 7 A or 0 to 50 Vdc @ 0 to 4 A, 200 W

Voltage output: 0 to 25 Vdc @ 0-7 A; or 0 to 50 Vdc @ 0-4 A

Low noise and excellent regulation

High accuracy and resolution

Remote sense

Front and rear output terminals

GPIB and RS-232 standard

SCPI (Standard Commands for Programmable Instruments)

VXI plug & play drivers

115 Vac ±10%; 47-63 Hz operation

Weight: 18 lb; Size: 133 mm (5.22 in)H x 213 mm (8.4 in)W x 348 mm (13.7 in)D

OPTION
