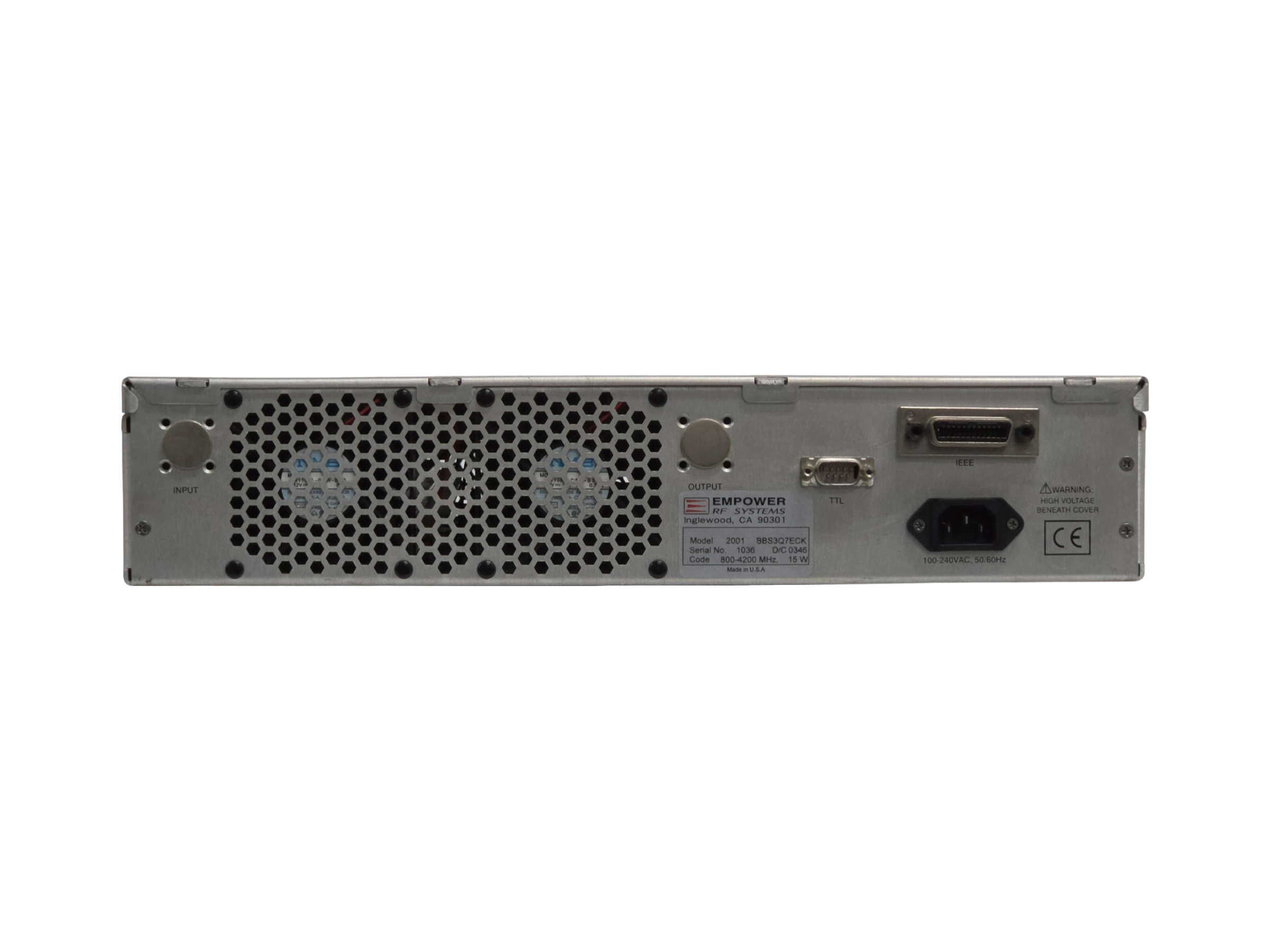

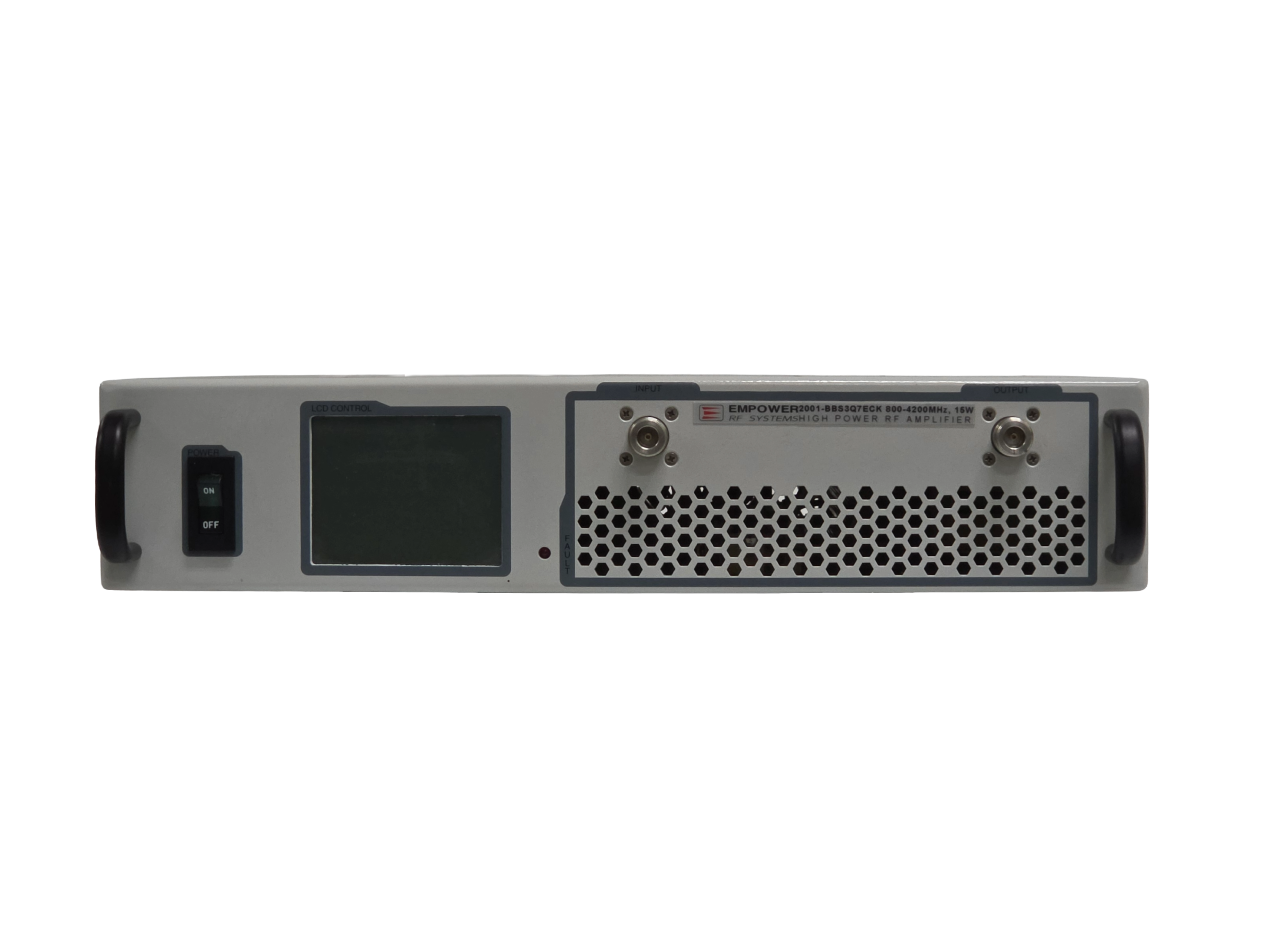

EMPOWER 2001-BBS3Q7ECK Power Amplifier

EMPOWER / Power Amplifier / 2001-BBS3Q7ECK

Solid State Broadband High Power RF Amplifier

Frequency Range: 800-4200MHz,

Linear Output Power: 15 Watts (13W 이상)



● 주파수 범위(Frequency Range) : 800 MHz ~ 4.2 GHz

● 출력 전력(Output Power) : 15 W CW (PSAT) / 10 W @ 1 dB Gain Compression

● Power Gain @ 1 dB Compression : 42 dB

● Gain Adjustment Range : 25 dB

● 입·출력 임피던스(Input/Output Impedance) : 50 Ω

● 입·출력 커넥터(RF Connector) : Type-N, Female

OPTION
