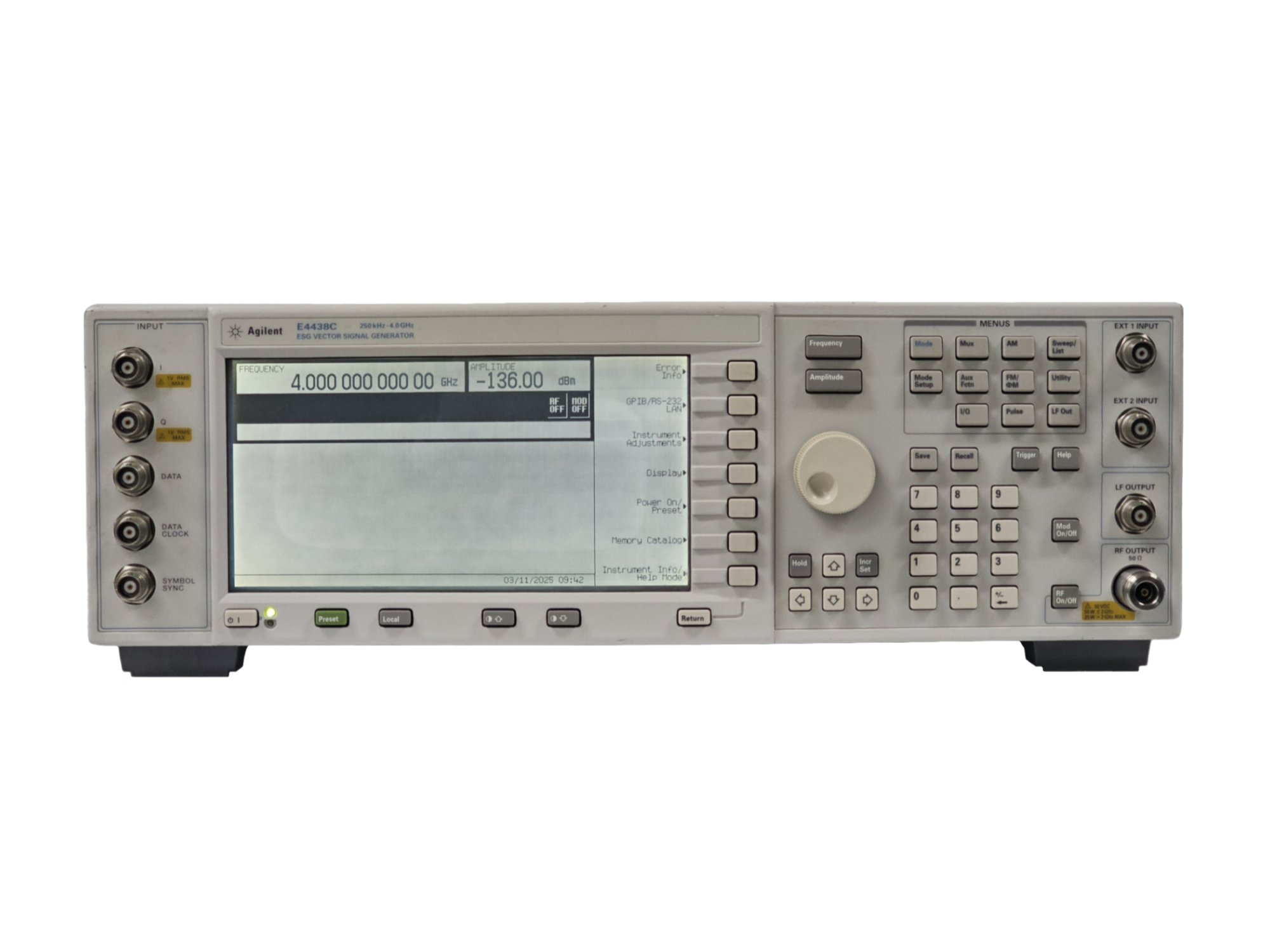

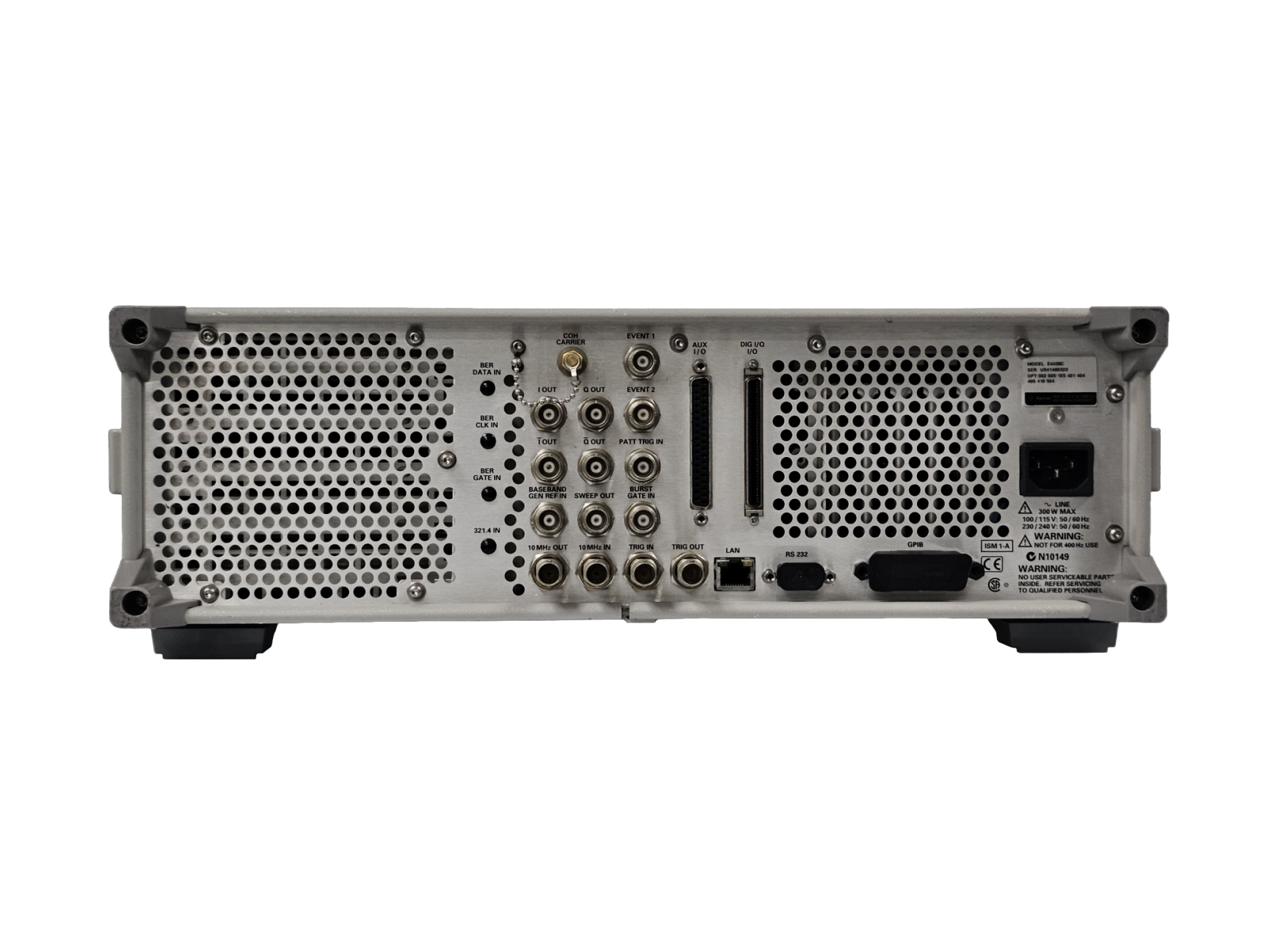

Agilent E4438C/002/005/1E5/400/401/404/405/410/504 Signal Generator

Agilent / Signal Generator / E4438C/002/005/1E5/400/401/404/405/410/504

Agilent E4438C 4GHz ESG Vector Signal Generator Description :

• 1GHz - 4GHz maximum frequency, depending on options
• Up to 160 MHz RF modulation bandwidth
• Deep baseband and non-volatile memory
• Differential and single-ended I/Q outputs
• Simple softkey menu structure allows access to sophisticated features

The Agilent E4438C ESG vector signal generator meets the needs of engineers who are designing and developing the next generation of wireless communication systems and is well suited for production test environments. An assortment of standards-based receiver and component test software for 3G and emerging communications formats are available to simplify the signal configuration process.

The E4438C ESG vector signal generators performance, extended frequency range, increased memory for waveform playback and storage, and application-specific personalities make it the clear choice for development and manufacturing from the component to the system level.

OPTION

002/005/1E5/400/401/404/405/410/504

002   Internal baseband generator (32 Msamples memory)
005   6 Gbyte hard drive
1E5   High-stability time-base
400   3GPP WCDMA (FDD) personalities
401   cdma2000 and IS-95-A personalities
404   1XEV-DO signal studio software
405 Signal Studio for WLAN 802.11b
410 Signal Studio for WLAN 802.11a
504   250kHz to 4 GHz
