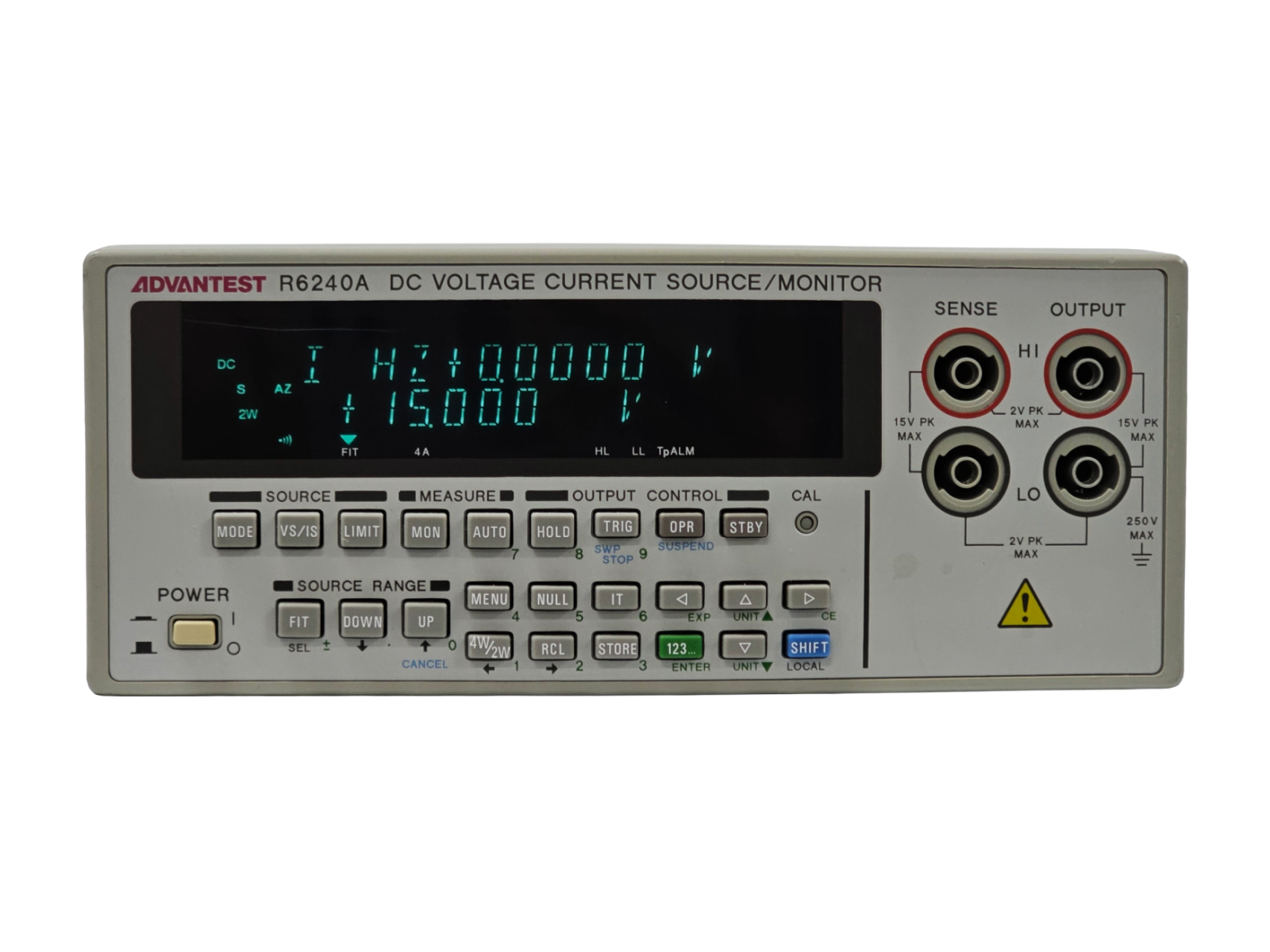

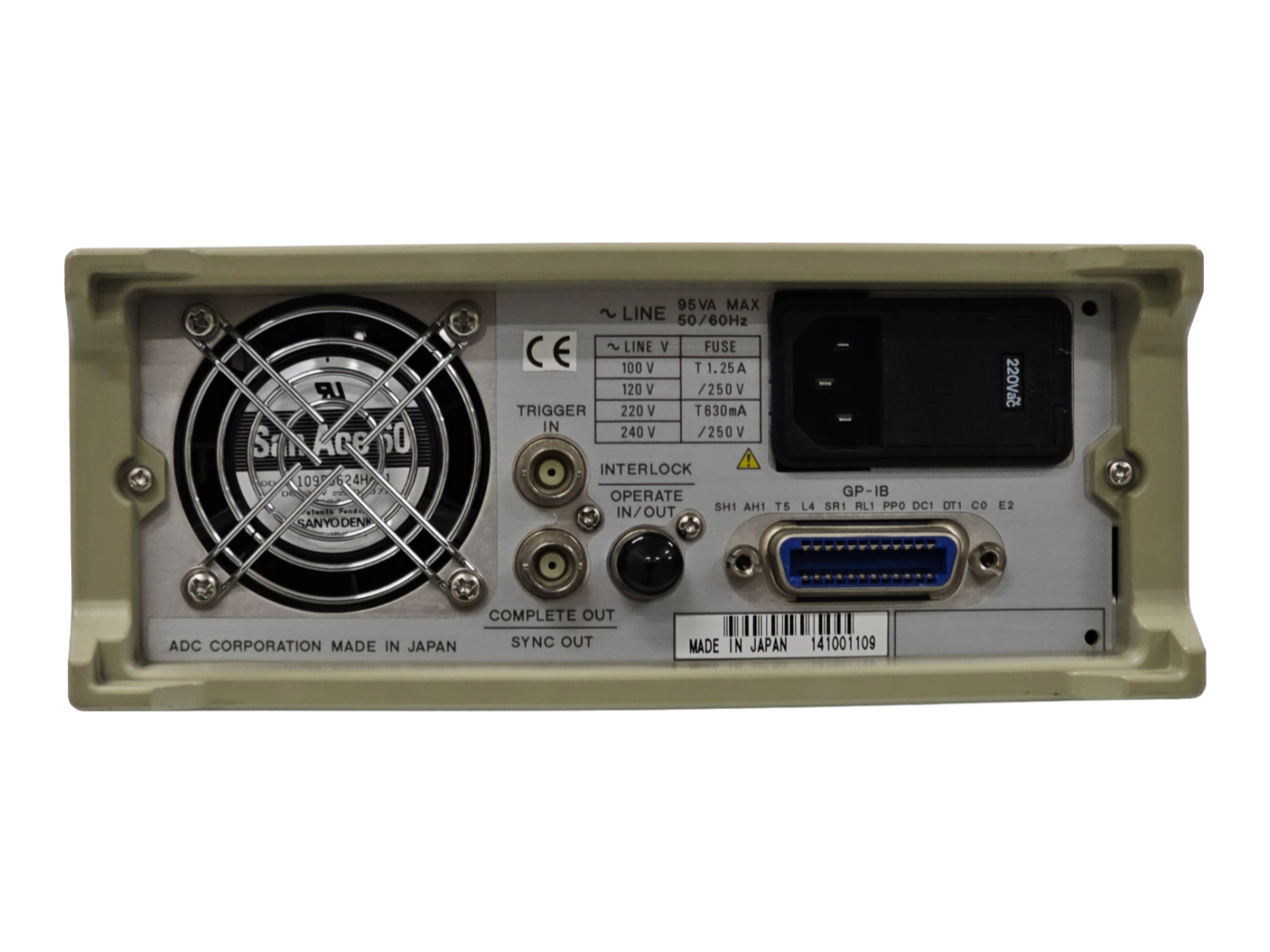

Advantest R6240A DC Voltage Current Source/Monitor

Advantest / DC Voltage Current Source/Monitor / R6240A

High performance DC Voltage and Current Source/Monitor with ±15V / ±1(4)A

DC Voltage and Current Source/Monitor

• Source and measurement with the basic accuracy of ±0.025%

• Measuring accuracy of 5 1/2 digits (±319999), resolution of 10µV, and 10nA

• Source/sink of ±4A for a maximum period of 20ms

• Pulse measurement with minimum pulse width of 500µs and resolution of 1µs

• Linear/fixed/random sweep functions for characteristic measurement

• Individual settings of HI and LO limiters z Suspend function that enables selection of an output OFF state

• Resistance measurement under constant voltage source or constant current source

• Synchronous measurement of multiple units

OPTION
