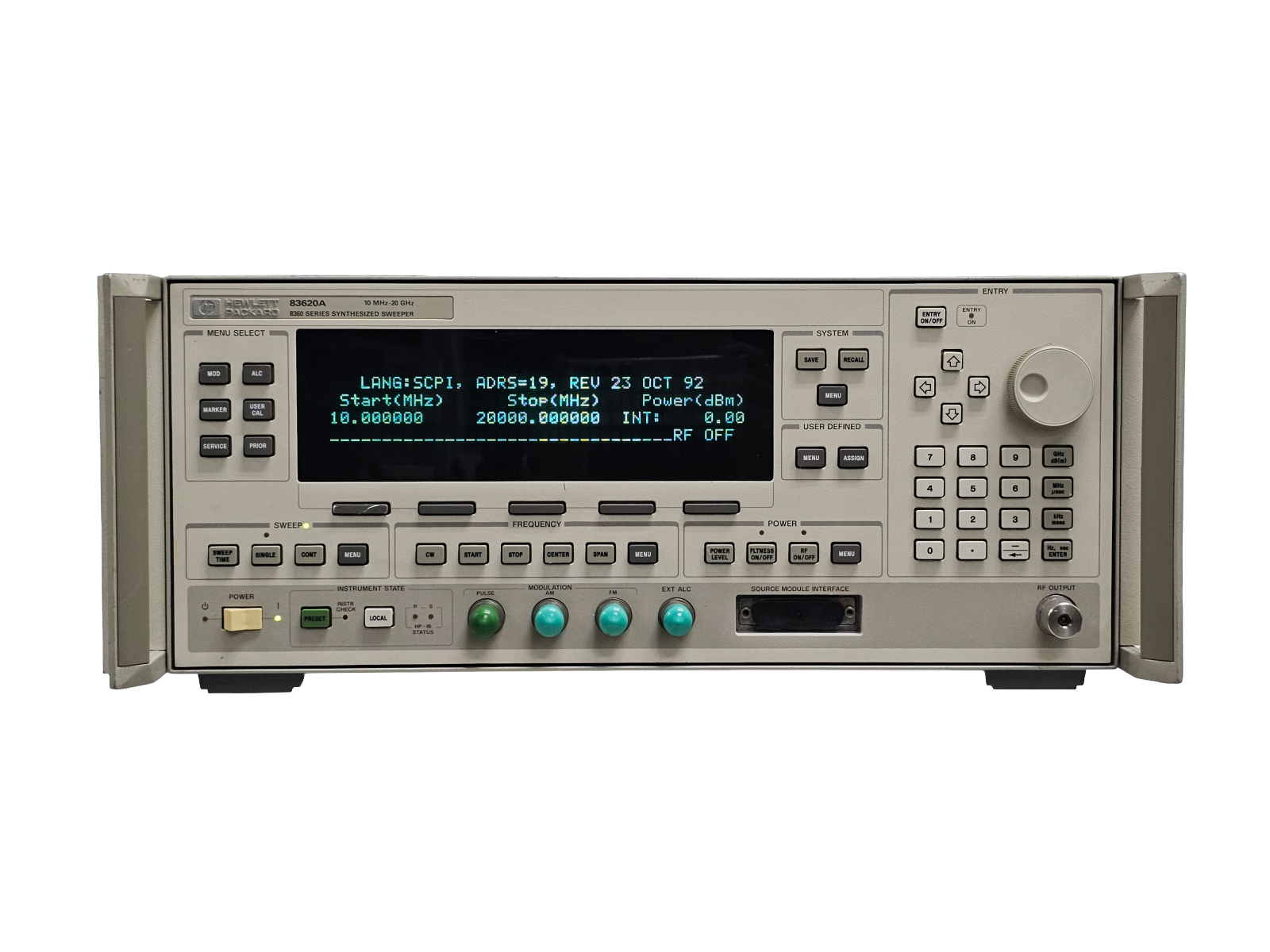

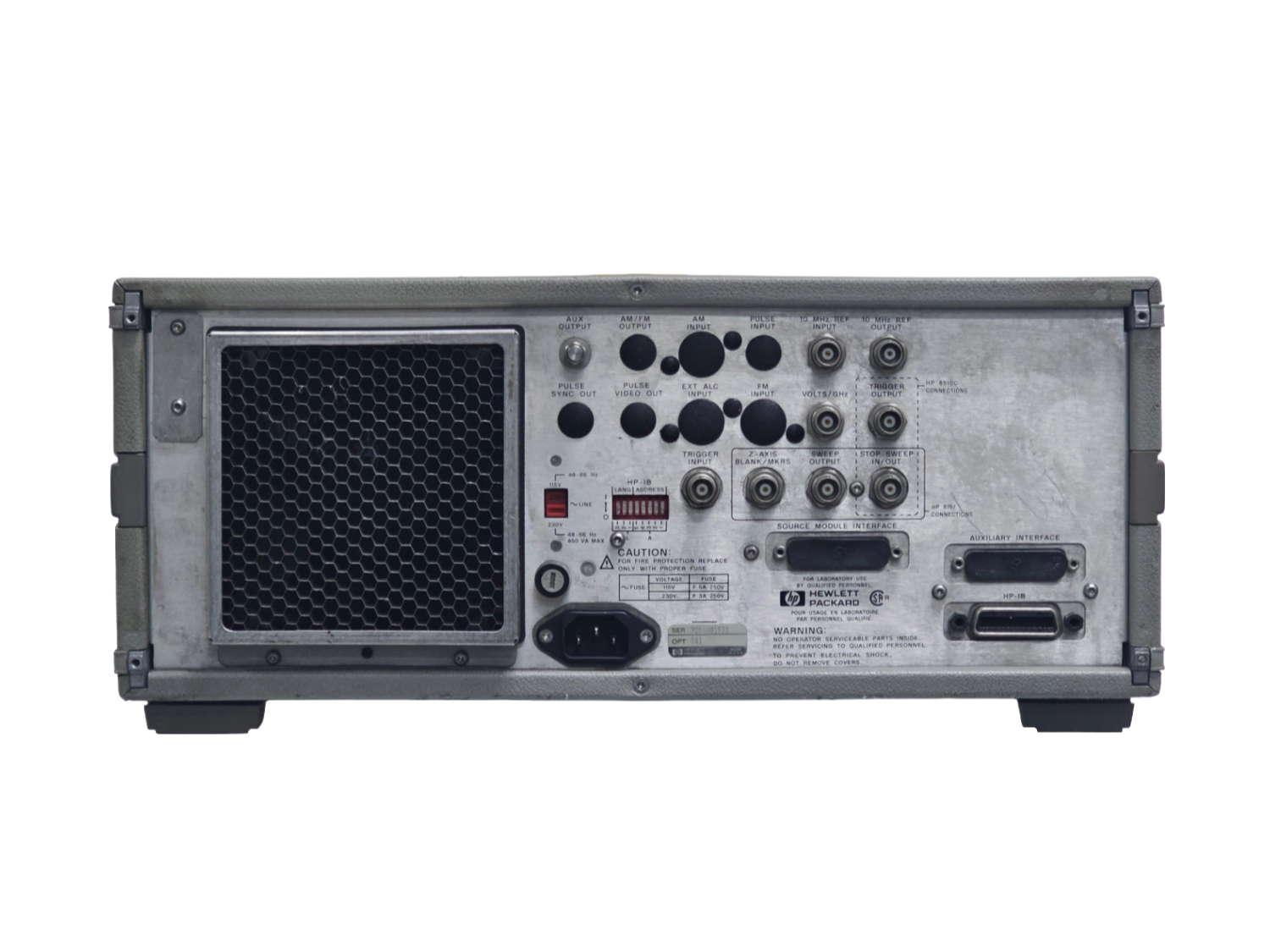

HP 83620A/001 Synthesized Sweeper

HP / Synthesized Sweeper / 83620A/001

10MHz ~ 20GHz

The Keysight 83620A synthesized sweeper is used for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83620A to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.

• Scan modulation to simulate antenna scan patterns
• Accurate fixed and swept frequency offset for two-tone measurement
• User flatness correction for leveling at remote points in the test system
• General purpose source for use in component test, receiver test and for frequency conversion
• Sweep modes: Step, List, Ramp
• Maximum power (<20 GHz): +13 dBm
• Power sweep range: -20 dBm to maximum power
• Phase noise (20 GHz at 10 KHz): -70 dBc
• Max FM deviation (locked): +/- 8 MHz

OPTION
