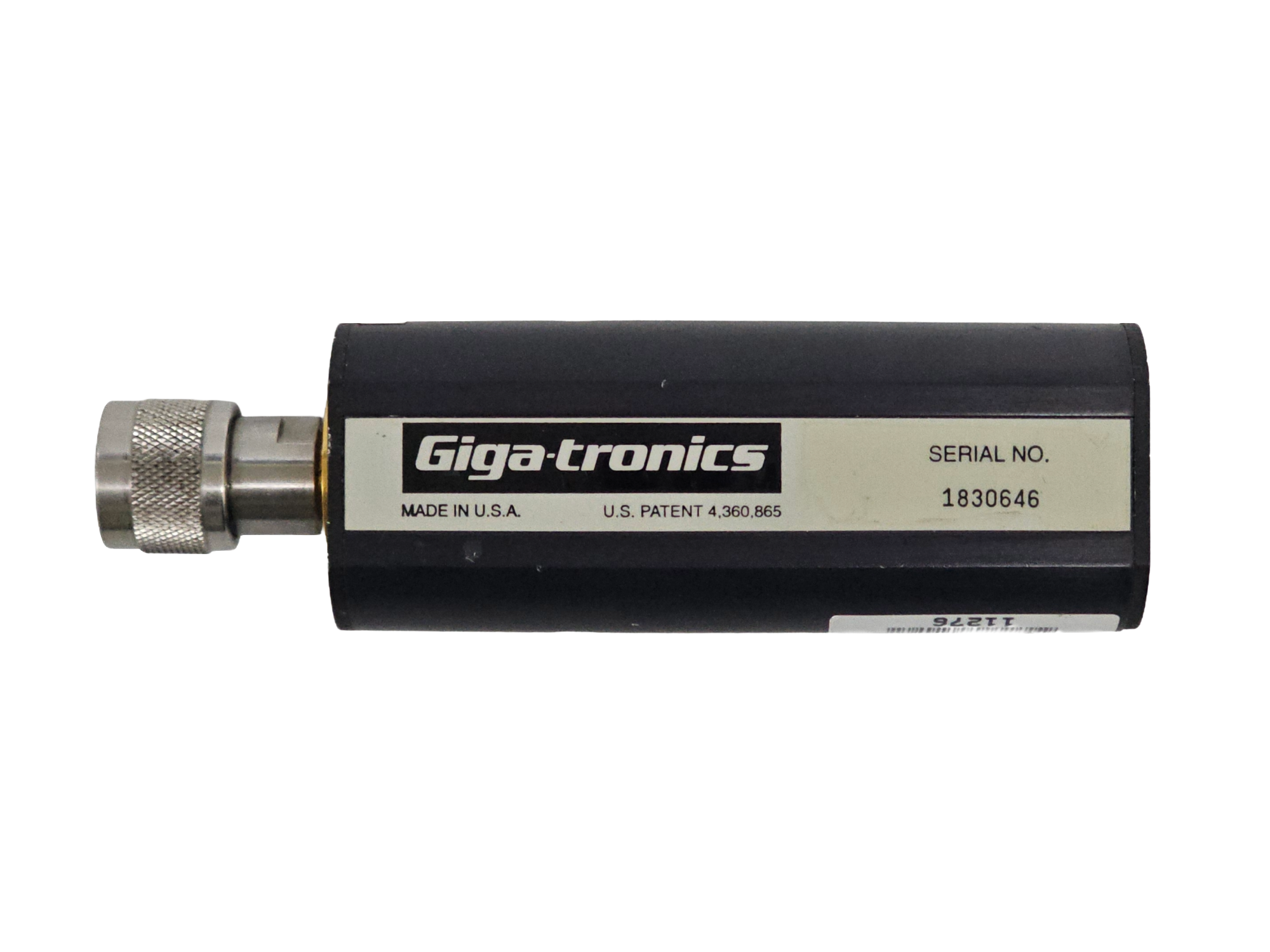

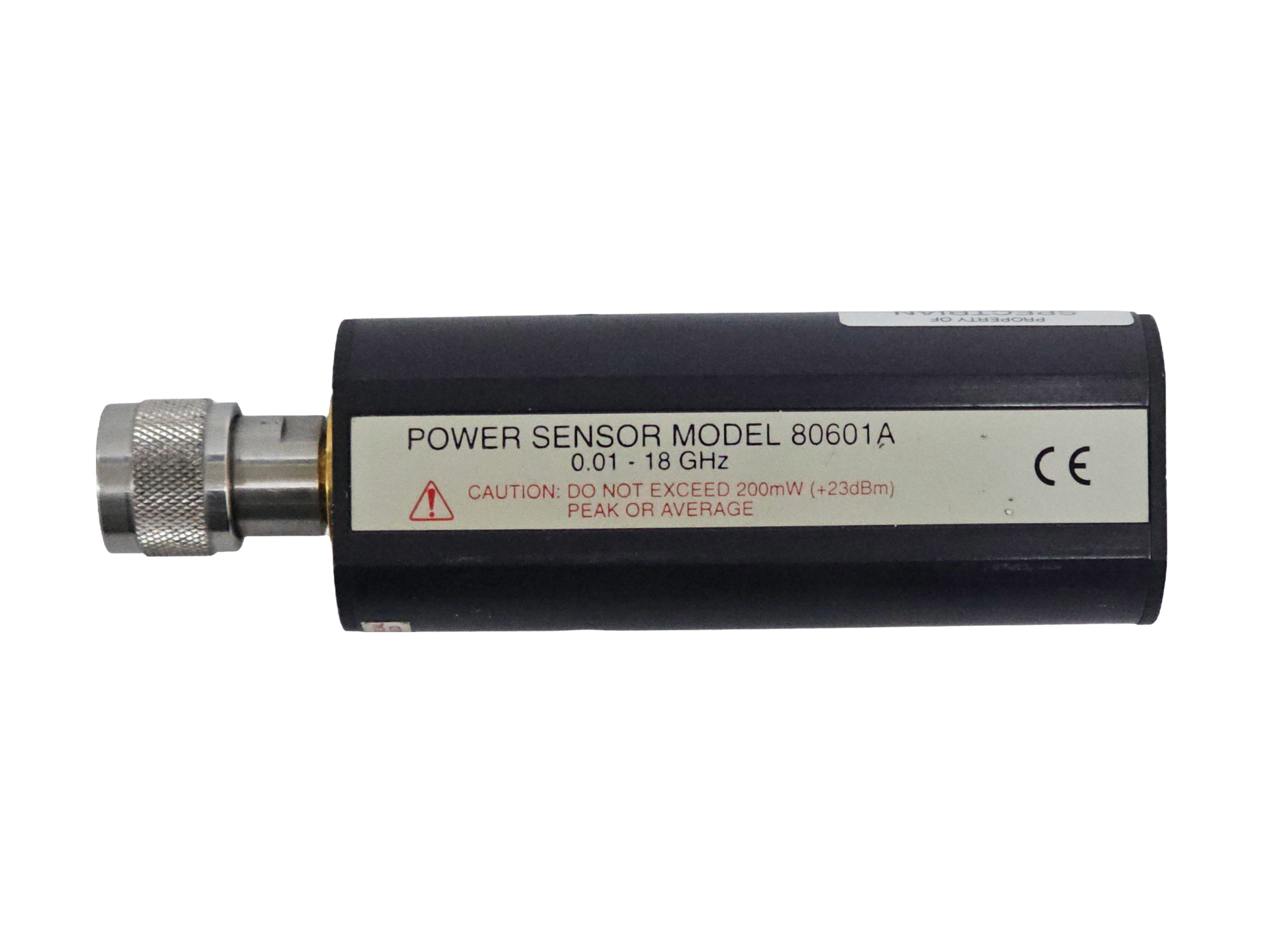

Gigatronics 80601A Power Sensor

Gigatronics / Power Sensor / 80601A

200 mW Modulation Power Sensors

Frequency Range/Power Range :  10 MHz to 18 GHz
–67 to +20 dBm, CW

Maximum Power : +23 dBm (200 mW)

Power Linearity (Frequency > 8 GHz) :
–67 to –20 dBm: ±0.00 dB
–20 to +20 dBm: ±0.05 dB/10 dB

RF Connector : Type N(m)  50Ω

Length  : 137 mm  (5.39 in)
Diameter : 41 mm (1.62 in)
Weight : 0.23 kg (0.5 lb)

VSWR : 1.12: 0.01 - 2 GHz
1.22: 2 - 12.4 GHz
1.29: 12.4 - 18 GHz
