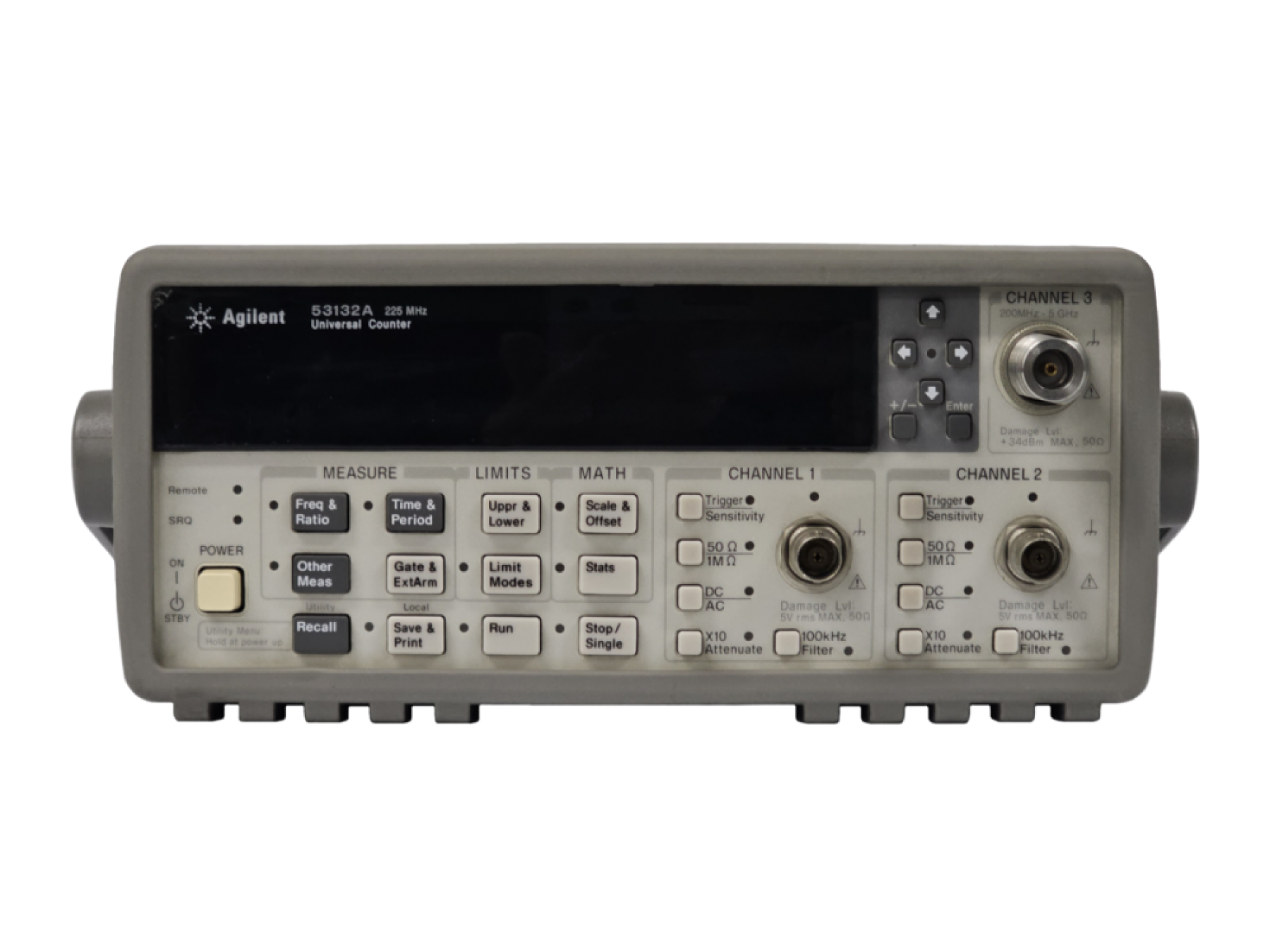

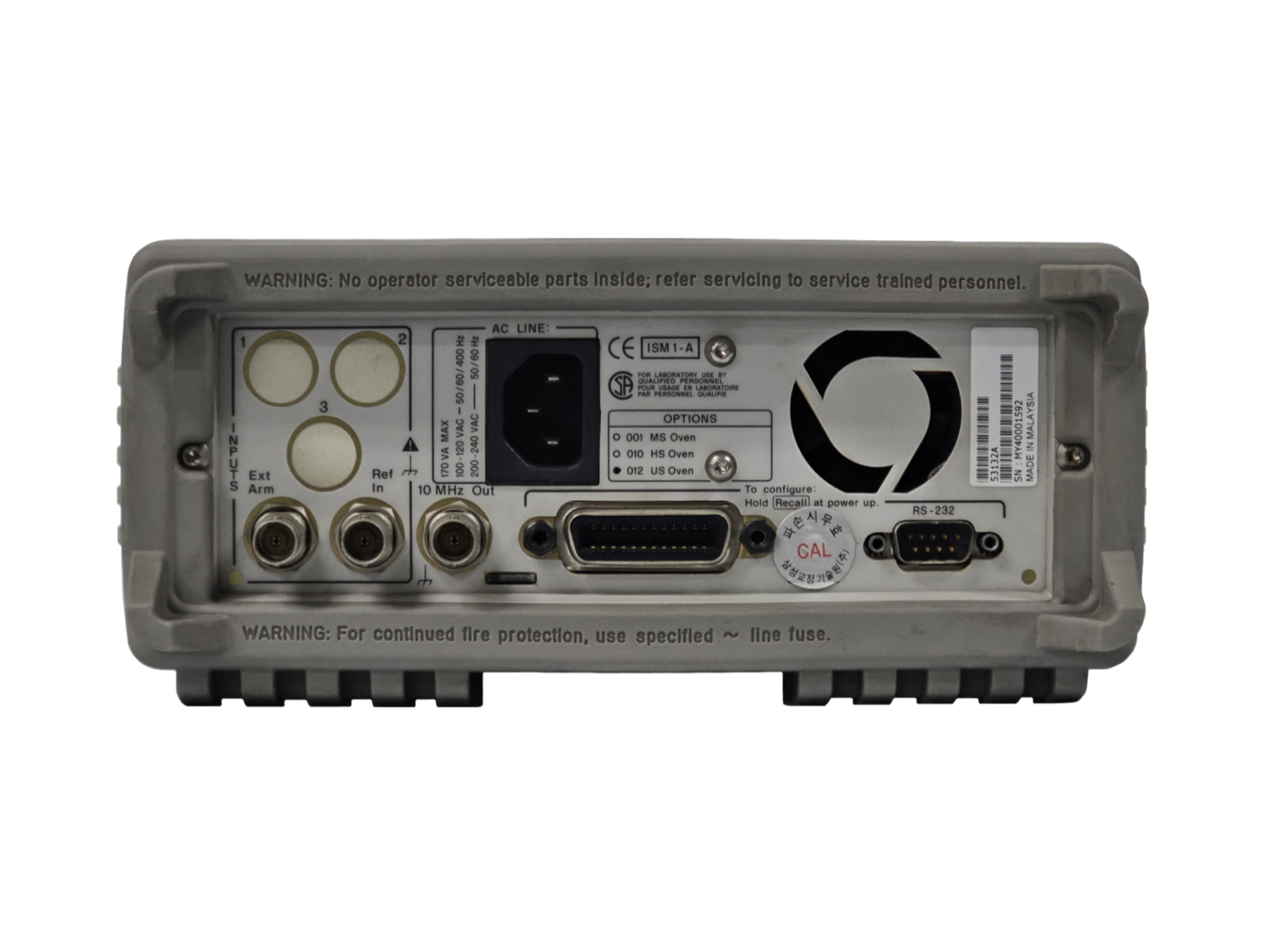

Agilent 53132A/012/050 Universal Counter

Agilent / Universal Counter / 53132A/012/050

Keysight / Agilent 53132A Universal Counter, 225 MHz, 12 Digit/sec

The 53132A universal counter has frequency resolution of 12 digits per second, 150 ps time interval resolution and a complete set of test and analysis features. The unit comes with two 225 MHz channels, and you can choose an optional third channel that measures up to 12.4 GHz.

Features:

• Frequency Range: dc to 225 MHz
• Frequency resolution: 12 digits/s
• Dynamic range: 20 mV to ±5 Vac (dc to 100 MHz), 30 mV to ±5 Vac (100 to 200 MHz), 40 mV to ±5 Vac (200 to 225 MHz)
• Input impedance: 50 ohm or 1 megohm, ac or dc
• Time interval: 150 ps
• Standard time base accuracy: 10 MHz, <3 X 10-7th/month (<1.5 X 10-8th/month with option 010), (<3 X 10-9th/month with option 012)
• GPIB (IEEE-488) and RS-232 (talk only) interfaces
• 100-120 Vac ±10%; 50, 60, 400 Hz ±10% / 220, 240 Vac ±10%; 50, 60 Hz ±10% operation
• Weight: 7 lb; Size: 89 mm (3.86 in)H x 213 mm (8.35 in)W x 348 mm (10.87 in)D

OPTION

012 : Ultra-high stability timebase
050 : 5 GHz RF input with type N connector Ch 3
