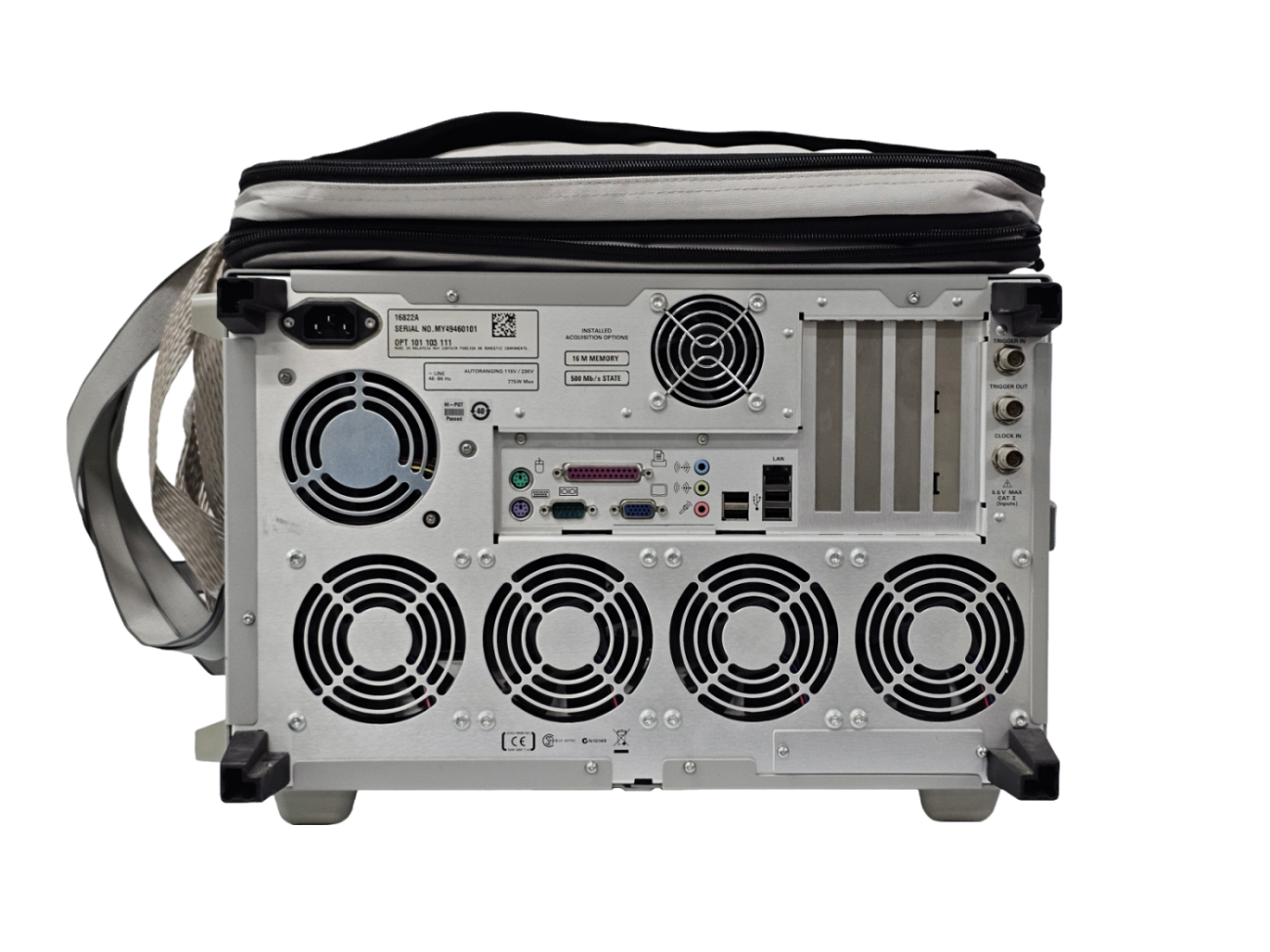

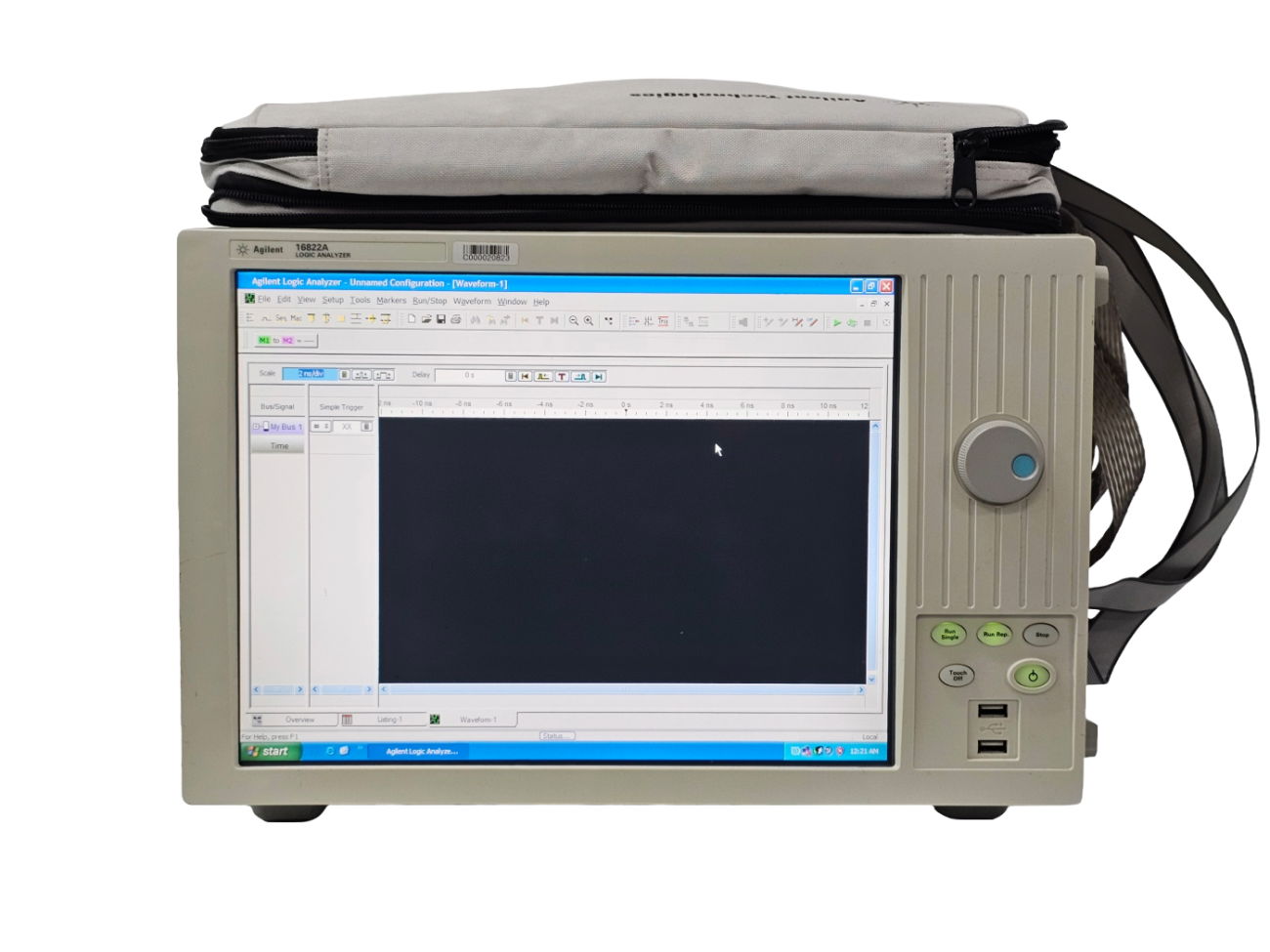

Agilent / Logic Analyzer / 16822A/101/103/111

Logic Analyzer Configuration

• 15-inch (38.1 cm) color display with touch screen available
• 68-channel portable logic analyzer with up to 32 M acquisition memory depth
• Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
• 48-channel pattern generator with up to 300 MVector/s speed and 16 M vector depth

Timing Analysis (Asynchronous Sampling)

• 4 GHz (250 ps) timing zoom with 64 K memory
• 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
• 500 MHz transitional timing

State Analysis (Synchronous Sampling)

• State clock rates up to 450 MHz
• Data rates: up to 500 Mb/s
• Automated threshold/sample position setup for accurate measurements on high-speed buses
• Simultaneous eye diagrams on all channels identify problem signals quickly

Configuration Considerations

• Selectable memory depths: 1 M, 4 M, 16 M, 32 M
• Compatible with 40-pin logic analyzer probes. Probes are ordered separately. Keysight’s Probe Recommendations
• Pattern Generator clock and data pods are ordered separately Pattern Generator Pods
