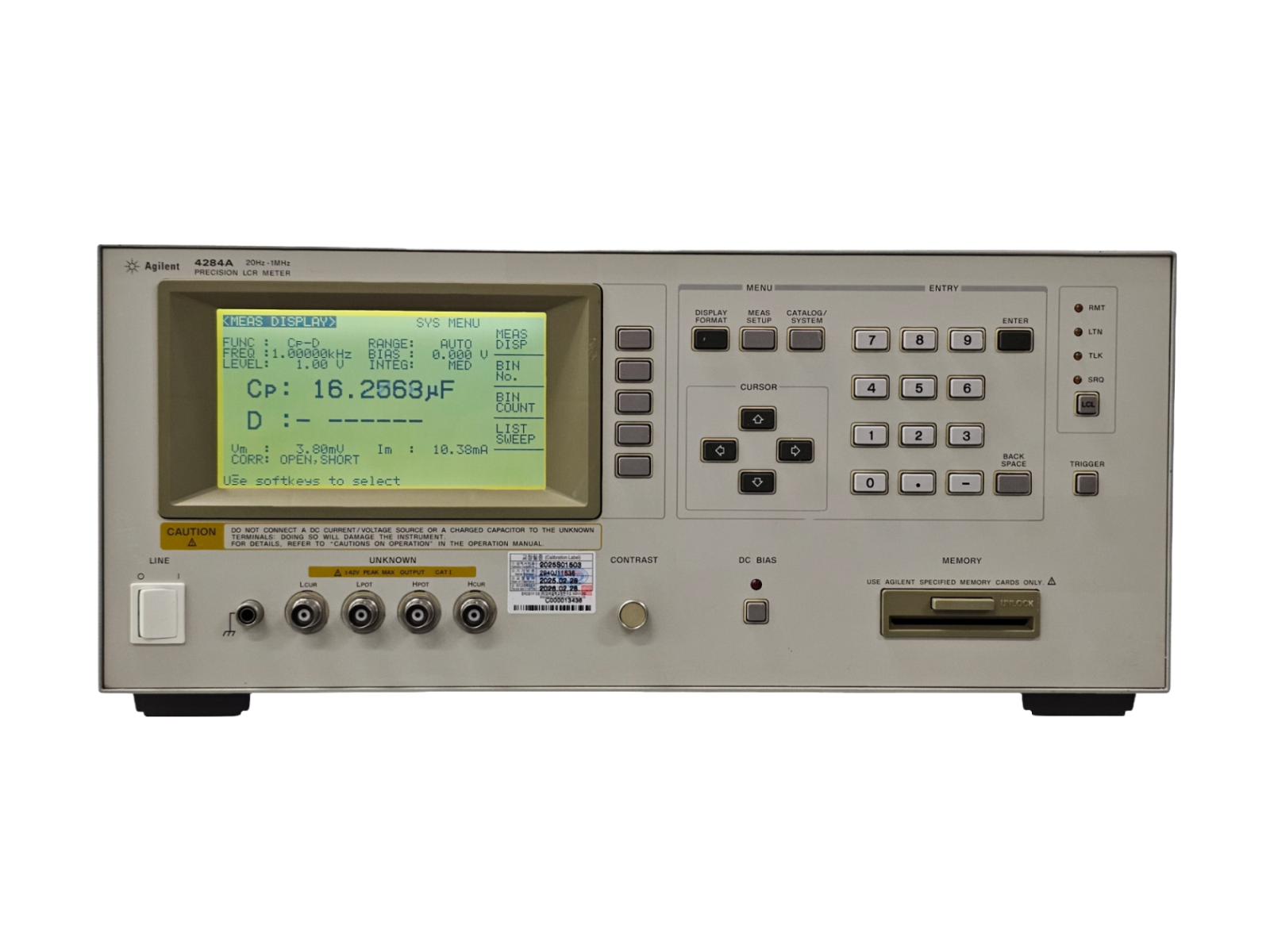

Agilent 4284A/001/006 LCR Meter

Agilent / LCR Meter / 4284A/001/006

Test frequencies : 20 Hz to 1 MHz

0.05% basic accuracy, 6-digit resolution

20 Vrms level option (Option 001)

L range : 0.01 nH - 99.9999 kH

C range : 0.01 fF - 9.99999 F

|Z|, R, X range : 0.01 ohm - 99.9999 megohms

|Y|, G, B range : 0.01 nS - 99.9999 S

D range : 0.000001 - 9.99999

Q range : 0.01 - 99999.9

∅ range : -180° - +180°

Deviation range : -999.999% - 999.999%

Parameters measured : |Z|, |Y|, L, C, R, G, D, Q, Rs, Rp, ∅, X, and deviation for any parameter

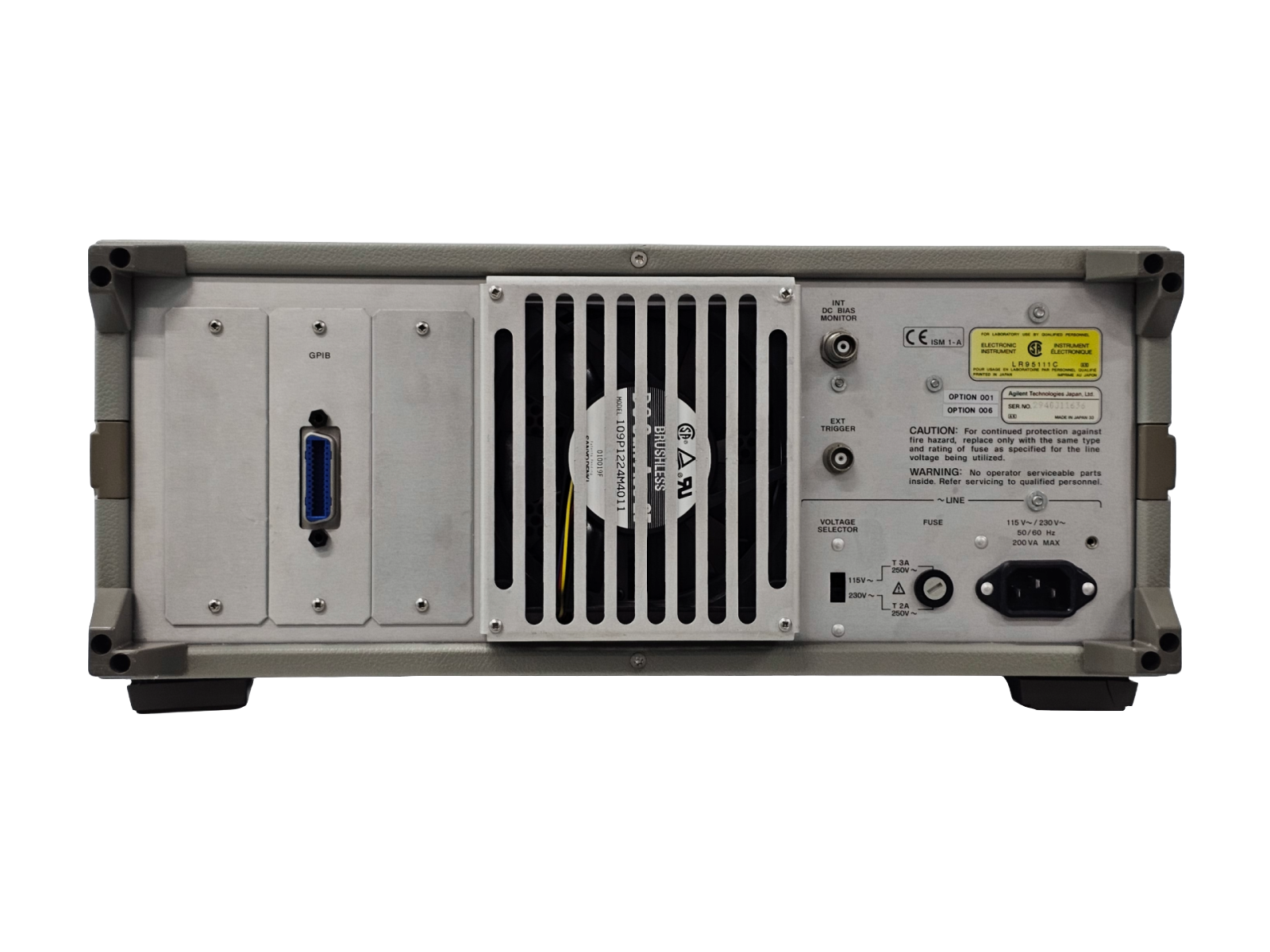

GPIB interface 1

00, 120/220 Vac ±10%, 240 Vac +5% -10%; 47-66 Hz operation

Weight : 33 lb; Size : 177 mm (7.0 in)H x 426 mm (16.75 in)W x 498 mm (19.6 in)D

OPTION

Option 001 adds Power Amplifier/Internal DC Bias
Option 006 adds 2 m/4 m Cable Length Operation
