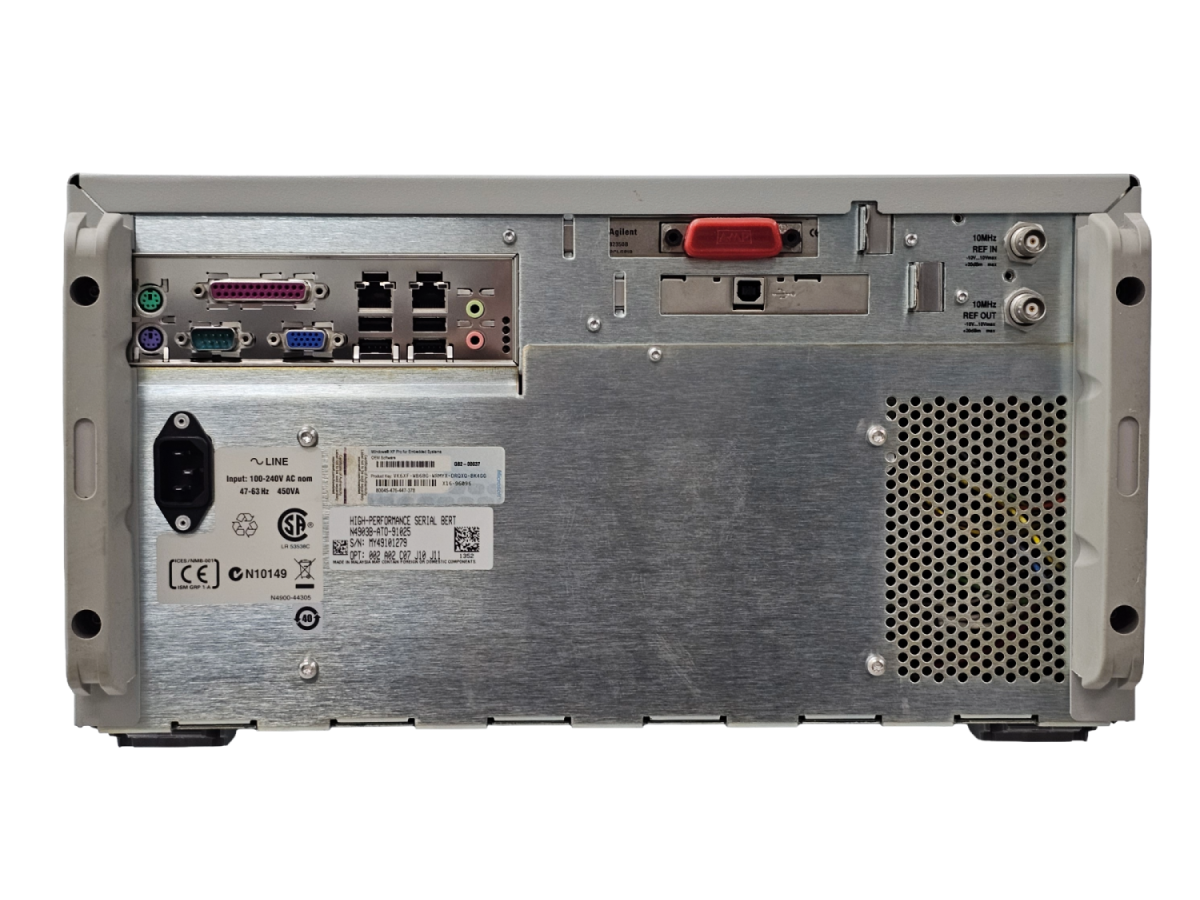

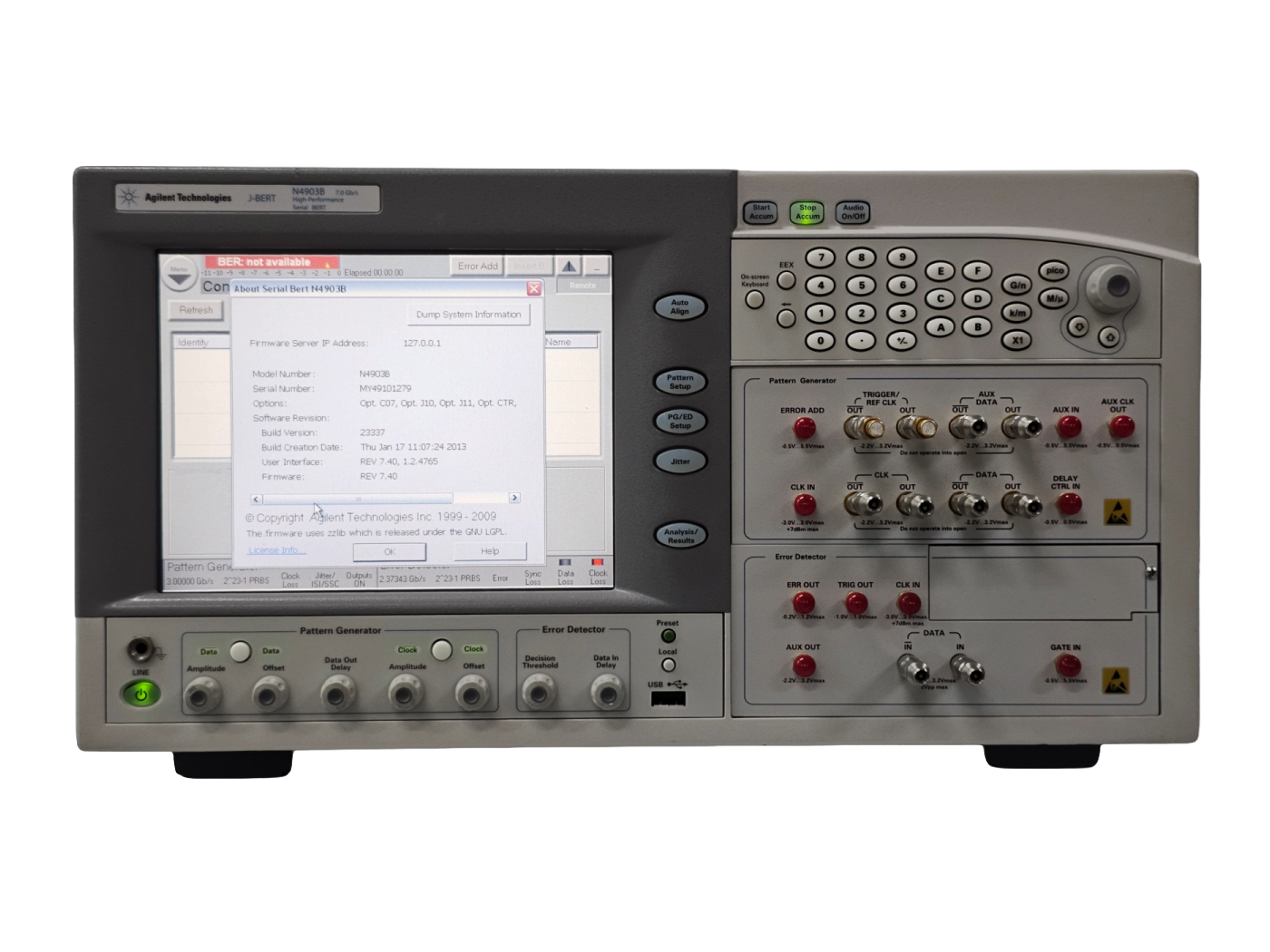

Agilent / High Performance Serial BERT / N4903B/002/A02/C07/CTR/J10/J11

N4903B J-BERT high-performance serial BERT up to 7 Gb/s and 12.5 Gb/s with complete jitter tolerance



Data rates 150 Mb/s to 7 Gb/s or to 12.5 Gb/s pattern generator and error detector. Option to extended data rate to 14.2 Gb/s for pattern generator.

>0.5 UI calibrated, compliant and integrated jitter injection: RJ, RJ-LF, RJ-HF, PJ1, PJ2, SJ, BUJ, ISI, sinusoidal interference, triangular and arbitrary SSC and residual SSC

Excellent signal performance and sensitivity

Built-in clock data recovery with tunable and compliant loop bandwidth

Half-rate clocking with variable duty cycle for forwarded clocked devices

Measures BER, BERT Scan, TJ with RJ/DJ separation, eye diagram, eye mask, BER contour, automated jitter tolerance, pattern capture, frame error rate (FER), or symbol error rate (SER) coded and retimed data streams

Two adjustable data outputs with independent PRBS and pattern with 120 block pattern sequencer

All options are retrofittable and upgrade from N4903A possible

OPTION

데이터 전송 속도 옵션 (Pattern Generator and Error Detector):
N4903B-C07 (7 Gb/s)
N4903B-C13 (12.5 Gb/s)
N4903B-D14 (14.2 Gb/s로 확장)
지터 관련 옵션 (Jitter Injection):
N4903B-J10 (내장된 주기적/정현파/랜덤 지터 주입)
N4903B-J11 (SSC,rSSC Generation)
N4903B-J12 (자동화된 지터 허용 오차 테스트 스위트)
N4903B-J20 (간섭 채널 옵션)
기타 옵션:
N4903B-A01 (비트 복구 모드)
N4903B-A02 (SER/FER 분석)
