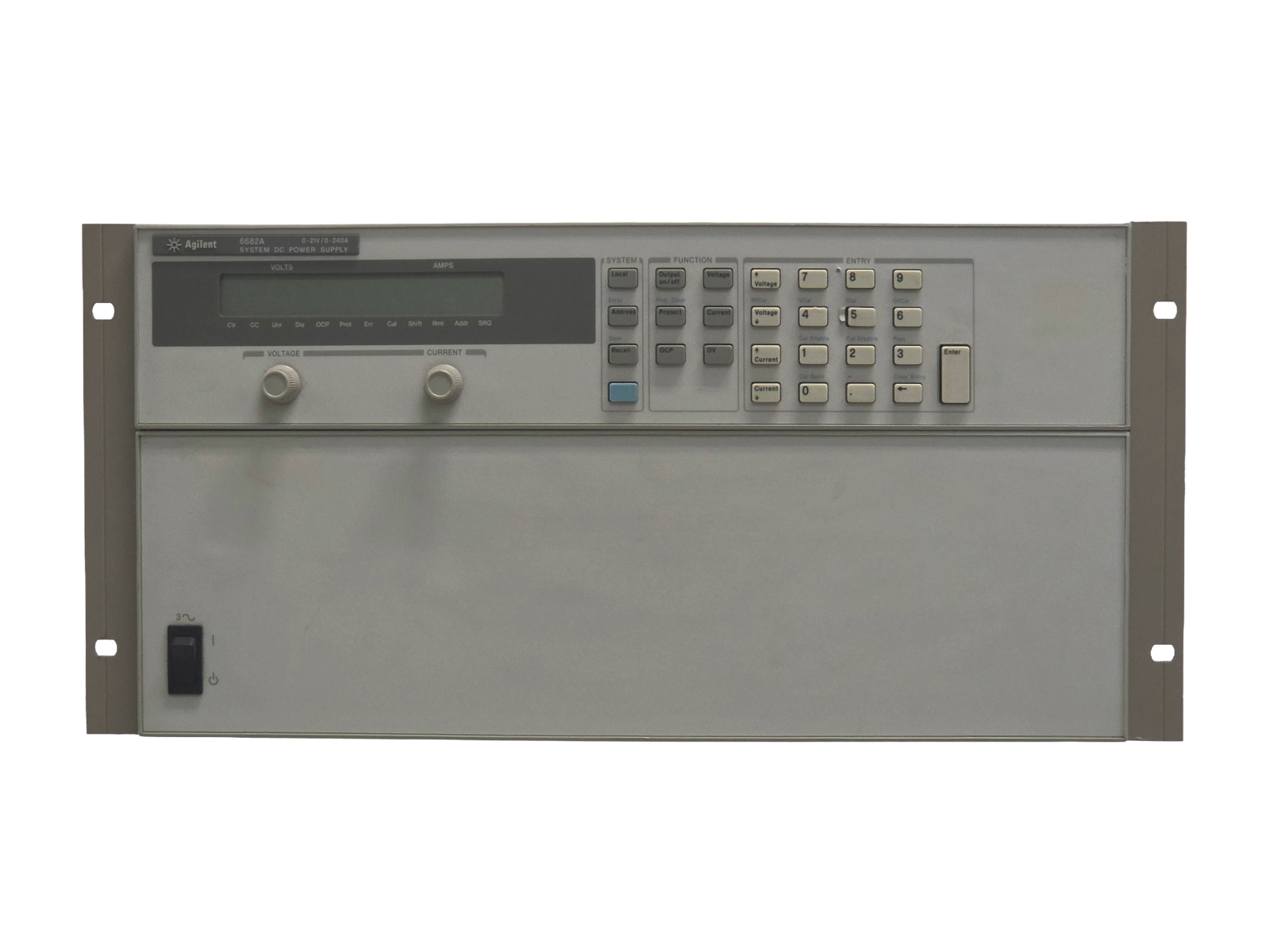

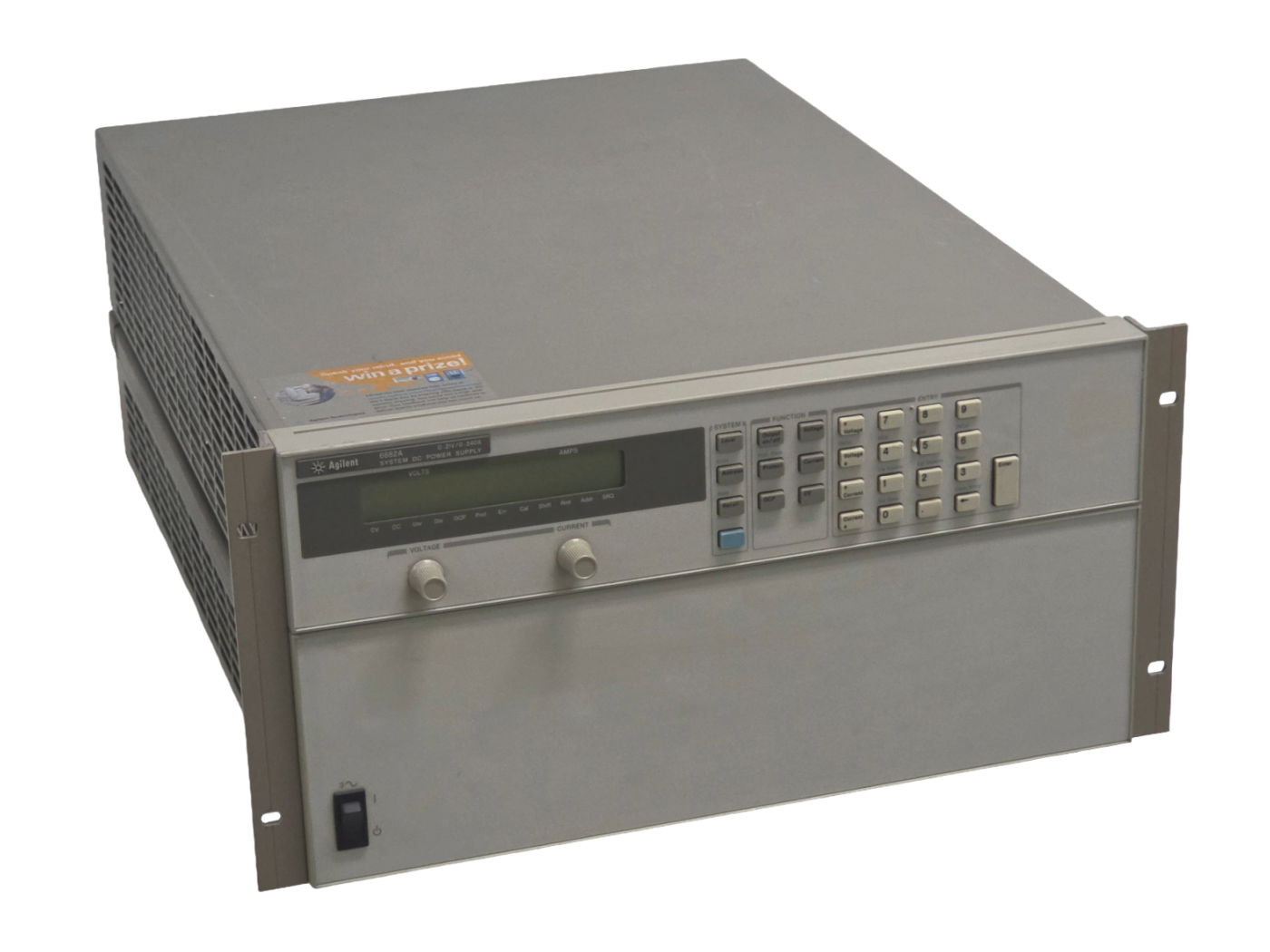

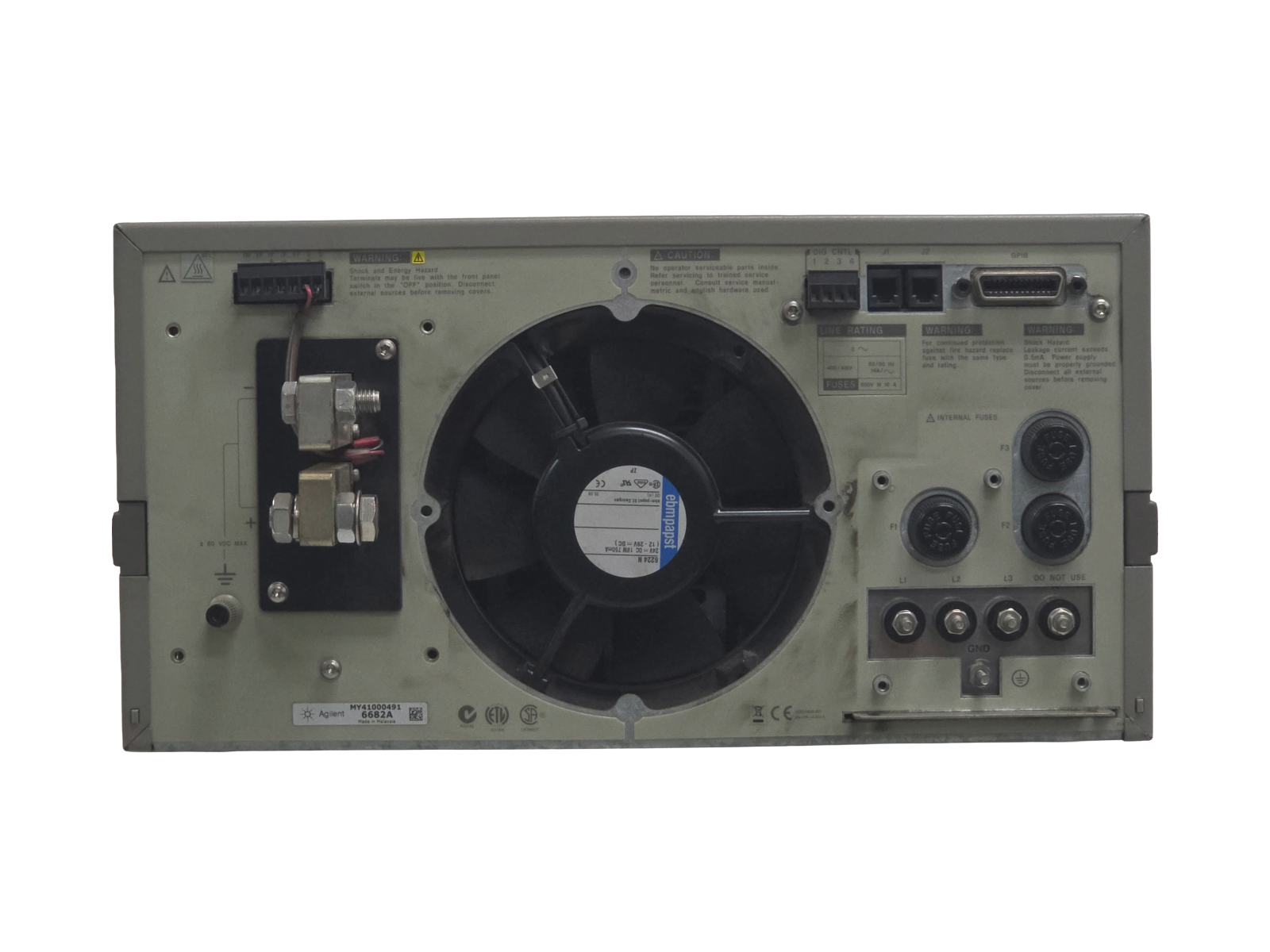

Agilent 6682A Power Supply

Agilent / Power Supply / 6682A

21V, 240A, 5kW System Power Supply

Output Ratings

   Voltage: 0 to 21 V

   Current (40°C then derate linearly 1%/°C from 40°C to 55°C): 0 to 240 A

Programming accuracy at 25°C

   Voltage 0.04% + 21 mV

   Current 0.1% + 125 mA

Ripple and Noise Constant Voltag

   rms: 1.5 mV

   Peak to peak: 10 mV

Readback Accuracy at 25°C

   Voltage 0.05% + 32 mV

   Current 0.1% + 165 mA

OPTION

6682A - 208 - 180 TO 235 VAC, 3 PHASE, 47 TO 63 HZ
6682A - 400 - 360 TO 440 VAC, 3 PHASE, 47 TO 63 HZ
6682A - 602 - TWO BUS BAR SPACERS FOR PARALLELING POWER SUPPLIES
