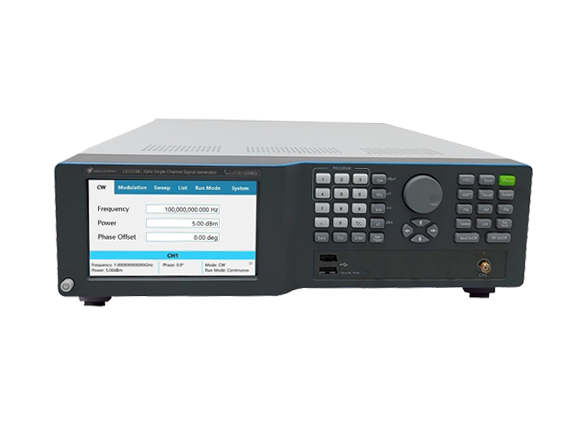

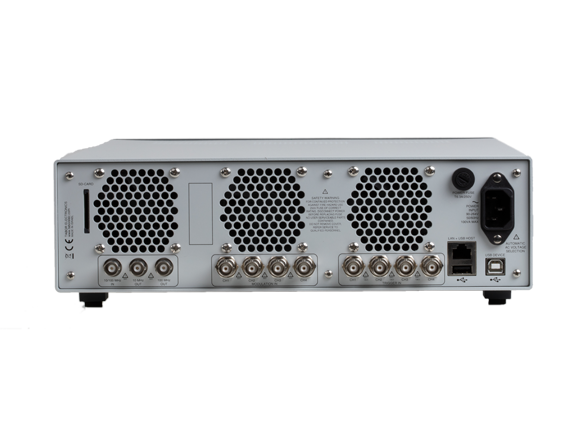

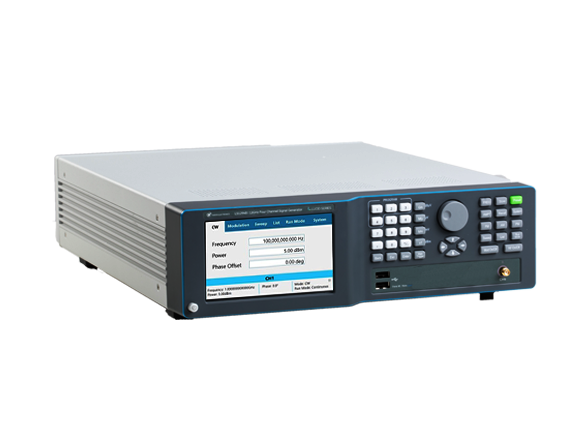

Tabor LS6081B Signal Generator

Tabor / Signal Generator / LS6081B

6GHz Single Channel Signal Generator

The Lucid family of signal generators is a small footprint modular microwave signal generator that is available in multiple form factors, including Desktop, benchtop, rackmount, and portable. It has been designed to provide signal fidelity, with a frequency range up to 12GHz.

● 3GHz, 6GHz, 12GHz RF Analog Signal Generator
● Fast switching speed of <100μs
● AM, FM, PM, Sweep & Pulse Modulation
● Phase Noise of -138dBc/Hz @1GHz and 10@kHz offset
● Compact modular platform

OPTION

Option	Description
PLS	Pulse Gennerator
PAT	Pattern Generator
ELP	Extended Low Power (-150dBc)
EPR	Extended Power Range (-130dBc to +27dB)
FS	Fast Switching option 100us
EMU	Emulator Pack includes emulators for Keysight, R&S, Anapico & Holzworth
WE	1 year warranty extension (standard warranty 3 years)

Accessories

Name	Description
W-Rack 	19" Single Rack Mounting Kit

Note: Options and Accessories must be specified at the time of your purchase.
