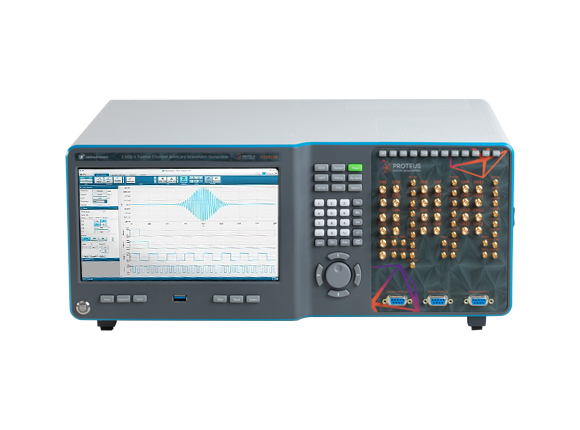

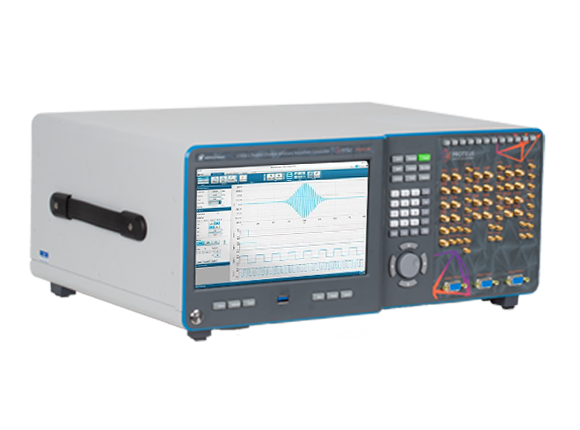

Tabor P9086B Arbitrary Waveform Generator

Tabor / Arbitrary Waveform Generator / P9086B

9GS/s 8 Bit, 4GS Mem 6CH 24 Markers AWG

The Tabor Proteus family is a set of instruments that doesn't just output waveforms but listens, thinks, and reacts in real-time, that is built on an advanced SDR architecture. Whether you're simulating EW Scenarios, controlling qubits, or pushing next-generation wireless communications to its limits, the Proteus combines up to a 9GS/s advanced RF DAC with an optional 5.4GS/s RF ADC to create a transceiver that is the Swiss Army knife for the next generation of RF engineering.

● Modular Design, from 2 to 100's of channels
● Fast PCIe data transfer bus.
● Up to 16GS of memory
● Integrated Digital IQ Modulators and Demodulators
● Excellent phase noise and spurious performance
● Feedback control system for conditional waveform generation

OPTION

Option	Description

4M4	4GS Memory option
8M4	8GS Memory option
16M3	16GS Memory option
DO4	9GHz BW Direct Output
LTJ4	Ultra Low Trigger Jitter (200ps typ.)
G4	Low Waveform Granularity
SEC	Removable SSD option for security needs
SSD	Extra Factory Duplicated Solid State Drive (SSD) for option SEC
TRG	Faster trigger input (50MHz instead of 10MHz)
STM 	Up to 3GS/s Streaming capability

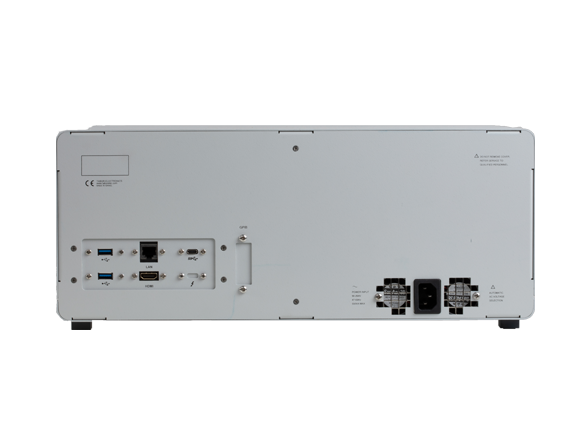

TBolt 	Rear panel Thunderbolt3 USB (type C)
SFP+ 	Rear panel 10G optical SFP+ connectivity (replace the LAN)
WE	1 year warranty extension (standard warranty 3 years)

Note: Options and Accessories must be specified at the time of your purchase.
