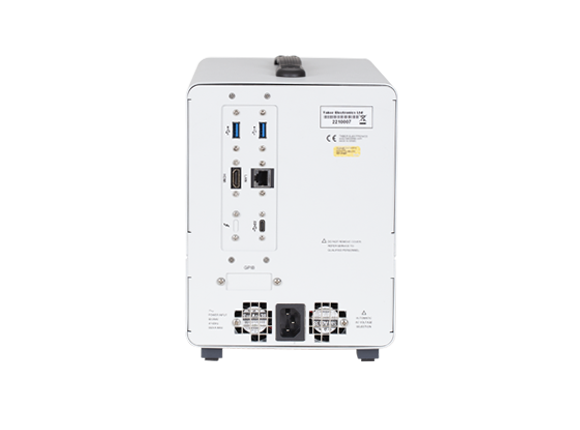

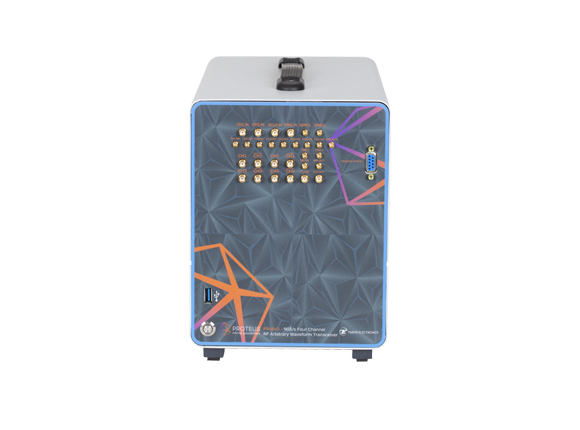

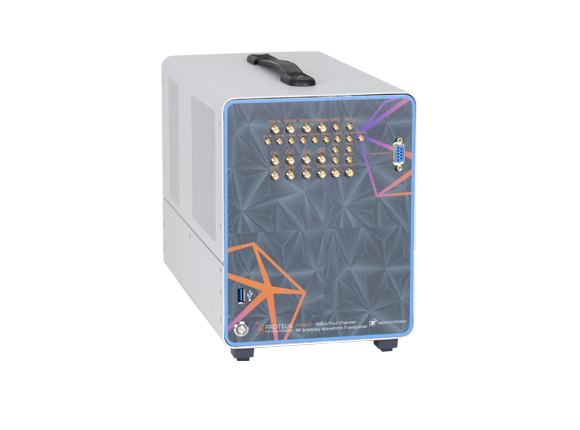

Tabor P1284D Arbitrary Waveform Generator

Tabor / Arbitrary Waveform Generator / P1284D

1.25GS/s 16Bit 1GS Mem 4CH 4 Markers AWG

The Tabor Proteus family is a set of instruments that doesn't just output waveforms but listens, thinks, and reacts in real-time, that is built on an advanced SDR architecture. Whether you're simulating EW Scenarios, controlling qubits, or pushing next-generation wireless communications to its limits, the Proteus combines up to a 9GS/s advanced RF DAC with an optional 5.4GS/s RF ADC to create a transceiver that is the Swiss Army knife for the next generation of RF engineering.

● Modular Design, from 2 to 100's of channels
● Fast PCIe data transfer bus.
● Up to 16GS of memory
● Integrated Digital IQ Modulators and Demodulators
● Excellent phase noise and spurious performance
● Feedback control system for conditional waveform generation

OPTION

Name	Description

Option 4M2	4GS Memory option
Option 8M2	8GS Memory option
Option DO2	9GHz BW Direct Output
Option DJ2	Dynamic Jump Input
Option MRK2	x8 Extra Markers
Option LTJ2	Ultra Low Trigger Jitter (200ps typ.)
Option G2	Low Waveform Granularity
SEC	Removable SSD option for security needs
SSD	Extra Factory Duplicated Solid State Drive (SSD) for option SEC
TRG	Faster trigger input (50MHz instead of 10MHz)
AWT	5.4GS/s Single, 2.7GS/s Dual Channel 12 Bit Digitizer
STM	Up to 3GS/s Streaming capability
TBolt	Rear panel Thunderbolt3 USB (type C)
SFP+	Rear panel 10G optical SFP+ connectivity (replace the LAN)
WE	1 year warranty extension (standard warranty 3 years)

Note: Options and Accessories must be specified at the time of your purchase.
