Tabor P25812D Arbitrary Waveform Generator

Tabor / Arbitrary Waveform Generator / P25812D

2.5GS/s 16Bit 2GS Mem 12CH 24 Markers AWG

The Proteus P25812D, is a 2.5GS/s, twelve channel arbitrary waveform generator packaged in a 4U, half 19” dedicated chassis, offering technologically advanced options and configurations that integrate the ability to transmit, receive and perform digital signal processing all in a single instrument. The P25812D offers industry leading performance Including an innovative task oriented programming, real time data streaming, fast feedback loop for environment dependent waveform generation and user customizable FPGA for application specific solutions.

● Twelve channel 2.5GS/s 16 bit AWG & AWT configurations
● 8GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
● Excellent phase noise and spurious performance
● Integrated NCO for digital up-converting to microwave frequencies

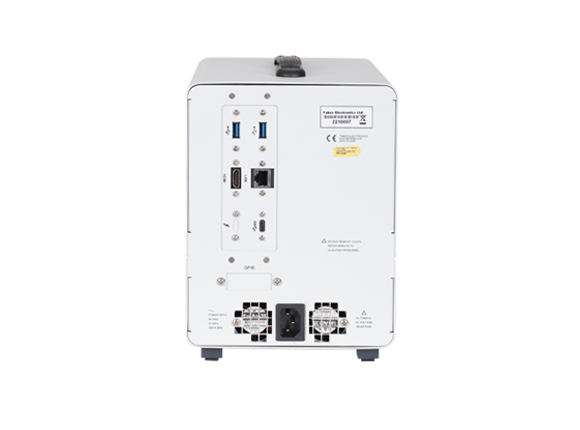

● Space efficient desktop platform, with USB 3.0, 10G Ethernet and thunderbolt high speed interfaces.
● Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms

OPTION

Option	Description

4M4	4GS Memory option
8M4	8GS Memory option
DO4	9GHz BW Direct Output
LTJ4	Ultra Low Trigger Jitter (200ps typ.)
G4	Low Waveform Granularity
DUC	Digital UpConverter
SEC	Removable SSD option for security needs
SSD	Extra Factory Duplicated Solid State Drive (SSD) for option SEC
TRG	Faster trigger input (50MHz instead of 10MHz)
STM	Up to 3GS/s Streaming capability
TBolt 	Rear panel Thunderbolt3 USB (type C)
SFP+ 	Rear panel 10G optical SFP+ connectivity (replace the LAN)
WE	1 year warranty extension (standard warranty 3 years)

Note: Options and Accessories must be specified at the time of your purchase.
