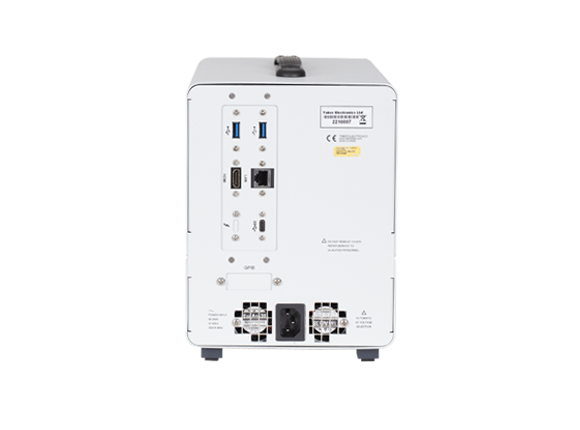

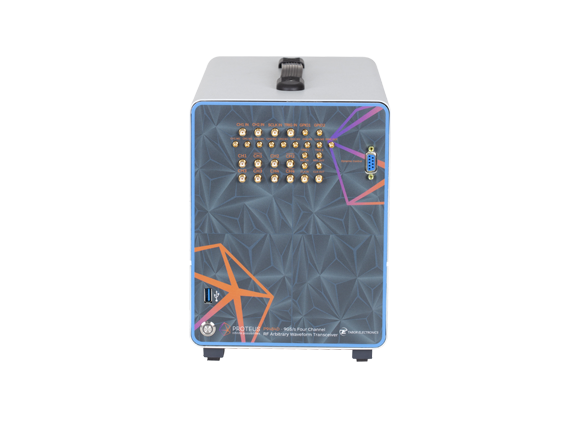

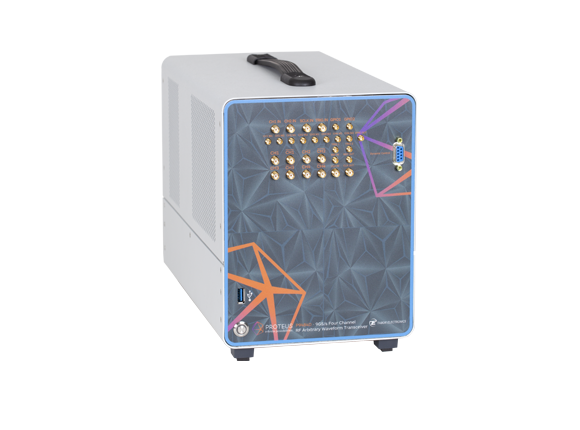

Tabor P9482D Arbitrary Waveform Generator

Tabor / Arbitrary Waveform Generator / P9482D

9GS/s 16Bit 8GS Mem 2CH 8 Markers RF AWG Module

The Tabor Proteus family is a set of instruments that doesn't just output waveforms but listens, thinks, and reacts in real-time, that is built on an advanced SDR architecture. Whether you're simulating EW Scenarios, controlling qubits, or pushing next-generation wireless communications to its limits, the Proteus combines up to a 9GS/s advanced RF DAC with an optional 5.4GS/s RF ADC to create a transceiver that is the Swiss Army knife for the next generation of RF engineering.

● Modular Design, from 2 to 100's of channels
● Fast PCIe data transfer bus.
● Up to 16GS of memory
● Integrated Digital IQ Modulators and Demodulators
● Excellent phase noise and spurious performance
● Feedback control system for conditional waveform generation

OPTION

Option	Description

4M1	4GS Memory option
8M1	8GS Memory option
DO1	9GHz BW Direct Output
DJ1	Dynamic Jump Control
MRK1	x4 Extra Markers
LTJ1	Ultra Low Trigger Jitter (200ps typ.)
G1	Low Waveform Granularity
TRG	Faster trigger input (50MHz instead of 10MHz)
AWT	5.4GS/s Single, 2.7GS/s Dual Channel 12 Bit Digitizer option
STM 	Up to 6GS/s Streaming capability
FPGA PROG	High level FPGA programming using built in DSP blocks and SCPI commands
Shell Core	Programmable FPGA with open core for user embedded IP
WE	1 year warranty extension (standard warranty 3 years)

Note: Options and Accessories must be specified at the time of your purchase.
