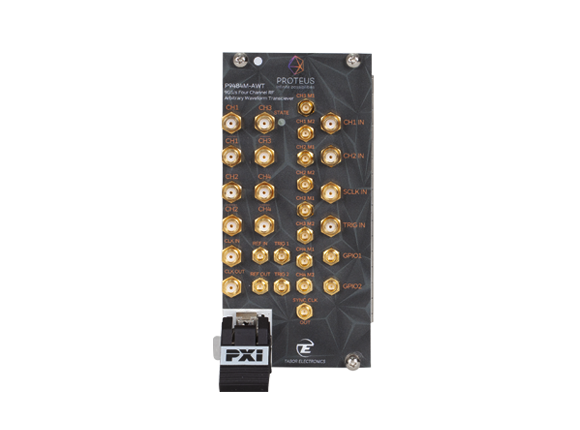

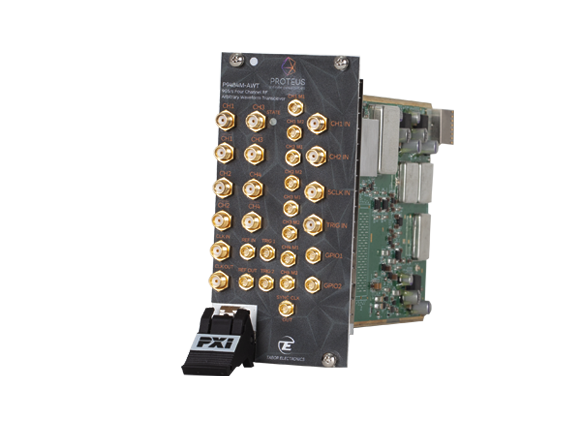

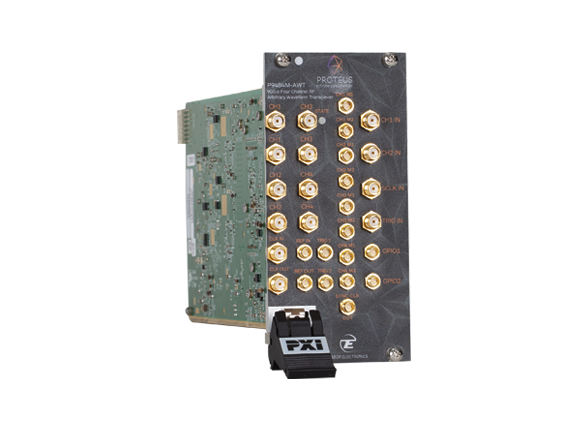

Tabor P2582M Arbitrary Waveform Generator

Tabor / Arbitrary Waveform Generator / P2582M

2.5GS/s 16Bit 1GS Mem 2CH 8 Markers AWG

The Tabor Proteus family is a set of instruments that doesn't just output waveforms but listens, thinks, and reacts in real-time, that is built on an advanced SDR architecture. Whether you're simulating EW Scenarios, controlling qubits, or pushing next-generation wireless communications to its limits, the Proteus combines up to a 9GS/s advanced RF DAC with an optional 5.4GS/s RF ADC to create a transceiver that is the Swiss Army knife for the next generation of RF engineering.



Modular Design, from 2 to 100's of channels

Fast PCIe data transfer bus.

Up to 16GS of memory

Integrated Digital IQ Modulators and Demodulators

Excellent phase noise and spurious performance

Feedback control system for conditional waveform generation

OPTION

Option	Description
4M1	4GS Memory option
8M1	8GS Memory option
DO1	9GHz BW Direct Output
DJ1	Dynamic Jump Input
IM1	Interpolation Mode
MRK1	x4 Extra Markers
LTJ1	Ultra Low Trigger Jitter (200ps typ.)
G1	Low Waveform Granularity
DUC	Digital UpConverter
TRG	Faster trigger input (50MHz instead of 10MHz)
AWT	5.4GS/s Single, 2.7GS/s Dual Channel 12 Bit Digitizer option
STM	Up to 6GS/s Streaming capability
FPGA PROG	High level FPGA programming using built in DSP blocks and SCPI commands
Shell Core	Programmable FPGA with open core for user embedded IP
WE	1 year warranty extension (standard warranty 3 years)

Note: Options and Accessories must be specified at the time of your purchase.
