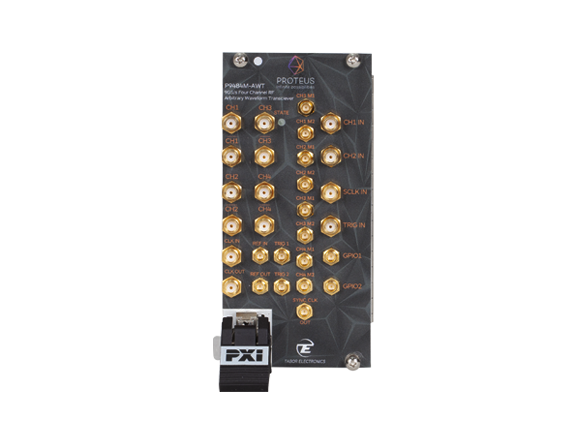

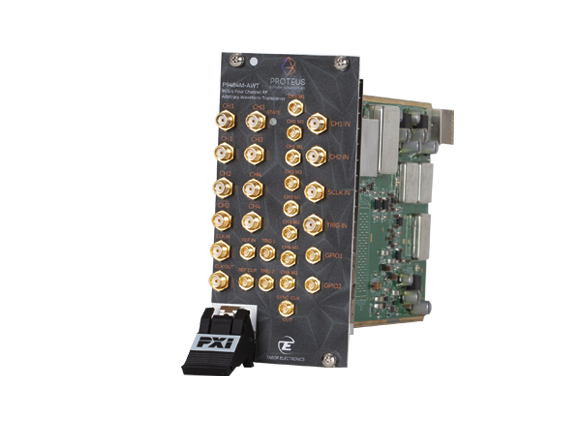

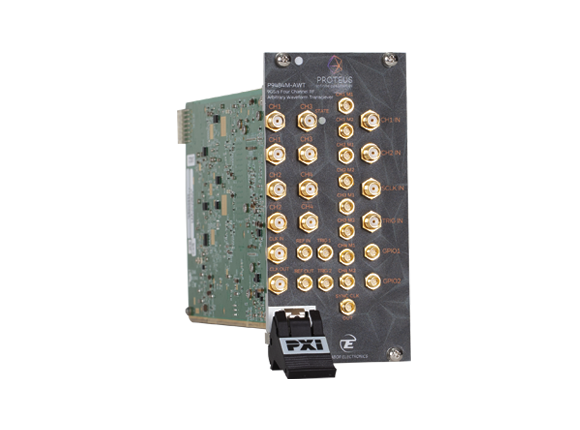

Tabor P2584M Arbitrary Waveform Generator

Tabor / Arbitrary Waveform Generator / P2584M

2.5GS/s 16Bit 1GS Mem 4CH 8 Markers AWG

The Tabor Proteus family is a set of instruments that doesn't just output waveforms but listens, thinks, and reacts in real-time, that is built on an advanced SDR architecture. Whether you're simulating EW Scenarios, controlling qubits, or pushing next-generation wireless communications to its limits, the Proteus combines up to a 9GS/s advanced RF DAC with an optional 5.4GS/s RF ADC to create a transceiver that is the Swiss Army knife for the next generation of RF engineering.

● Modular Design, from 2 to 100's of channels
● Fast PCIe data transfer bus.
● Up to 16GS of memory
● Integrated Digital IQ Modulators and Demodulators
● Excellent phase noise and spurious performance
● Feedback control system for conditional waveform generation

OPTION

Option	Description
4M2	4GS Memory option
8M2	8GS Memory option
DO2	9GHz BW Direct Output
DJ2	Dynamic Jump Input
IM1	Interpolation Mode
MRK2	x8 Extra Markers
LTJ2	Ultra Low Trigger Jitter (200ps typ.)
G2	Low Waveform Granularity
DUC	Digital UpConverter
TRG	Faster trigger input (50MHz instead of 10MHz)
AWT	5.4GS/s Single, 2.7GS/s Dual Channel 12 Bit 1CH Digitizer
STM	Up to 6GS/s Streaming capability
FPGA PROG	High level FPGA programming using built in DSP blocks and SCPI commands
Shell Core	Programmable FPGA with open core for user embedded IP
WE	1 year warranty extension (standard warranty 3 years)

Note: Options and Accessories must be specified at the time of your purchase.
