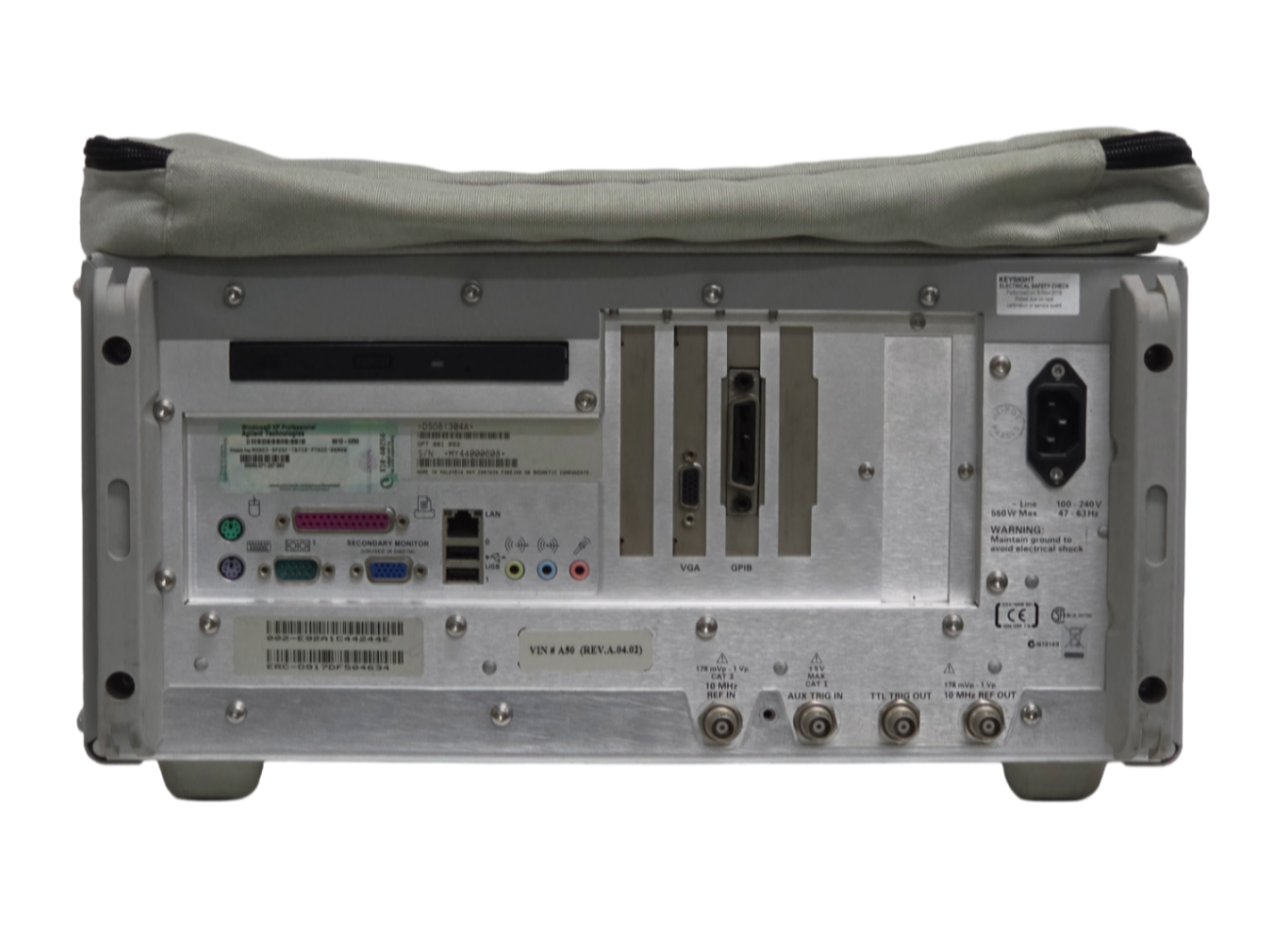

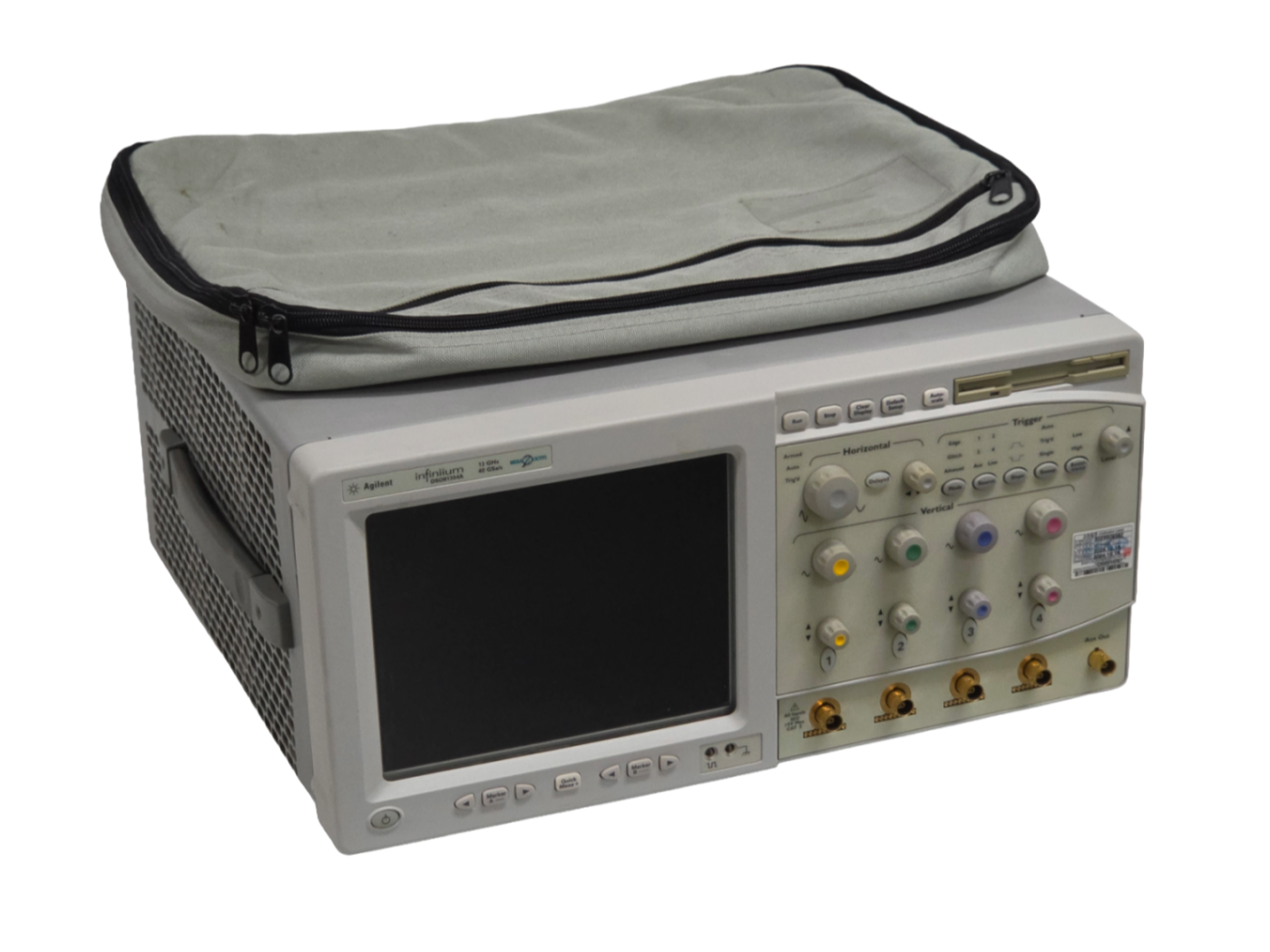

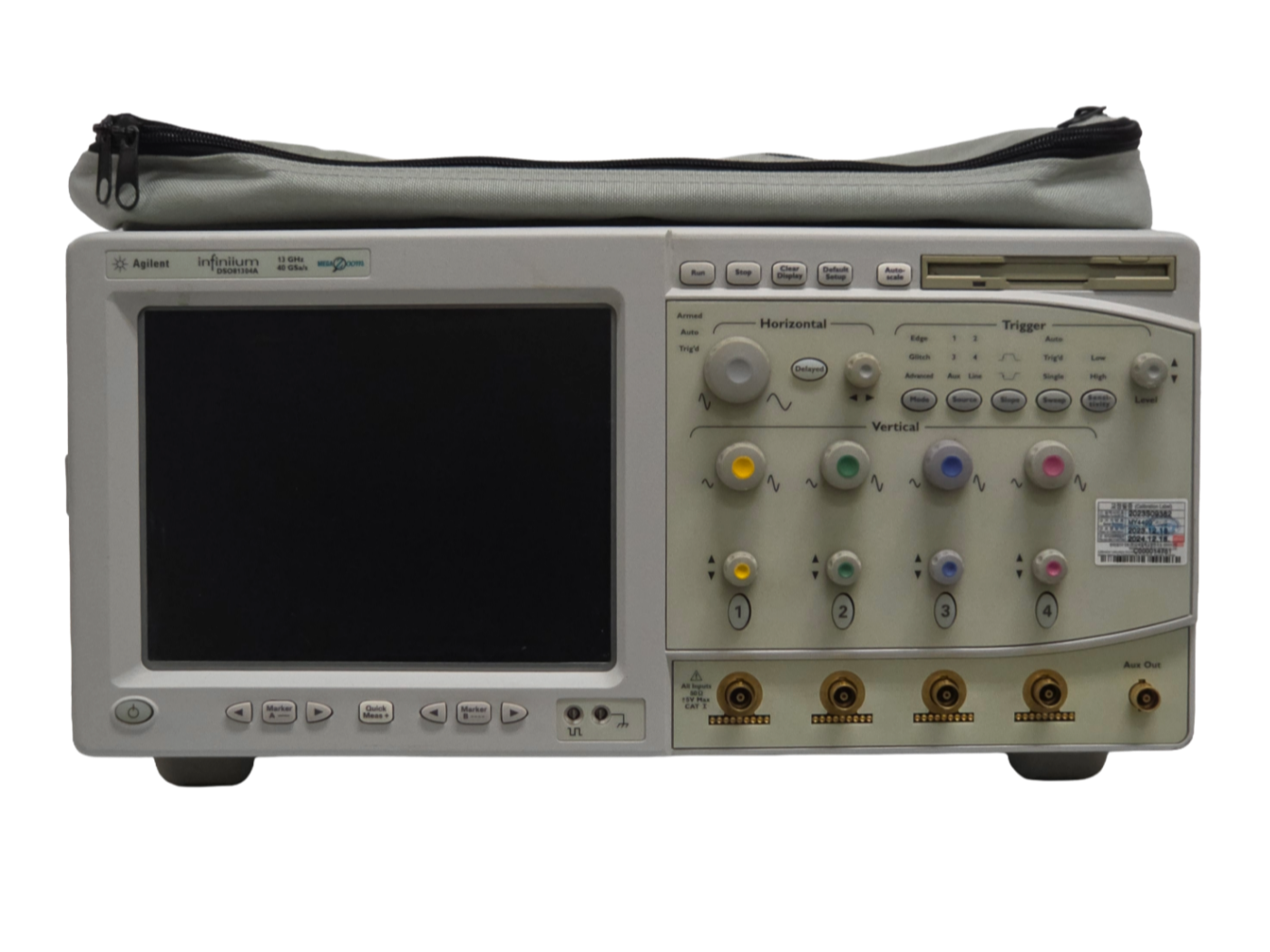

Agilent DSO81304A/001/005/093 Oscilloscope Digital

Agilent / Oscilloscope Digital / DSO81304A/001/005/093

13GHz Ultra-High Performance Infiniium Oscilloscope
13-GHz Bandwidth, upgradeable to 13 GHz

• 4 analog channels
• Up to 40 GSa/s sample rate
• Standard 512 kpts memory with optional 2 Mpts memory (64 Mpts at 4 GSa/s) optional 2 Mpts memory
• XGA display with 256 levels of intensity grading

Industry Leading Signal Integrity

• Noise floor: 419 uV @5 mV/div
• Trigger jitter < 500 fs (rms)
• Lowest hardware vertical sensitivity: 5 mV/div
• Industry´s only noise reduction option (opt 005)

Largest Selection of Application Solutions

• Complete set of jitter analysis packages
• Complete set of customization packages including User Defined Functions, link to MatLab®
• Compliance solutions for many serial standards like FBD, Certified Wireless USB, PCI Express II and more Compliance solutions

InfiniiMax Probing Solutions (1.5 GHz - 12 GHz)

• Industry´s lowest noise floor probing system
• Highest signal fidelity InfiniiMax II probing system
• Interchangeable probe heads
• Industry´s only RoHS compliance solder-in probing solution

OPTION

001 : Memory
005 : Niose Reduction, Enhanced Bandwidth
093 : External Reference Clock
