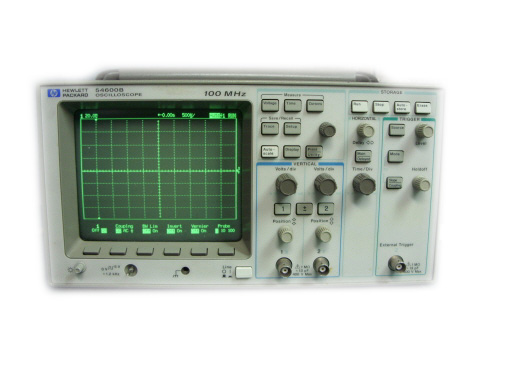

Agilent/HP / Oscilloscope Digital / 54600B

Bandwidth : 100 MHz Number of Channels : 2 ch Simultaneous Channels : 2 ch Simultaneous Maximum Sampling Rate/ch : 20 MSa/s One ch. only max. sampling rate : 20 MSa/s Max. Single Shot bandwidth : 2 MHz Max. Record Length : 4000 pt/sec Min. Vertical Sensitivity : 2 mV/div Maximum Vertical Sensitivity : 5 V/div Rise time : 3.5 ns Number of Bits : 8 bits Input Impedance : 1 MOhm Input Coupling : AC,DC,GND Maximum Input Voltage : 400 Vrms Main time base - lowest : 2 ns/div Main time base - highest : 5 s/div Timebase accuracy : 0.01 % Trigger Source : External,Internal Trigger Modes : Auto,Single,Trigger,TV Trigger Sensitivity : 3.5 mV Minimum Glitch Trigger : 1 ns Display Type : CRT Monochrome Type (D/A) : Digital
