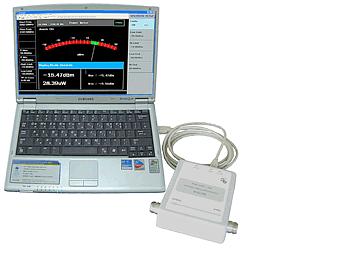

Gencomm GC731A Power Sensor
Gencomm / Power Sensor / GC731A
Frequency Range 300 ~ 3800MHz Power Range Average Power: 0.15W ~ 150W Peak Power: 4 ~ 400W Measurement Uncertainty ±4% of reading + 0.05W (If Temp > 35ºC or Temp < 15 ºC add 3%) Return loss 27 dB min Directivity 27 dB min Insertion loss Type 0.05 dB (Max 0.1dB) RF connectors N- Female on both ends
OPTION
- Manufacturer : Gencomm
- Product : Power Sensor
- Model : GC731A <new>
- Link : none
- Tel Service : 02-3666-6341
- File-1 : none
- File-2 : none
- File-3 : none
- UserPrice : ₩1,950,000
- RentalPrice :Call
- 견적 문의
