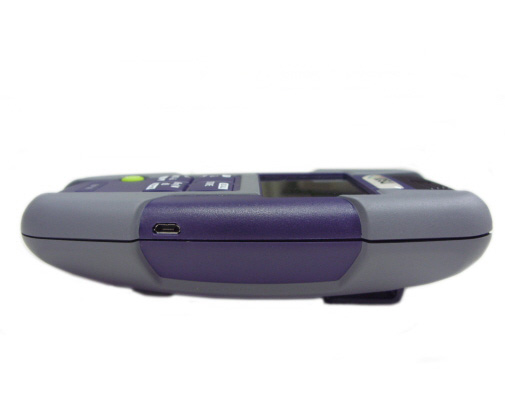

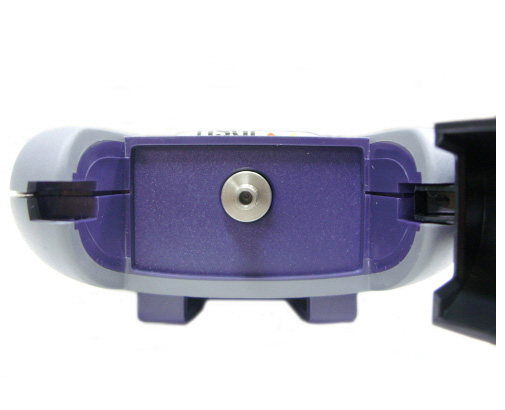

JDSU OLP-38 Optical Power Meter

JDSU / Optical Power Meter / OLP-38

Detector type Filtered InGaAs Optical interface / connectors Universal 2.5 mm / 1.25 mm Wavelength range 780 to 1650 nm Wavelength settings 780 to 1600 nm, step size 1 nm Programmable wavelengths 5 presets (customized) Calibrated wavelengths 850, 1300, 1310, 1490, 1550, 1625 nm Power Range -50 to +26 dBm Display range -50 to +26 dBm Max. input power +27 dBm Absolute uncertainty ± 0.13 sdB (± 3%) with 1.25mm UPP adapter as accessory Linearity (-5 to +45°C) 0.06 dB (-32 to +20 dBm) Tone detection 270 Hz, 1 kHz, 2 kHz Auto λ mode Yes Multi λ mode TwinTest / serial TripleTest Internal memory 100 results Data read out micro USB for PC transfer and AC power Operating temperature -10 to +55°C / 14 to 131°F
