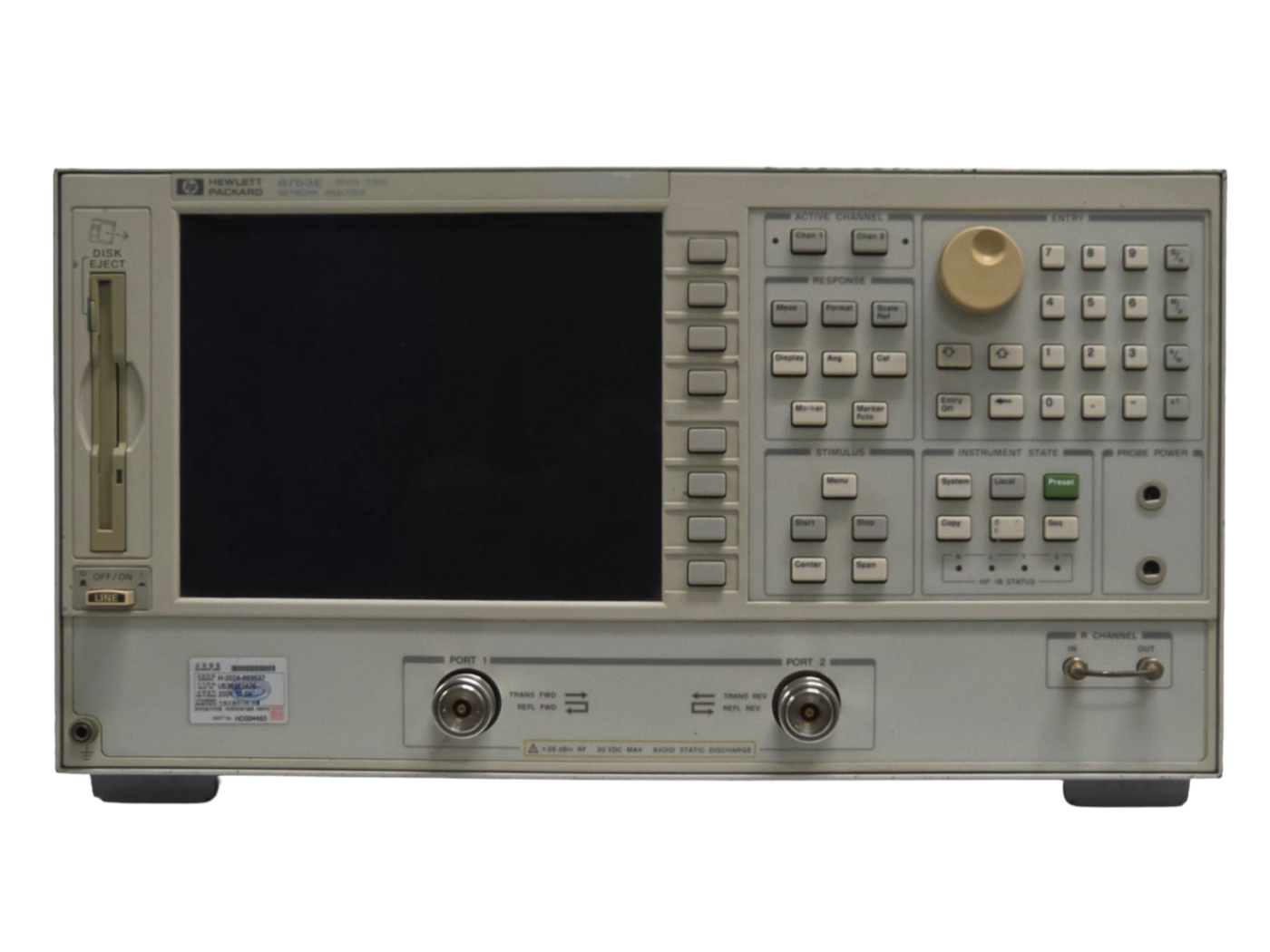

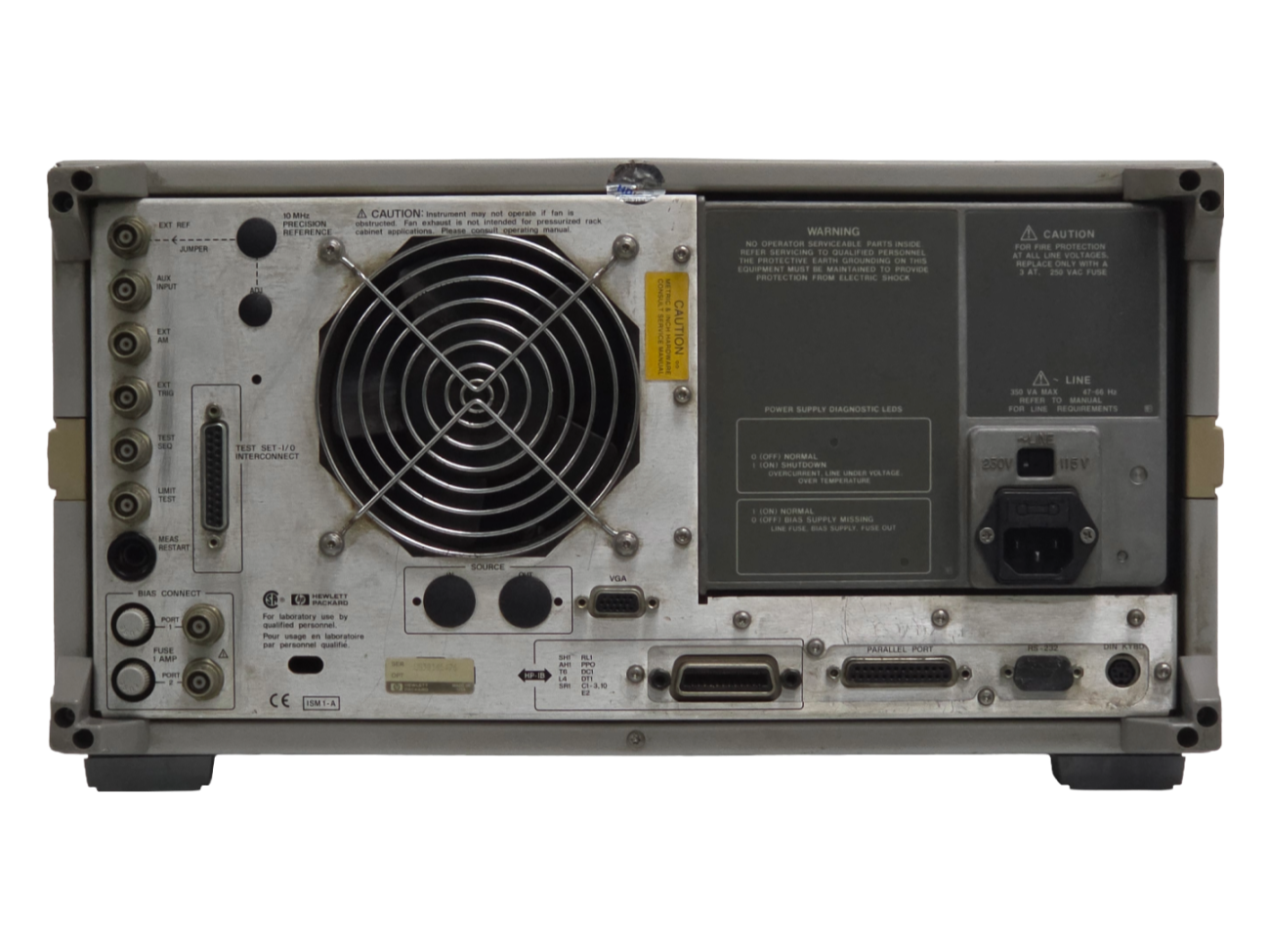

Agilent/HP / Network Analyzer / 8753E

Type : Vector Integral Signal Source : Yes Integral Test Set : S-Parameter Source Frequency Range : 30 kHz ~ 3 GHz Source Frequency Resolution : 1 Hz Source Frequency Accuracy : 0.001 % - Frequency Accuracy : +/- 10 ppm Minimum Output Power : 3.1622E-12 Watts Maximum Output Power : 10 mW - Output Power Range : -85 dBm ~ +10 dBm Power Resolution : 0.05 dB Output Accuracy : 1 dB Output Impedance : 50 Ohm No. of Receiver Channels : 1 ch Receiver Minimum Frequency : 30 kHz Receiver Maximum Frequency : 3 GHz Maximum Dynamic Range : 110 dB Minimum Displayed Average Noise : -102 dBm Maximum Displayed Average Noise : -77 dBm Maximum Input Decibel : 10 dBm

OPTION
