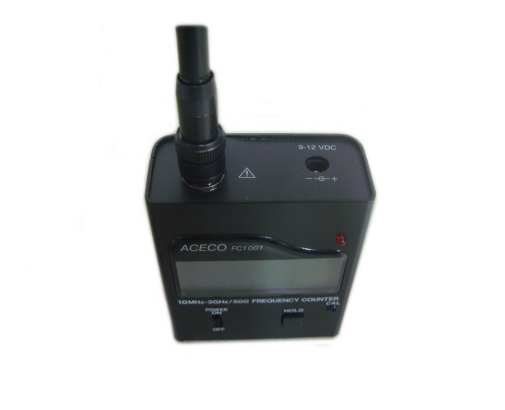

ACECO FC1001 Frequency Counter

ACECO / Frequency Counter / FC1001

Frequency range  10 MHz - 3 GHz
Weight  210 g
Size  80 mm high x 68 mm wide x 31 mm deep
Impedance  50 Ohms (BNC Socket)
Case Stamped aluminum with black anodized finish
Battery Internal 4 x AA 600 mAH NiCd pack
Power 9 VDC 300 mA
Timebase Less than 1 PPM at room temperature

Cordless Phone 0.3 meters
Cellular Phone 3 - 20 m
CB radio 2 - 8 m
VHF Two Way Radio 3 - 30 m
UHF Two Way Radio 3 - 30 m
Amplifier 50 Ohm

Impedance 50 Ohm VSWR less than 2:1
Range 10 MHz - 3 GHz
Sensitivity
< 0.8 mV at 100 MHz
< 6 mV at 300 MHz
< 7 mV at 1.0 GHz
< 100 mV at 2.4 GHz
Max. input 15 dBm

OPTION
