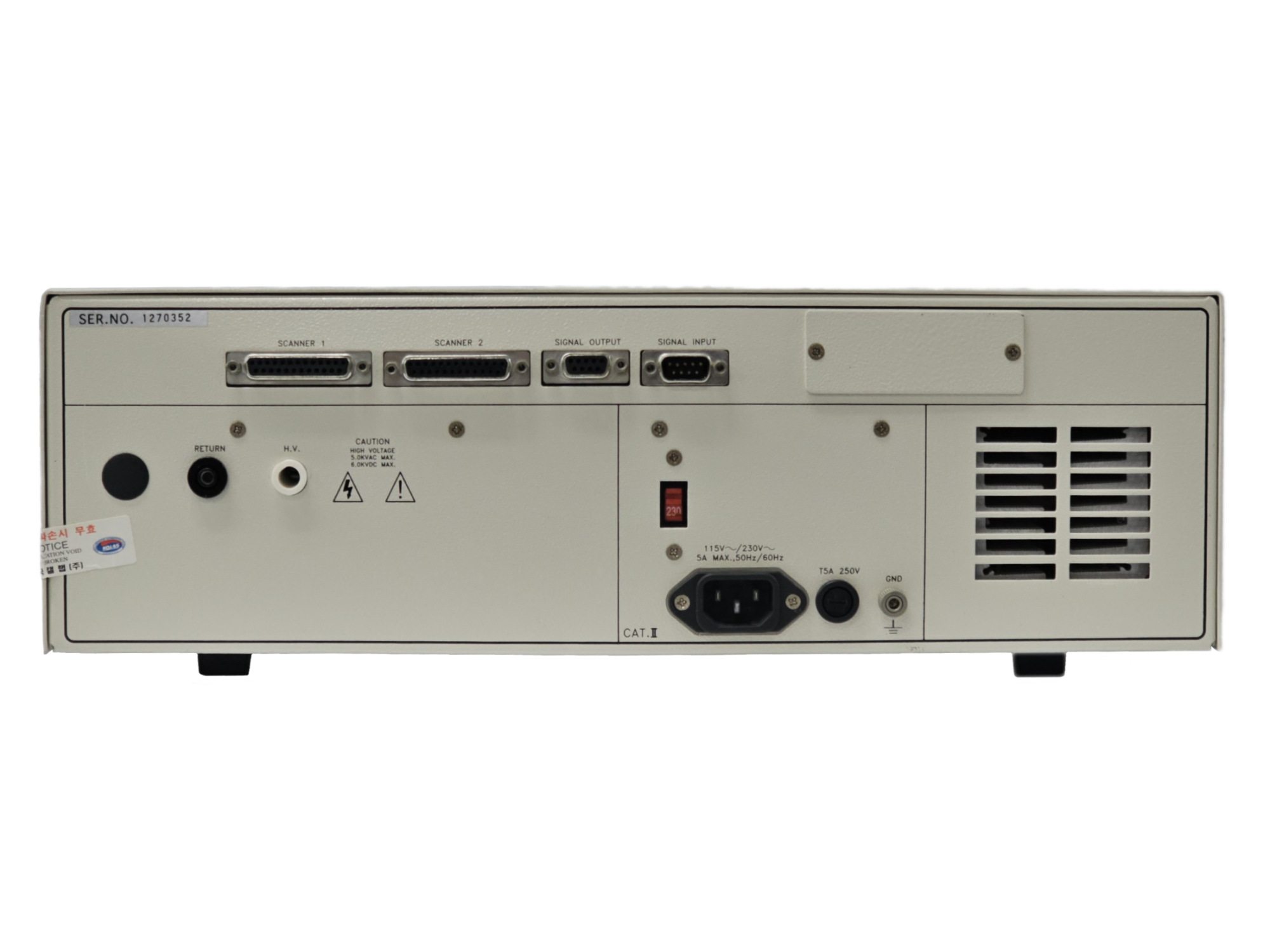

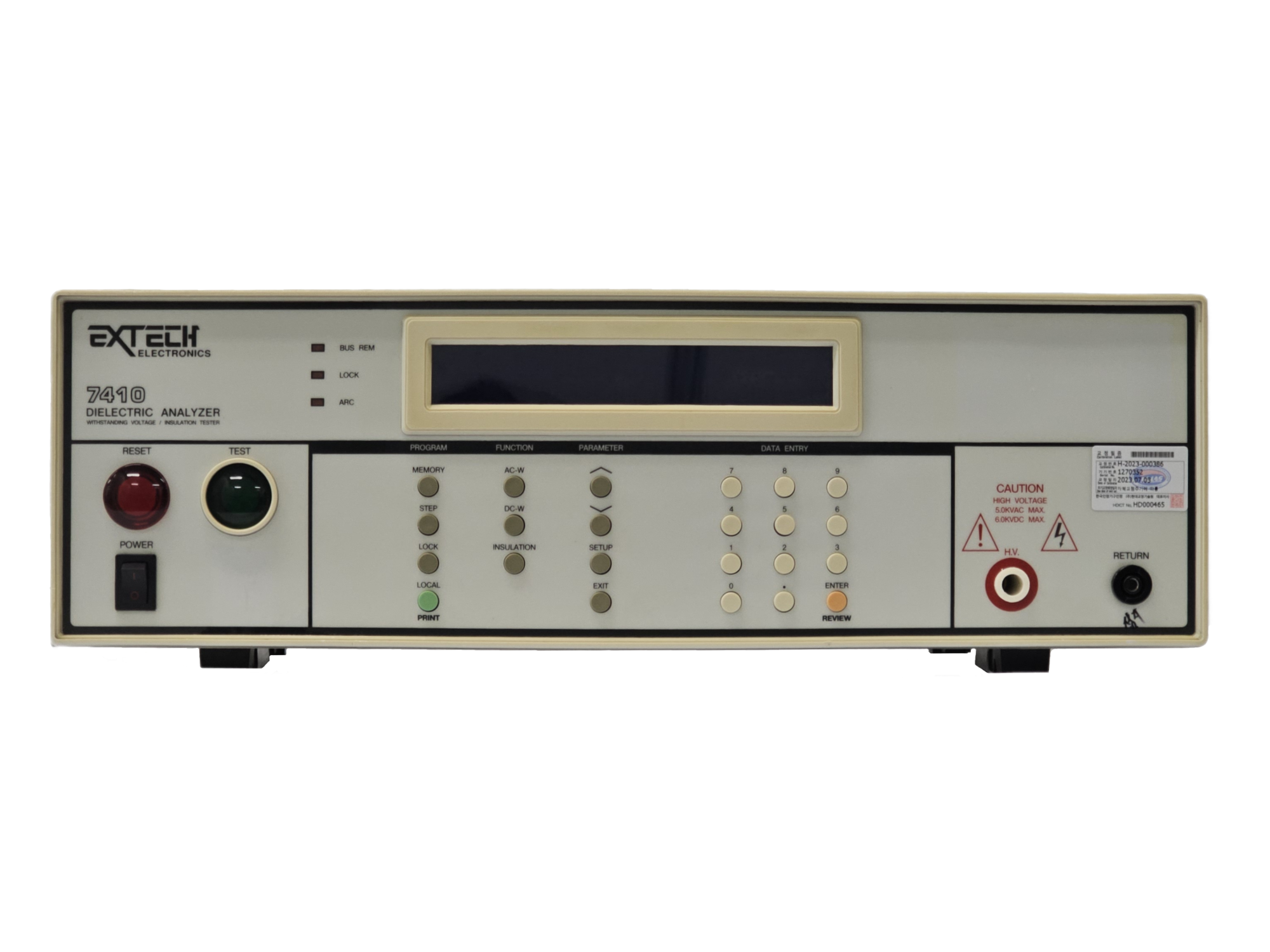

EXTECH 7410 W/I Auto Tester

EXTECH / W/I Auto Tester / 7410

AC WITHSTAND VOLTAGE Output Rating 5KVAC/30mA Output Voltage,ACV 0 - 5000 Output Frequency 50Hz/60Hz ±100ppm, User Selection Output Waveform Sine Wave ,THD.<2% (Resistive Load), Crest Factor = 1.3 - 1.5 Output Regulation ± (1% of output + 5V), From no load to full load Hi-Limit AC Current, mA 0-30.00 Resolution : 0.01, Accuracy : ±（2% of setting + 3counts） Lo-Limit AC Current, mA Range : 0 - 9.999 Resolution : 0.001, Accuracy : ±（2% of setting + 3counts） Ramp Time, second 0.1 - 999.9 Dwell Time, second 0, 0.3 - 999.9 (0=continuous) Arc Detection 1 - 9 ranges (9 is the most sensitivity) AC Current Offset, mA 0 - 2.000 or Auto Set Output Rating 6KVDC/9999µA Output Voltage, DCV 0 - 6000 자세한 사양은 http://www.extech-electronics.com/specificationhtm/7400_Series.htm참조

OPTION
