ETCR ETCR6300 Leakage Current Tester

ETCR / Leakage Current Tester / ETCR6300

Function
AC leakage measurement, AC current measurement, On-line AC current measurement
Power Supply
6F22 9V  Zi-Mn dry battery 6F22 9V
Process Type
Clamp CT, Integral Approach
Display Type
4 Digits LCD
Clamp Size
25mm×30mm
Meter Dimension
LWH: 175mm×70mm×38mm
LCD Dimension
35mm×21.5mm; Display Dimension: 32mm×15mm
Sampling Rate
2 Times/Second
Frequency
50Hz, 60Hz Automatic identification
Shifting
Automatic Shift
Range
0.00mA～60.00A
Resolution
1uA
Accuracy
±1.5%±5dgt (23℃±3℃, below 70%RH)
Line voltage
Below AC 600V

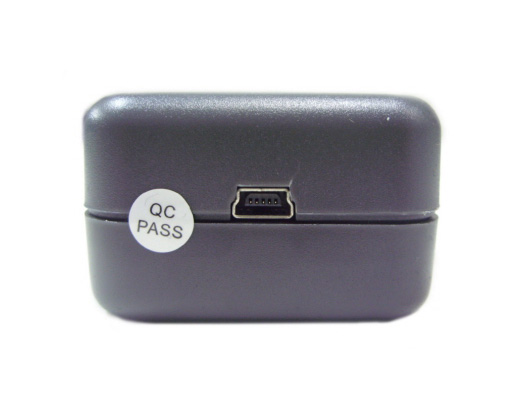

RS232 Interface
With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring
Data Memory
99 sets, “FULL” Blinking when memory is full
Peak Maintaining
Peak value capture hold function, press HOLD without Release to display peak value
Reading Hold
Reading hold function: “DH” symbol display
Overflow display
Range overflow function: “OL” symbol display
Automatic Shutdown
5 minutes after the boot
Battery Detection
When battery voltage is lower than 7.2V, low battery symbol      will shown to remind battery replacement.
Meter Weight
120g (With battery)
Rated Power
5mW
Working Temperature and Humidity
0℃～40℃; below 80%rh
Storage Temperature and Humidity
-10℃～60℃; below 70%rh
Insulation Strength
AC2kV/rms (between core and box)
Safety Provisions
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)

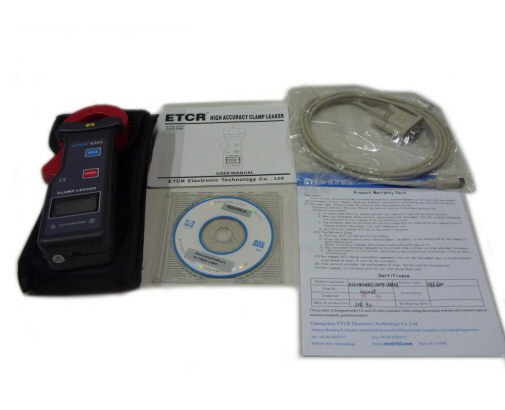

Accessories
Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece
