Siglent SDS1304CFL Oscilloscope Digital

Siglent / Oscilloscope Digital / SDS1304CFL

300(4CH) /2GSa/s /24K/CH

*  High performance

·            bandwidth- 300MHz, 200MHz, 100MHz, 60MHz 지원

·            2GSa/s sampling rate

·            4개의 analog channels과 1개의 external trigger channel 지원

·            24Kpts depth memory for half channels and 12Kpts for each channel

·            8M recording length의 data recorder 기능

*  Complete connection standard

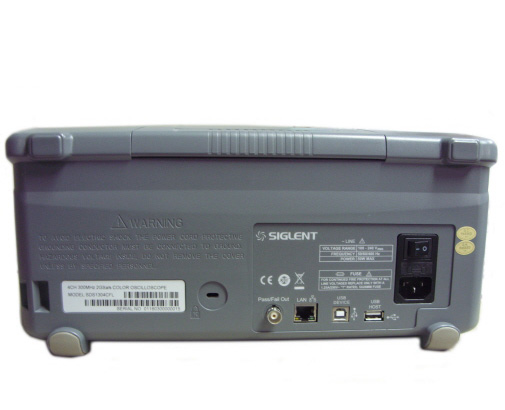

·            2개의 USB Host 단자 (front panel & rear panel) 및 1개의 USB device 단자 지원

·            PC를 이용한 remote control S/W 지원과 PictBridge printing, LAN, RS-232, Pass/Fail interface

·            LXI standard와 호환되며 SCPI programming command 지원

·            PC control S/W (EasyScope S/W)무상 제공

*  More signal display

·            64k color/ 8x18 grid 파형을 지원하는 대형 7inch wide viewing-angle TFT-LCD screen

*  More efficient

·            6 digit hardware frequency counter 기능제공

·            한 번의 key touch로 화면을 print 또는 save

·            Storage for Four reference waveforms, 20 settings, 20 internally saved  waveforms

·            5 triggers- Edge, pulse, video, slope, alternative

·            4 saved types- setup data, waveform data, interface bitmap, CSV document

·            unique digital filtering and waveform recording function

·            real time display date and time

·            한국어를 포함한 12개국어의 online help 기능
