Agilent/HP E4419B Power Meter

Agilent/HP / Power Meter / E4419B

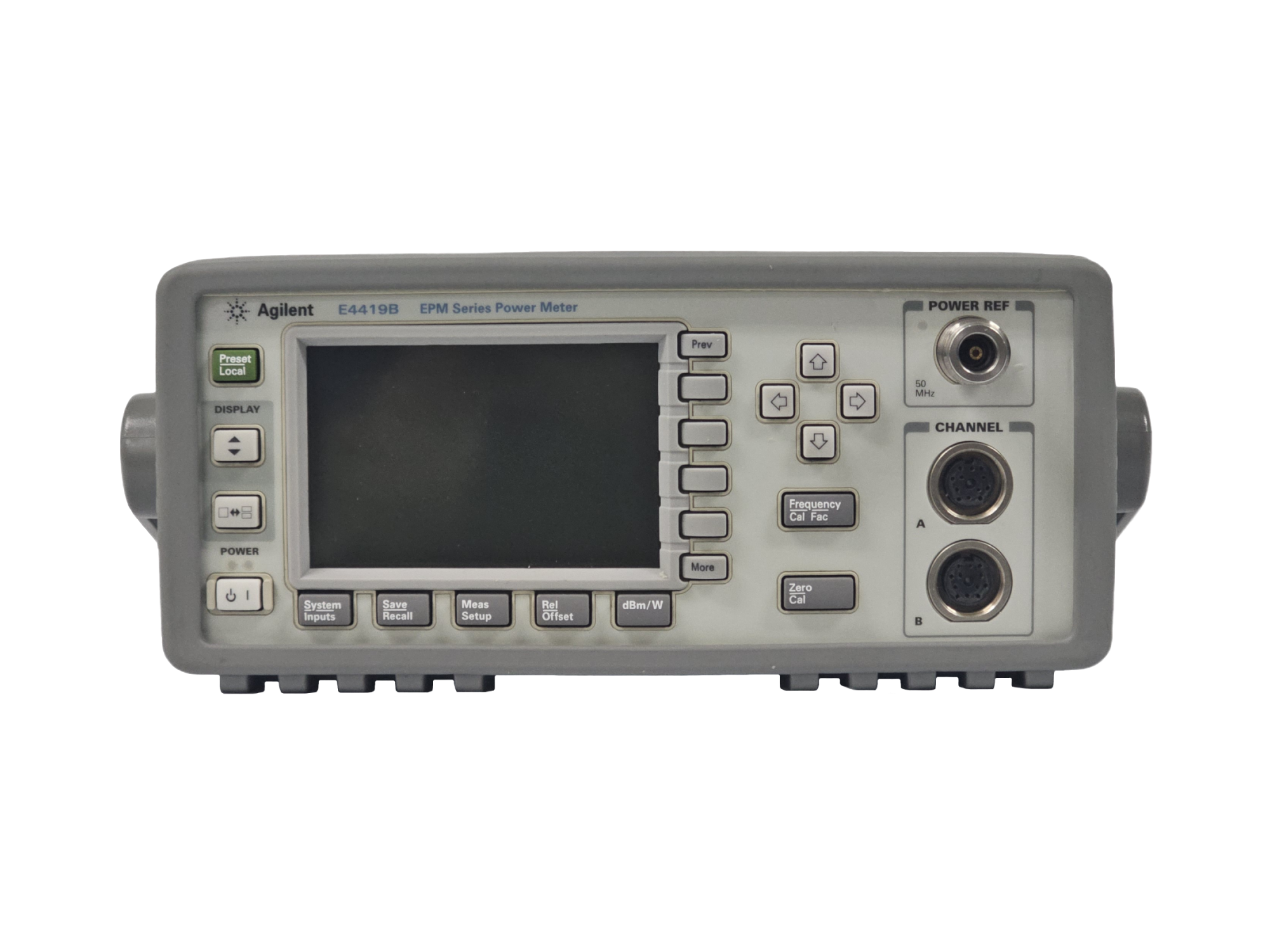

Agilent E4419B RF Power Meter, Programmable, Dual Channel

The E4419B is a high-performance, dual-channel, programmable power meter compatible with the 8480 series and the E-series power sensors (except the E9320A family). Depending upon which sensor is used, the E4419B can measure from -70 dBm to +44 dBm at frequencies from 100 kHz to 110 GHz.

Features:

• Frequency Range: 110 kHz to 110 GHz (sensor dependent)
• Power range: -70 dBm to +44 dBm (100 pW to 25 W) sensor dependent
• Resolution: to 0.001 dB
• Input capable offset
• Ten store/recall registers
• Accuracy: ±0.5% watt mode; ±0.02 dB dBm mode
• Internal 50 MHz, 1.0 mW power reference
• Backlit LCD Display

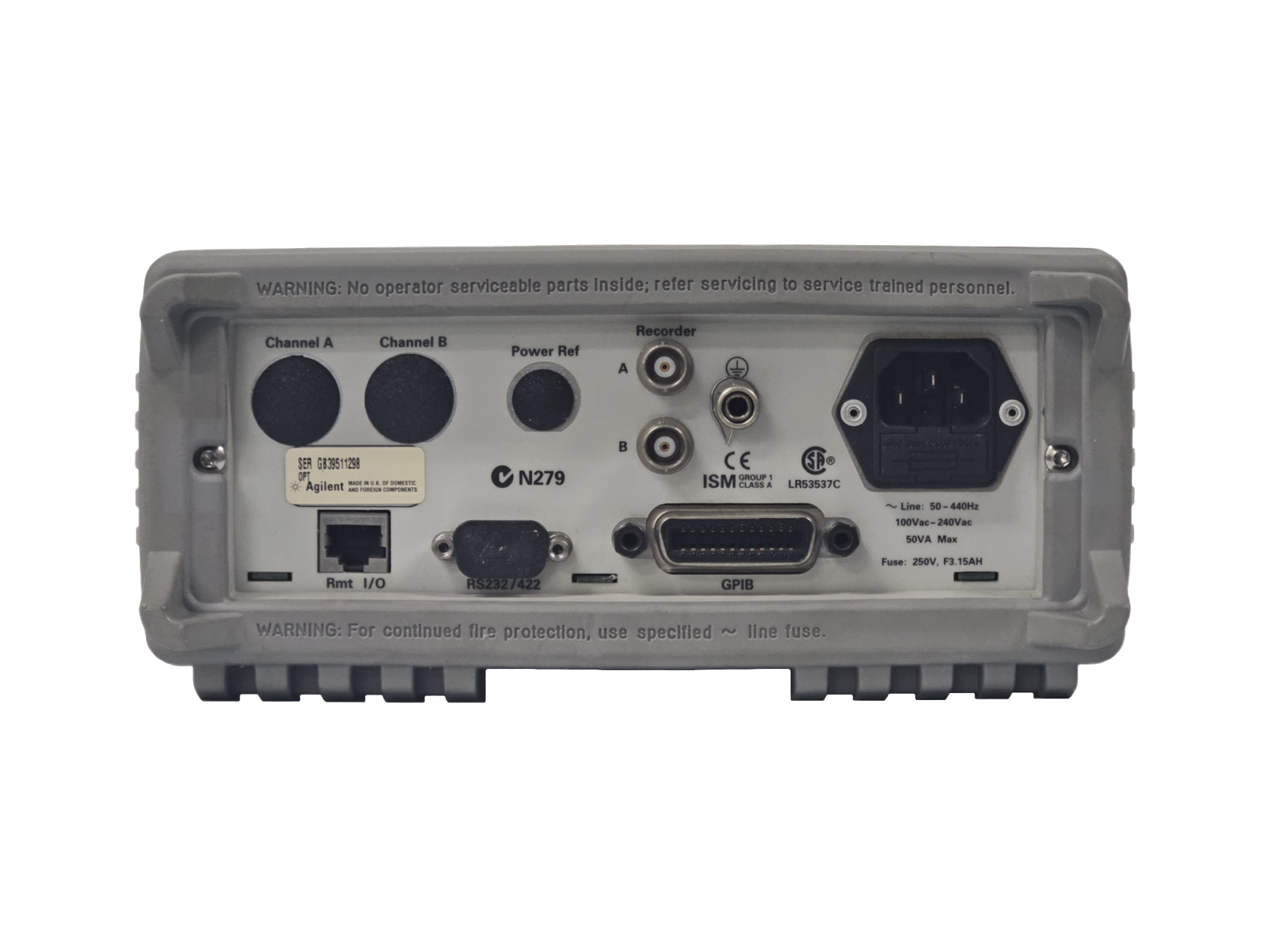

• GPIB & RS-232/442 interfaces
• Recorder output
• Automatic selection 85-264 Vac; 50-440 Hz operation
• Weight: 9 lb; Size: 89 mm (3.5 in)H x 213 mm (8.5 in)W x 348 mm (13.7 in)D

OPTION

001   Mains power and internal rechargeable battery
002   Parallel rear panel sensor input connector(s) and front panel reference c
alibrator connector
003   Parallel rear panel sensor input connectors and rear panel reference cali
brator connector
A6J   ANSI Z540 compliant calibration test data including measurement uncertain
ties
1A7   ISO17025 compliant calibration test data including measurement uncertaint
ies
