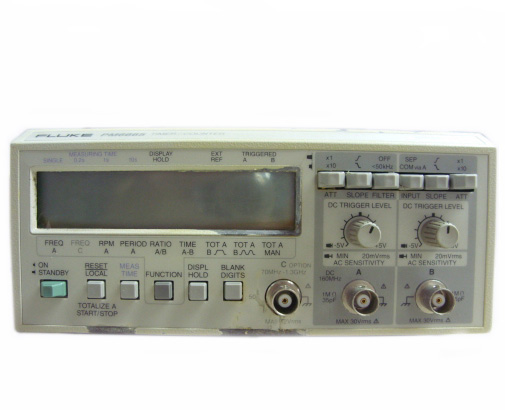

Philips PM6665 Frequency Counter

Philips / Frequency Counter / PM6665

Fluke - Precision PM6665 General Information
Product Description:
160 MHz Programmable Timer/Counter
Fluke - Precision PM6665 Performance Characteristics
Form Factor  Benchtop
Number of Channels  2 ch
Minimum Frequency, Ch. 1  0.1 Hz
Maximum Frequency, Ch. 1  160 MHz
Input Attenuation, Ch 1  x1,x10
Input Coupling, Ch 1  AC,DC
Minimum Frequency, Ch. 2  0.1 Hz
Maximum Frequency, Ch. 2  16 MHz
Input Attenuation, Ch 2  x1,x10
Input Coupling, Ch 2  AC,DC
Time base stability  0.000005 /yr
Trigger Source  Internal
Fluke - Precision PM6665 Measurements/Features
300 MHz basic input range;options for 1.3 GHz, 2.7 GHz,4.2 GHz or 4.5 GHz
Ultra High Stability Oven: upto 5 x 10-9within 10 min
Battery supply in combinationwith Ultra High Stability Ovenfor On-Site calibrati
on
Displays 10 digits in a second
Smart AUTO trigger eliminates guesswork, provides error-free measurements
Analog Bar Graph displays signal strength and input sensitivity to assist instru
ment setup and RF tuning
Fluke - Precision PM6665 Programmability/Connectivity
User Interface Proprietary
Fluke - Precision PM6665 Compliance
CE Compliance  Compliant
UL Compliance  Not compliant
Fluke - Precision PM6665 Power Requirements
Input Power  USA (110V/60Hz)
Fluke - Precision PM6665 Physical Dimensions
Width 7.32 in(.28 in)
Height 3.46 in(.13 in)
Length 10.63 in(.41 in)
Weight

OPTION

PM 6665/4xx / 1.3 GHz (PM 9608/201) Input Fr
 PM 6665/x3x / MTCXO (PM 9607/001) Oscillator
 PM 6665/xx3 / Battery (PM 9605/001)  $420
 PM 6665/xx6 / GPIB/IEEE-488 (PM 9604/001)
