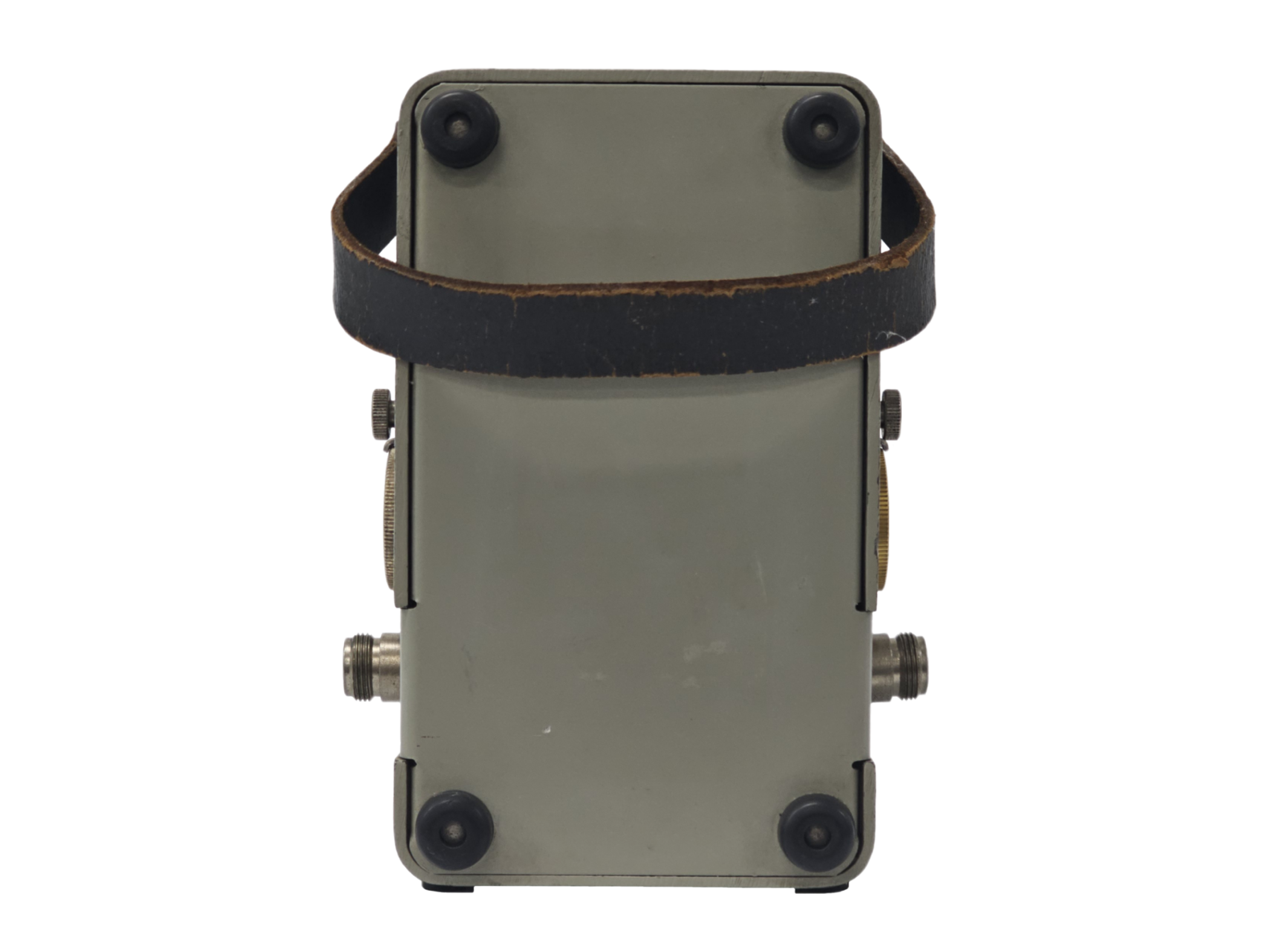

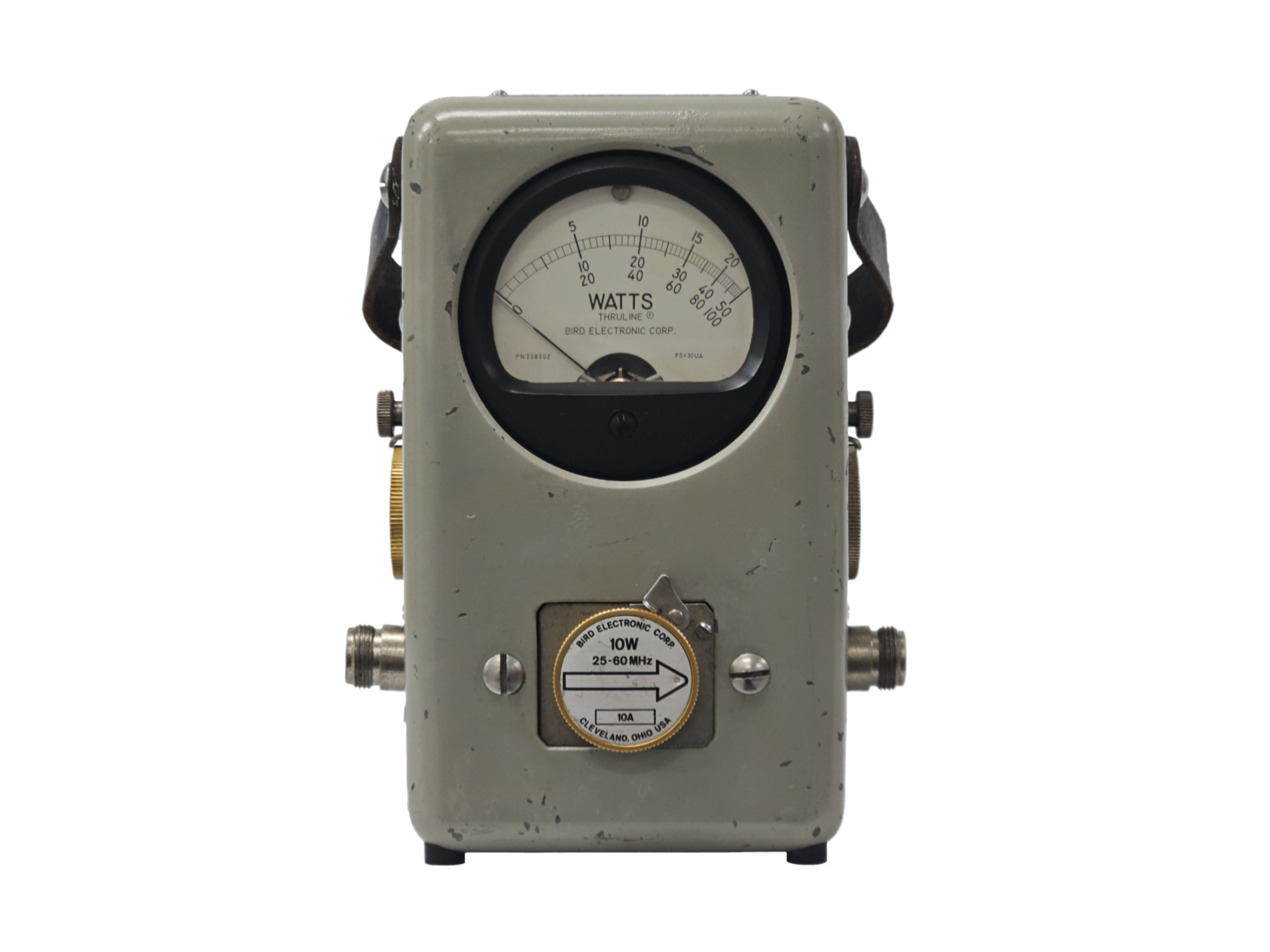

Bird 43 Watt Meter

Bird / Watt Meter / 43

Item Name General Purpose Wattmeter Power Range 100 mW to 10 kW (using Bird® Plug-in Elements) Frequency Range 450 kHz - 2.7 GHz (depending on element) Insertion VSWR 1.05 max. to 1000 MHz (with N Connectors) Accuracy ± 5% of full scale Connectors QC Type (Female N normally supplied) Finish Light Gray Powder Coat Dimensions (H x W x D) 6-7/8" x 5-1/8" x 3-5/8" 175 x 130 x 92 mm Weight 3 lbs. (1.4 kg)
