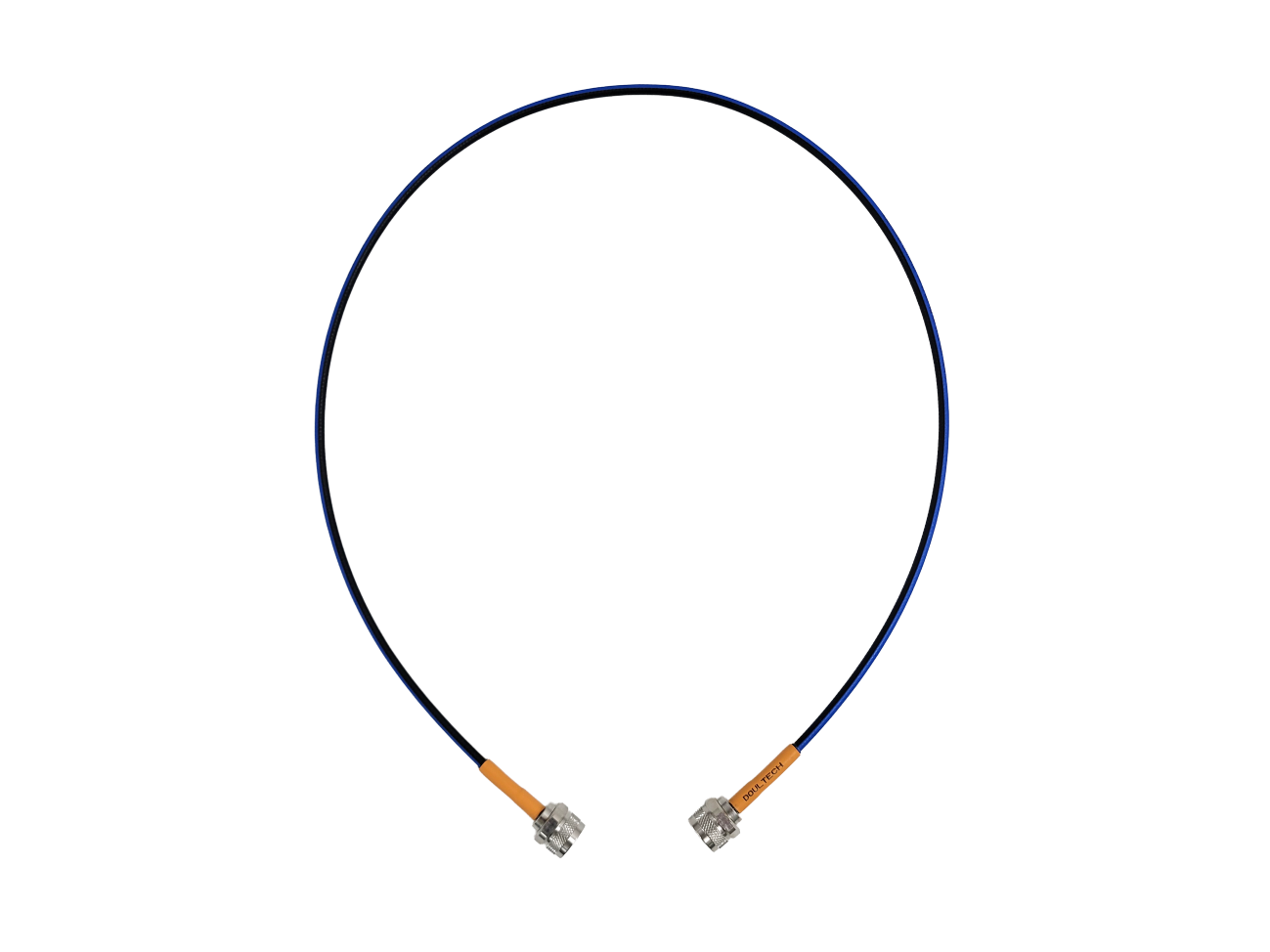

Doultech / Cable / EF400/2*11N/1000
N(m)-N(m) /m당 \8,000 + EF400 spec Operating Frequency ≤ 6 GHz Nom. attenuation Values and graph see below Coefficient a 0.4020 Coefficient b 0.1420 CW Power Values and graph see below 225 W Impendance 50 ± 2 Ω Capacitance 94 pF/m Propagation velocity 70.30 % of c Signal delay 4.74 ns/m Phase stability vs. Temp. (abs./rel.) -40 100 Phase stability vs. bending (abs.) 0.50 360 40 Insulation resist > 10000000 MΩm Test Voltage 5 kVrms Operating Voltage at sea level 2.50 kVrms Inner Cond Res DC typical 29.45 Ω/km Outer Cond R. DC typical 7.60 Ω/km


OPTION

Product Info

  • Manufacturer : Doultech
  • Product : Cable
  • Model : EF400/2*11N/1000
  • Link : none
  • Tel Service : 02-3666-6341
  • UserPrice : ₩22,000
  • RentalPrice :₩3,700
