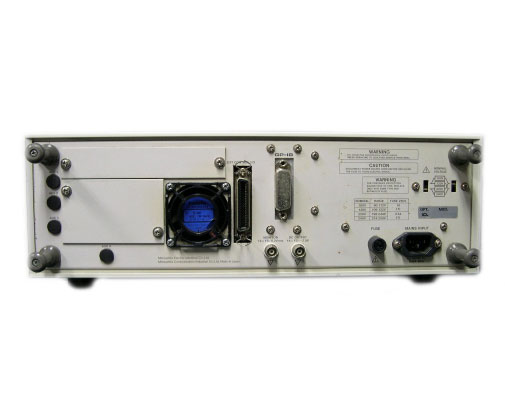

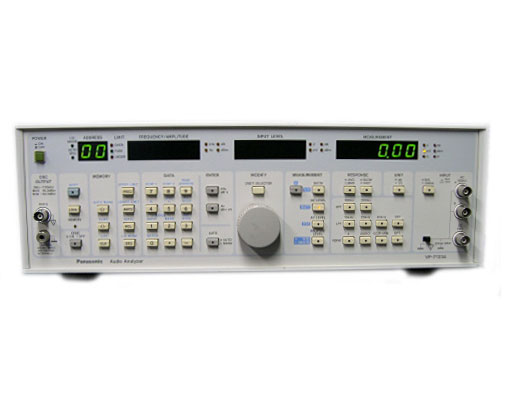

Panasonic / Audio Analyzer / VP-7723A

Audio Analyzer

(Oscillator)
주파수 Range : 5Hz ~ 110KHz 4 Range
출력 Level : 16.2~ -83.7dBm (600Ω Bal), 14.00~ -85.9dBV
출력 Impedance : 600Ω
DISTORTION : <0.01%(-80dB)/<0.001%(-80dB)

(Analyzer)
입력부
입력 Channel : 1 Channel
입력 Impedance : 100 KΩ (A, B, A&B Select)
측정부
AC Level : 100.0/31.6/3.160/316.0/31.60/3.160/0.316mV
DC Level : 100.0/31.60V/3.160V AND 3.16mV
Distortion : 31.6/10.00/1.000/0.1000/0.01000%
S/N : 30uV~100Vrms/0~130dB

OPTION
