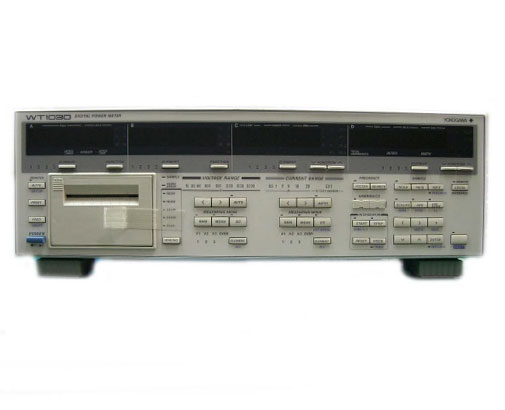

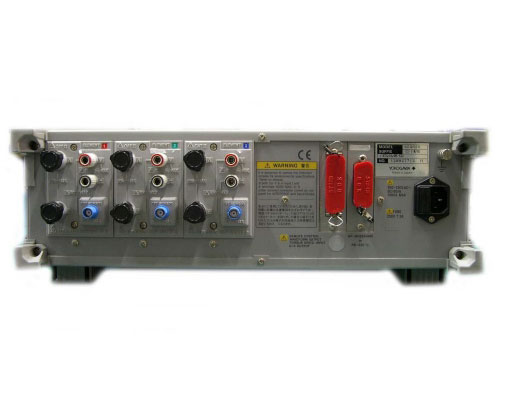

Yokogawa / Digital Power Meter / WT1030

-Rated inputs(ranges,rms)

*Voltage : 15/30/60/100/150/300/600/1000 V
*Current :

    Direct input : 0.5/1/2/5/10/20 A

    External input(optional) : 250/500 m/

                                  1/2.5/5/10 V

-Input impedance

*Voltage : Approx. 2.4㏁,approx.13 pF

*Current :

    Direct input : Approx. 6 mΩ+approx.

                     0.07 uH

    External input : Approx. 100 ㏀

-Instaneous maximum allowable input(20 ms

for 1 cycle)

*Voltage : Peak current of 450 A,or RMS

    value of 300 A,whichever is less.

*Current : Peak current of 450 A,or RMS

     value of 300 A,whichever is less External

     input:Peak value of no more than 15 times

     the range.
