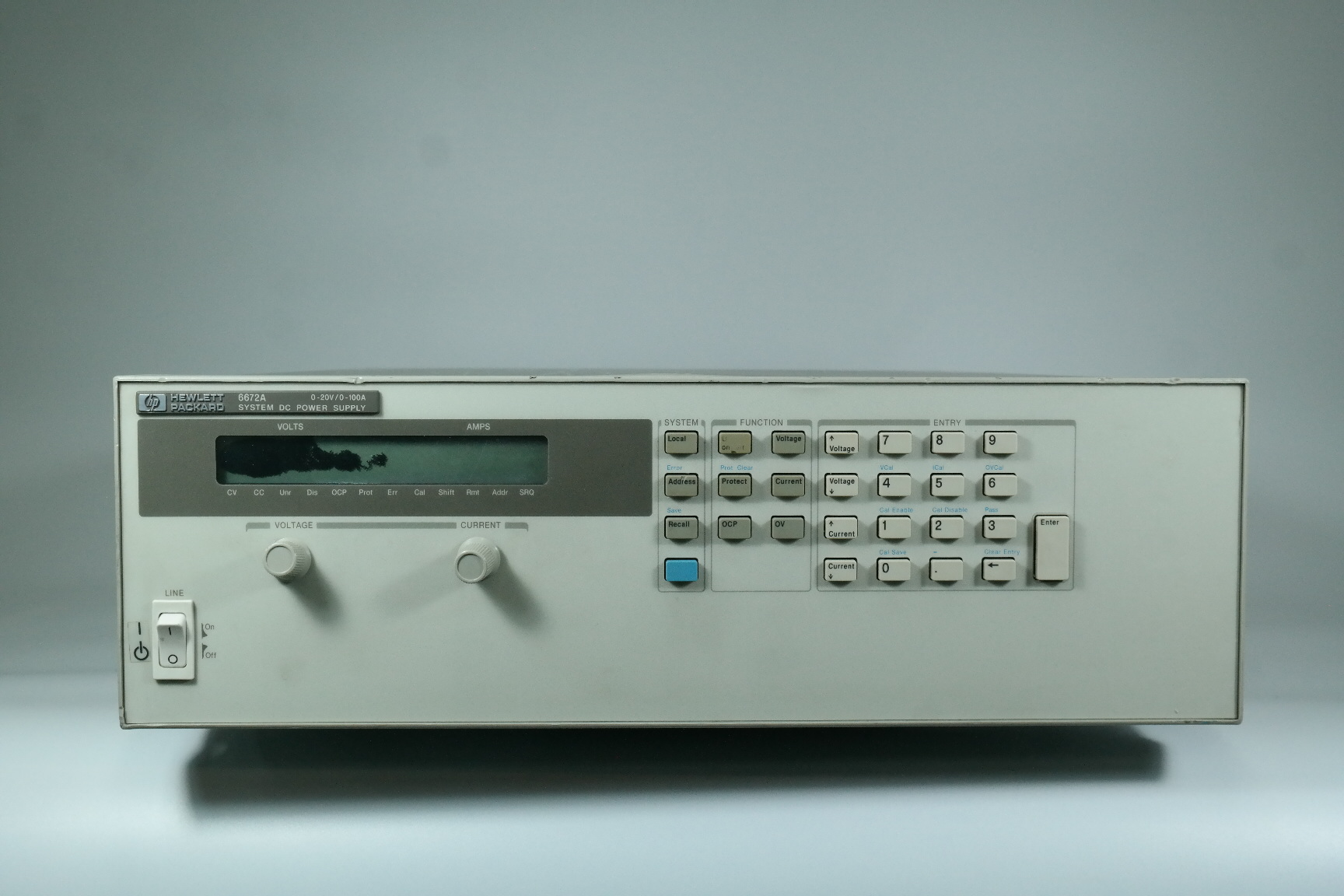

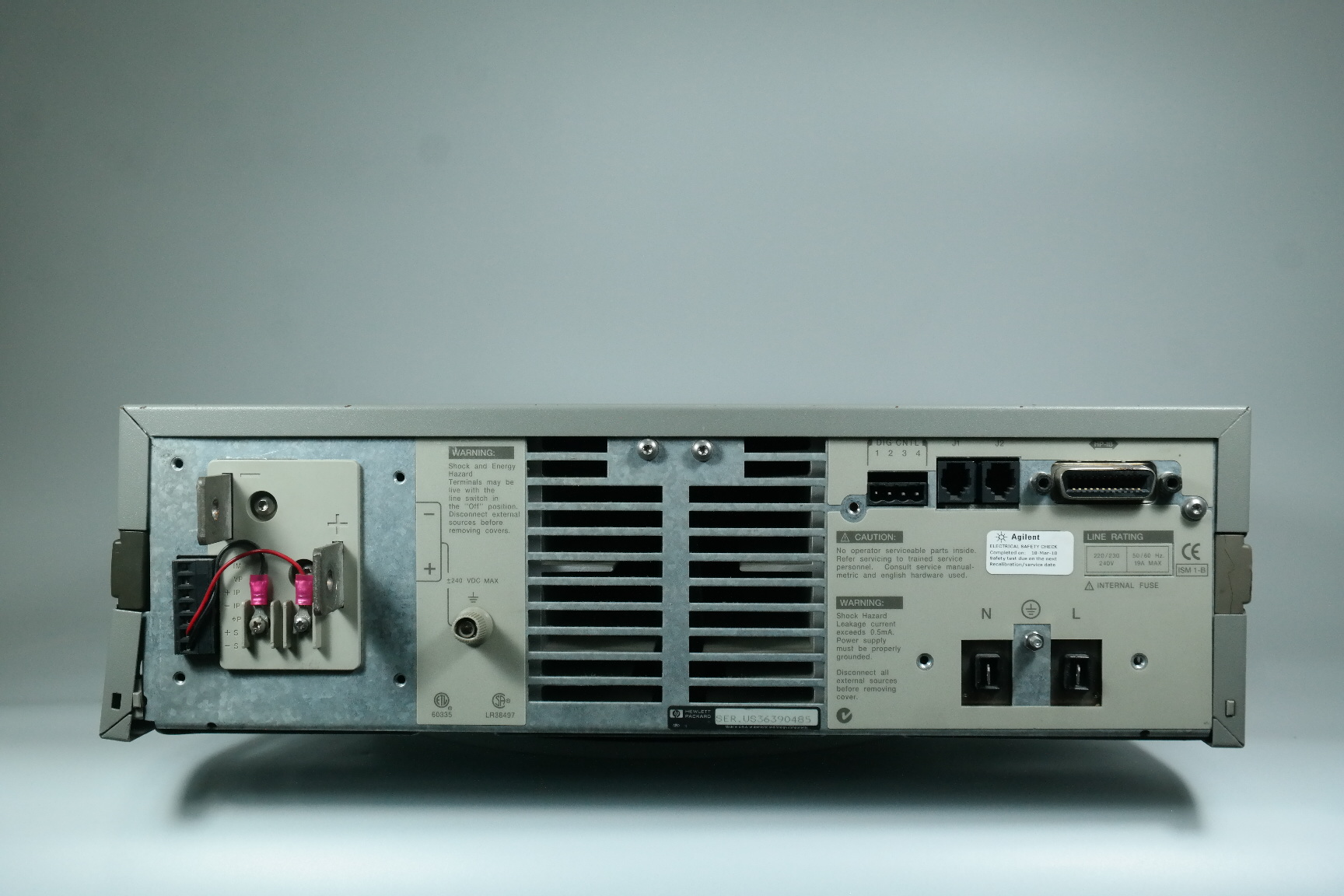

Agilent/HP / Power Supply / 6672A

System DC Power Supply, 0 to 20 Vdc, 0 to 100 A, 2000 W

Output Ratings Output voltage: 0 to 20 V

Output current (40°C): 0 to 100 A

Programming accuracy: Voltage 0.04% + 20 mV, Current Voltage 0.1% + 60 mA

Load regulation: Voltage 0.002% + 650 µV, Current 0.005% + 7 mA

Ripple & noise (rms/p-p): 750 µV / 9 mV

Auto-parallel up to five units

Outputs can be connected in series

Programmable over-voltage and over-current protection

Over-temperature protection

Discrete Fault Indicator/Remote Inhibit (DFI/RI)

Self-test occurs at power-on from an GPIB command

User definable power-on state

VXI plug & play drivers

191 to 250 Vac; 47-63 Hz operation

Weight: 62 lb; Size: 133 mm (5.25 in)H x 426 mm (16.75 in)W x 640 mm (25.2 in)D

OPTION
