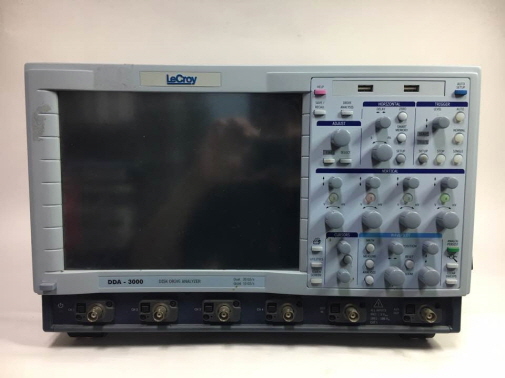

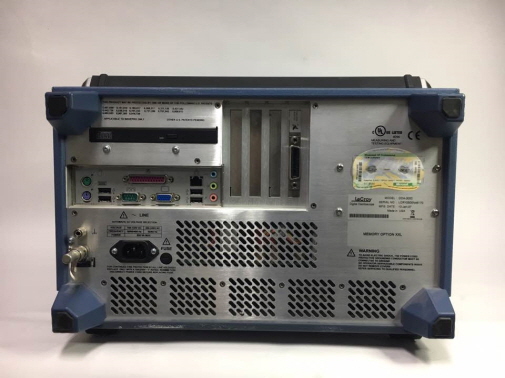

Lecroy DDA-3000 기타

Lecroy / 기타 / DDA-3000

Disk Drive Analysis (DDA) Series Oscilloscope



3 or 5 GHz bandwidth

10 GS/s sample rate/channel

20 GS/s dual-channel mode

Up to 100 Mpts in dual-channel mode

3 or 5 GHz trigger bandwidth

Intuitive front panel and touch screen interface

Zoom and Multi-Zoom on disk sectors

One-button access to Read Channel Emulation, Servo Analysis, and Disk Triggers

Head Equalization, Channel Emulation, and SAM Histograms

Segmented Memory for sector-by-sector parametric analysis

Built-in PWxx, amplitude, pulse shape, and ACSN parametric measurements

Customizable with MATLAB, Visual Basic, or Excel scripts

Flexible connectivity to networks, peripherals with 100Base-T Ethernet, and USB

DMOD math function option

OPTION
