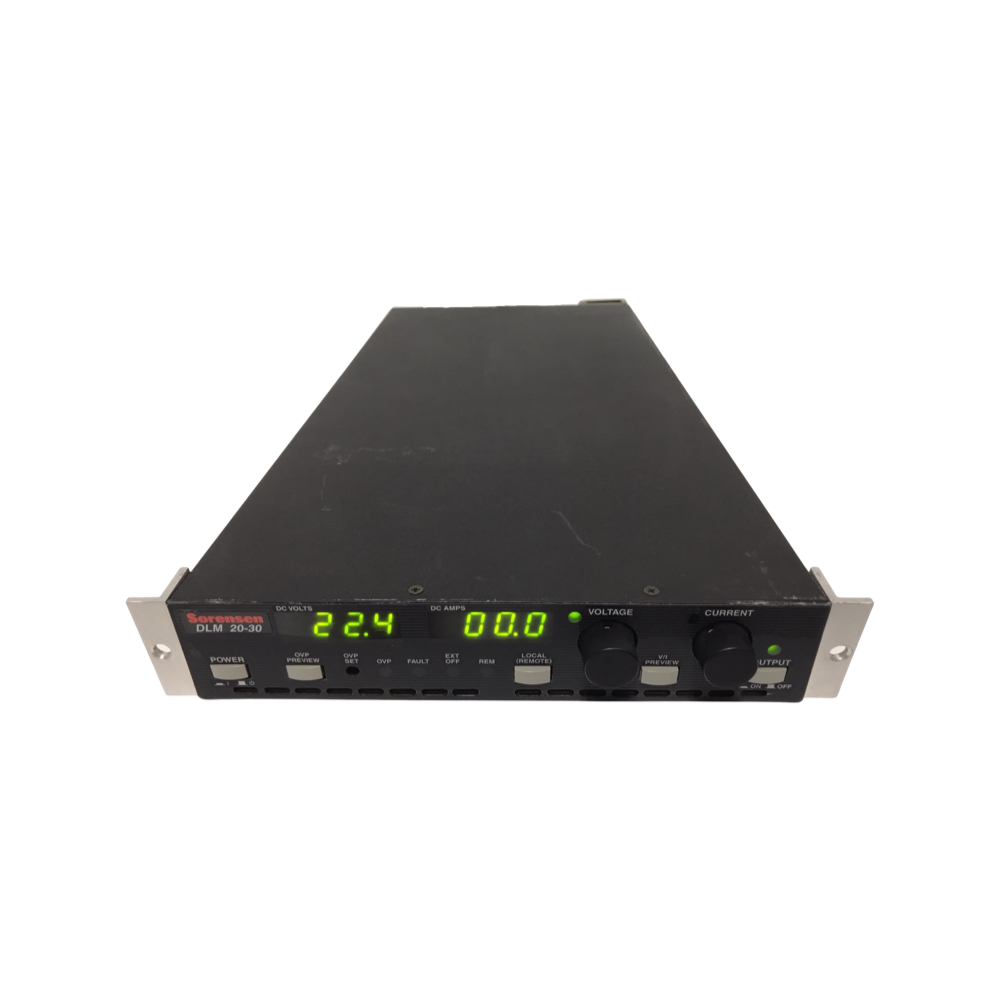

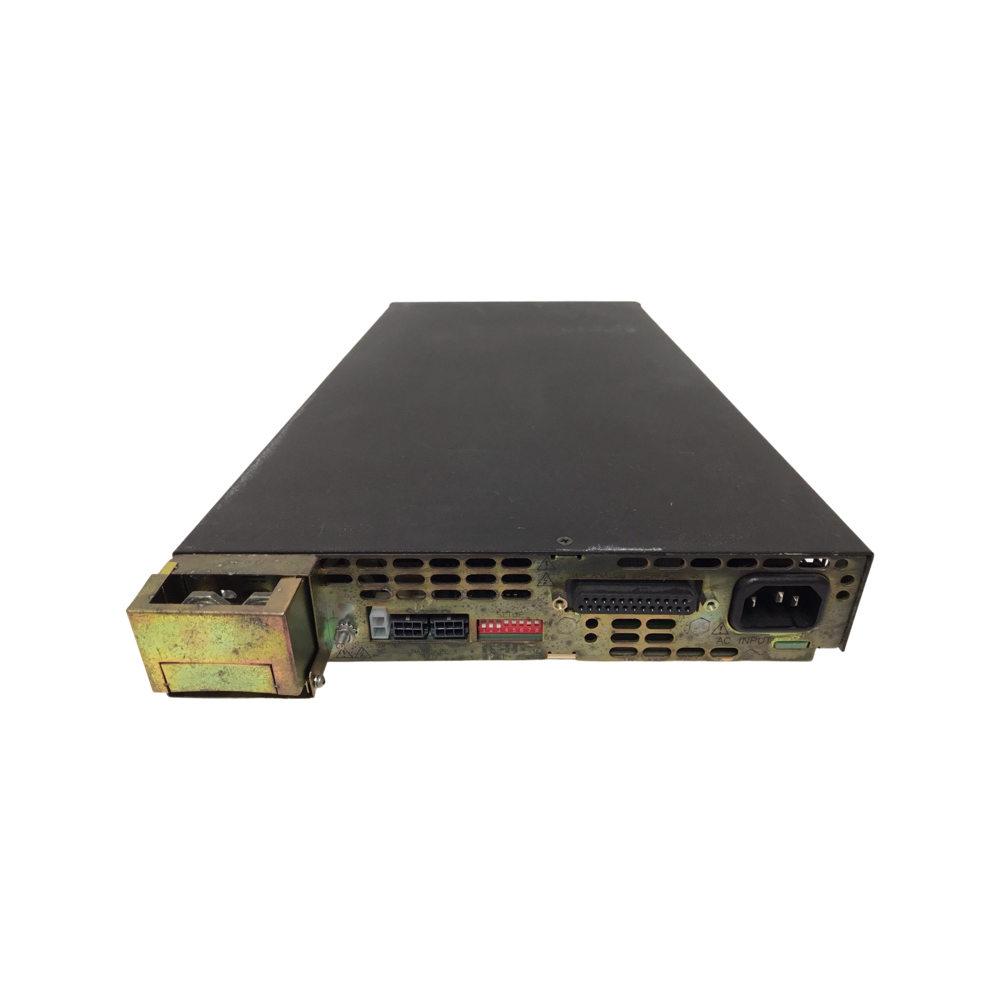

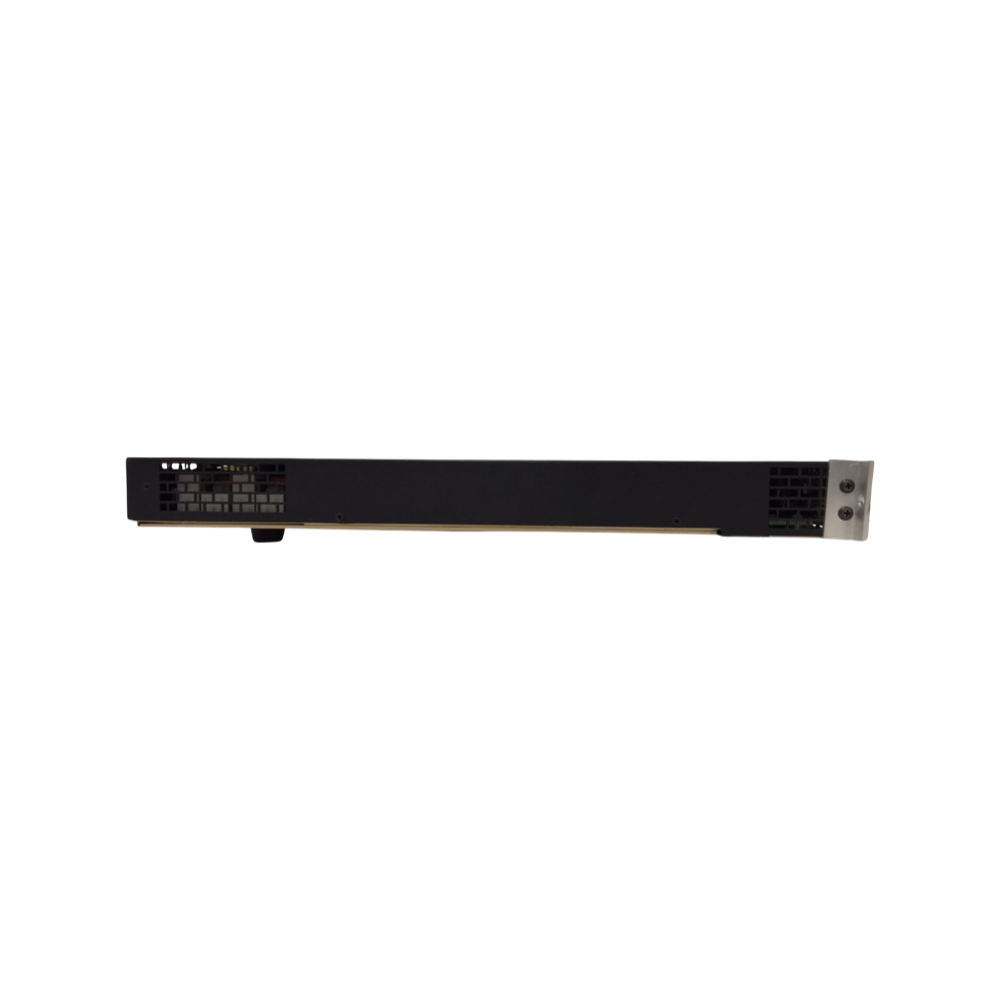

sorensen DLM20-30 Power Supply

sorensen / Power Supply / DLM20-30

•Output: 0 to 20 V, 0 to 30 A •High Power Density: 600 watts in 1U (1.75 inches) high, half rack (8.5 inches) wide; no top or bottom clearance spacing required •Near Linear Ripple & Noise Ripple as low as 2.5 mVrms, noise as low as 15 mV p-p •Remote Control •LXI Compliant Ethernet LAN / RS-232C (16 bit) •IEEE-488.2 / RS-232C (12 bit) •Standard analog programming 0-5 V, 0-10 V, or 0-5 kΩ •90-132 VAC or 180-264 VAC max, auto ranging,; 47-63 Hz; single phase operation •Weight: 9.7 lb; Size: 44 mm (1.75 in)H x 216 mm (8.5 in)W x 432 mm (17.0 in)D

OPTION
