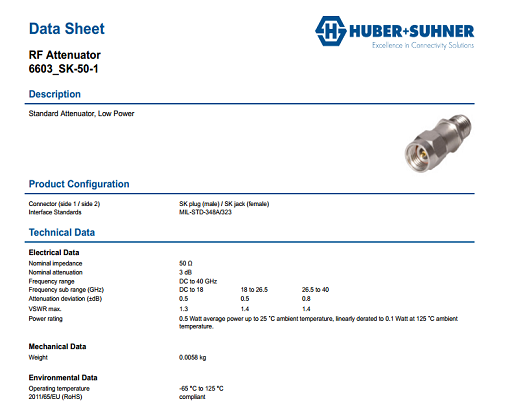

HuberSuhner / Attenuator / 6603_SK-50-1/199_NE

Interface 1:  SK
Gender 1:  plug (male)
Interface 2:  SK
Gender 2:  jack (female)
Remarks:  RF leakage min. 90 dB
Interface standard 1:  MIL-STD-348A/323
Interface standard 2:  MIL-STD-348A/323

Electrical data

Impedance:  50 OHM
Nominal attenuation:  3 DB
Atten. deviation frame ±:  0,8 DB
Frequency max. (GHz):  40
Frequency min. (GHz):  0
Return loss frame:  15,6 DB
Interface freq. min. (GHz):  0
Interface freq. max. (GHz):  18
Return loss 1:  17,7 DB
VSWR range 1:  1,3
Frequency min. 2 (GHz):  18
Frequency max. 2 (GHz):  26,5
Return loss 2:  15,6 DB
VSWR range 2:  1,4
Frequency min. 3 (GHz):  26,5
Frequency max. 3 (GHz):  40
Return loss band 3:  15,6 DB
VSWR range 3:  1,4
Atten deviation range 1 ±:  0,5 DB
Atten deviation range 2 ±:  0,5 DB
Atten deviation range 3 ±:  0,8 DB
Average power:  0,5 W
Average power to (ambient temp.):  25 °C
Power linearly derated to:  0,1 W
Power linearly derated at (ambient temp.):  125 °C
