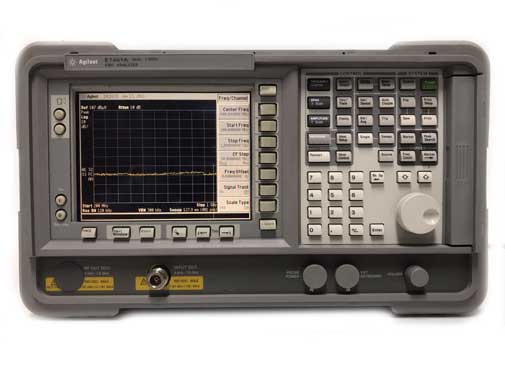

Agilent/HP E7401A/1D6/1DS/1DR/A4H/AYQ/AYX/B72 EMC

Agilent/HP / EMC / E7401A/1D6/1DS/1DR/A4H/AYQ/AYX/B72

-Frequency Range 50 Ω, 9 kHz to 1.5 GHz
-Sweep Time
Span > 0 Hz: 1 ms to 4000 s
Span = 0 Hz: 10 µs to 4000 s
Option AYX: 50 ns to 4000 s
-Resolution Bandwidth
10 Hz to 3 MHz (-3 dB) in 1-3-10 sequence
-Video Bandwidth Range 30 Hz to 3 MHz in 1-3-10 sequence
-Amplitude
Amplitude Measurement Range Displayed average noise level (DANL)
to maximum safe input level
-Maximum Safe Input Level
Average Continuous Power: +30 dBm (1 W)
Peak Pulse Power: +30 dBm (1 W)
DC: 100 Vdc
-Displayed Average Noise Level (dBm)
(Input terminated, 0 dB attenuation, sample-detector)
1 kHz RBW; 30 Hz VBW
10 Hz RBW; 1 Hz VBW
1 Hz RBW; 1 Hz VBW (Option 1D5)
-Input / Output Front Panel Connectors
Input: 50 W type N (female)(Option BAB W 50 APC 3.5 m)
RF Output: 50 W BNC (female)

OPTION
