  • Agilent/HP/Signal Generator/N5183A/1E1/1EA/1ER/520/ALB/U04/UNT/UNU
  • Agilent/HP/Signal Generator/N5183A/1E1/1EA/1ER/520/ALB/U04/UNT/UNU
  • Agilent/HP/Signal Generator/N5183A/1E1/1EA/1ER/520/ALB/U04/UNT/UNU

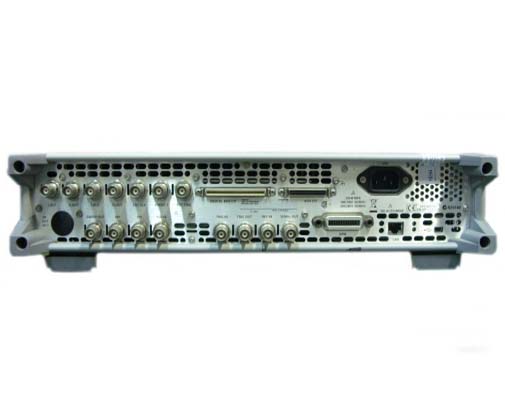

Agilent/HP / Signal Generator / N5183A/1E1/1EA/1ER/520/ALB/U04/UNT/UNU
100 kHz to 20GHz
• +18 dBm at 20 GHz output power
• ≤ 900 µs frequency switching speeds
• ≤ -98 dBc/Hz typical phase noise at 20 kHz offset
• AM, FM, ΦM, and pulse modulation
• < 10 ns pulse rise/fall time and 20 ns pulse widths
• Digital and step sweep
• 100BaseT LAN, USB 2.0 and GPIB
• LXI class-C compliant
• SCPI and IVI-COM drivers
• Backward compatible with PSG, 8340, 8360 and 8370 Series signal generators
OPTION

1E1 Step Attenuator 1EA High power 1ER Flexible reference input (1 to 50 MHz) UNU Pulse modulation UNT AM, FM, phase modulation

Product Info

  • Manufacturer : Agilent/HP
  • Product : Signal Generator
  • Model : N5183A/1E1/1EA/1ER/520/ALB/U04/UNT/UNU
  • Link : none
  • Tel Service : 02-3666-6341
  • File-1 : none
  • File-2 : none
  • File-3 : none
  • UserPrice : ₩26,000,000
  • RentalPrice :₩2,500,000
