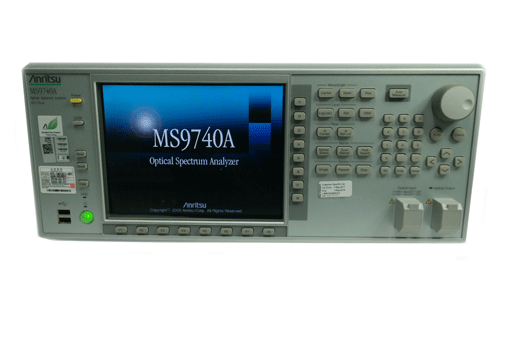

Anritsu / Optical Spectrum Analyzer / MS9740A/001/037

Applicable optical fiber : 10 μm/125 μm SM fiber (ITU-T G.652), 50 μm/125 μm GI fiber Optical connector : User replaceable: FC, SC, ST, DIN, LC Wavelength measurement range : 600 nm to 1750 nm Wavelength accuracy : ±20 pm (1520 nm to 1620 nm, Resolution: 0.03 to 0.2 nm) ±100 pm (1520 nm to 1620 nm, Resolution: 0.5, 1.0 nm) Setting resolution : 0.03, 0.05, 0.07, 0.1, 0.2, 0.5, 1.0 nm (RBW: 3 dB optical filter: transmission bandwidth) Maximum input power : +23 dBm (Optical ATT: On) Dynamic range : High dynamic range: 60 dB (0.4 nm from peak wavelength) Normal dynamic range : 58 dB (0.4 nm from peak wavelength) [Resolution: 0.05 nm, 1550 nm, Optical ATT: Off, 20° to 30°C] Sweep Sweep width: 0.2 nm to 1200 nm, 0 nm Sweep speed: ≤0.2 sec. (Span 5 nm) [Resolution: 0.1 nm, VBW=10 kHz, Normal dynamic range, center 1550 nm, sweep start t o stop, no optical input, sampling point: ≤501] Dimensions and Mass : 426 (W) × 177 (H) × 350 (D) mm (excluding projections) ≤15.0 kg (without option)

OPTION

MS9740A-001	GPIB Interface
MS9740A-009	Multimode Fiber Interface (50/62.5 μm)
MS9740A-037	FC Connector
MS9740A-038	ST Connector
MS9740A-039	DIN 47256 Connector
MS9740A-040	SC Connector
